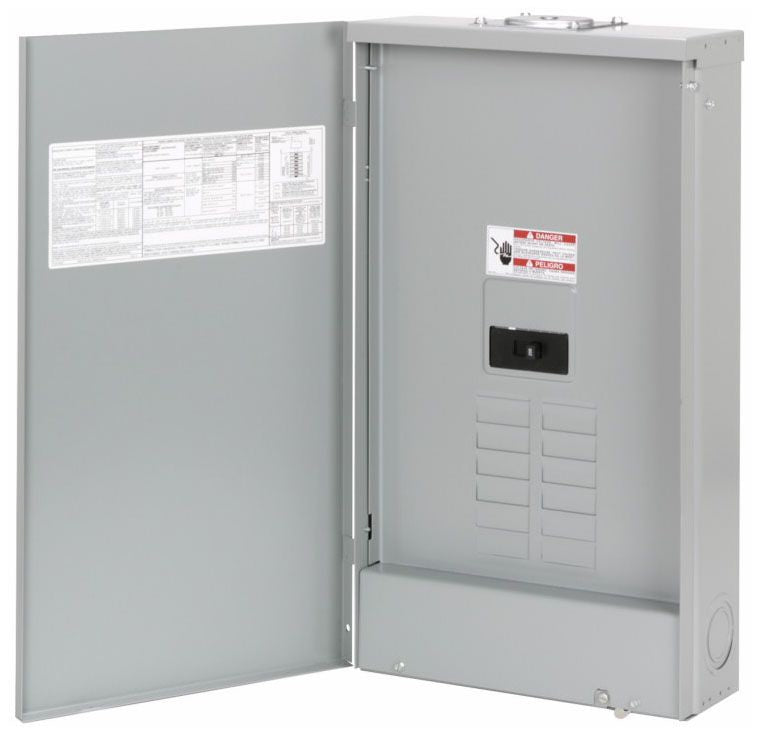

EATON BRP08B200RF Type BR Single-Phase Plug-on Neutral Main Circuit Breaker Load Center, 200 Amp, 8 Space/16 Circuit

Product Description

The EATON BRP08B200RF is a single-phase plug-on neutral main circuit breaker load center with a capacity of two hundred amps. This unit is designed for indoor and outdoor applications, featuring a NEMA three R enclosure to protect wiring and circuits from the elements. With eight spaces and the ability to handle sixteen circuits, this load center allows for efficient power distribution.

• Houses branch circuit breakers for individual circuit power distribution.
• Compatible with various wire sizes ranging from four to one aught AWG.
• Rated with a ten kA interrupt capacity for reliable safety.

Product Highlights

The EATON BRP08B200RF combines durability and versatility, making it suitable for both residential and light commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: BRP08B200RF

Technical Specifications

• Type: 1-Phase Rainproof
• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Number of Poles: 1
• Enclosure Type: NEMA 3R
• Number of Spaces: 8
• Number of Circuits: 16
• Dimensions: 3.88 in L x 14.31 in W x 25 in H
• Housing Material: Galvanized Steel
• Mounting Type: Plug-On
• Interrupt Rating: 10 kA
• Wire Size: 4 to 1/0 AWG
