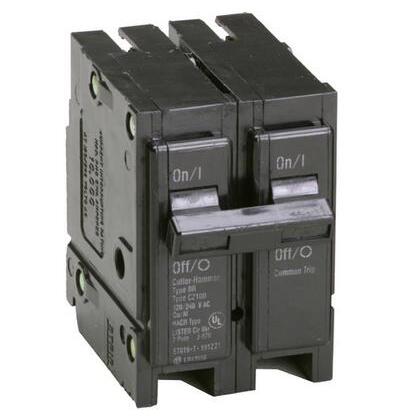

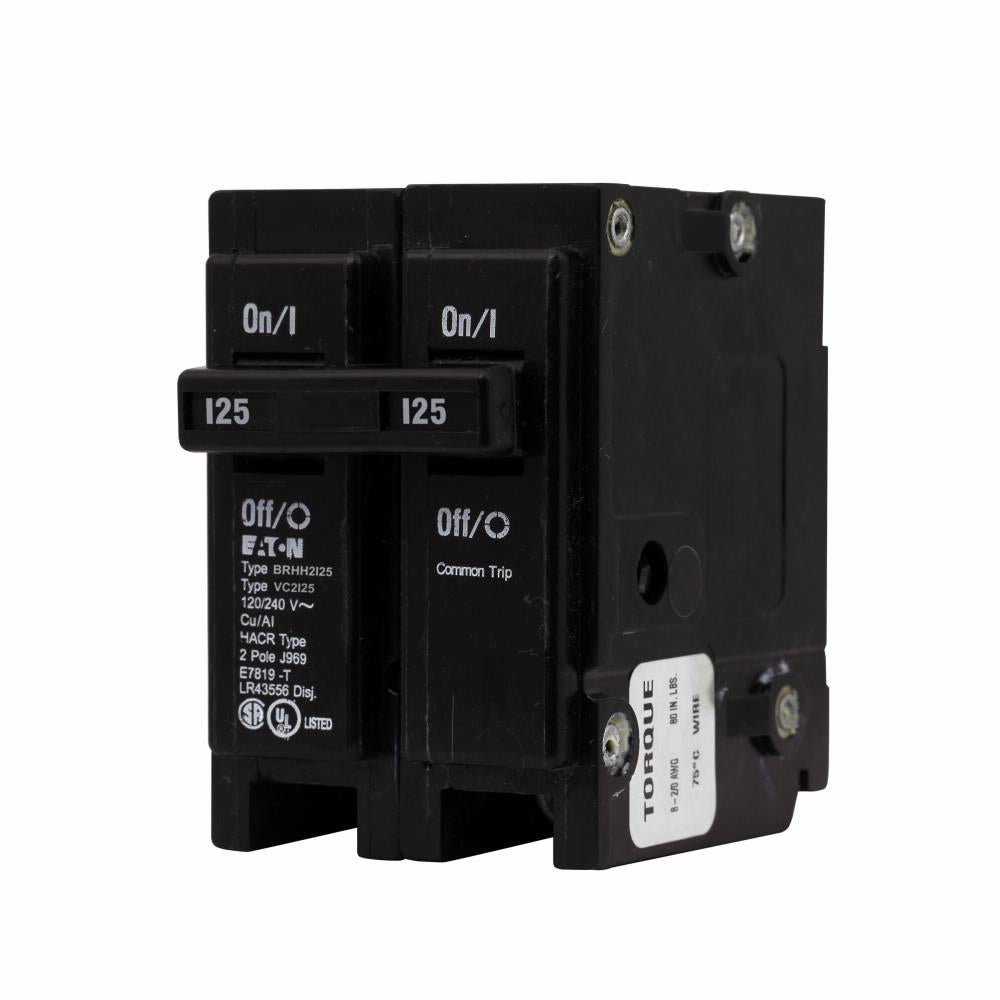

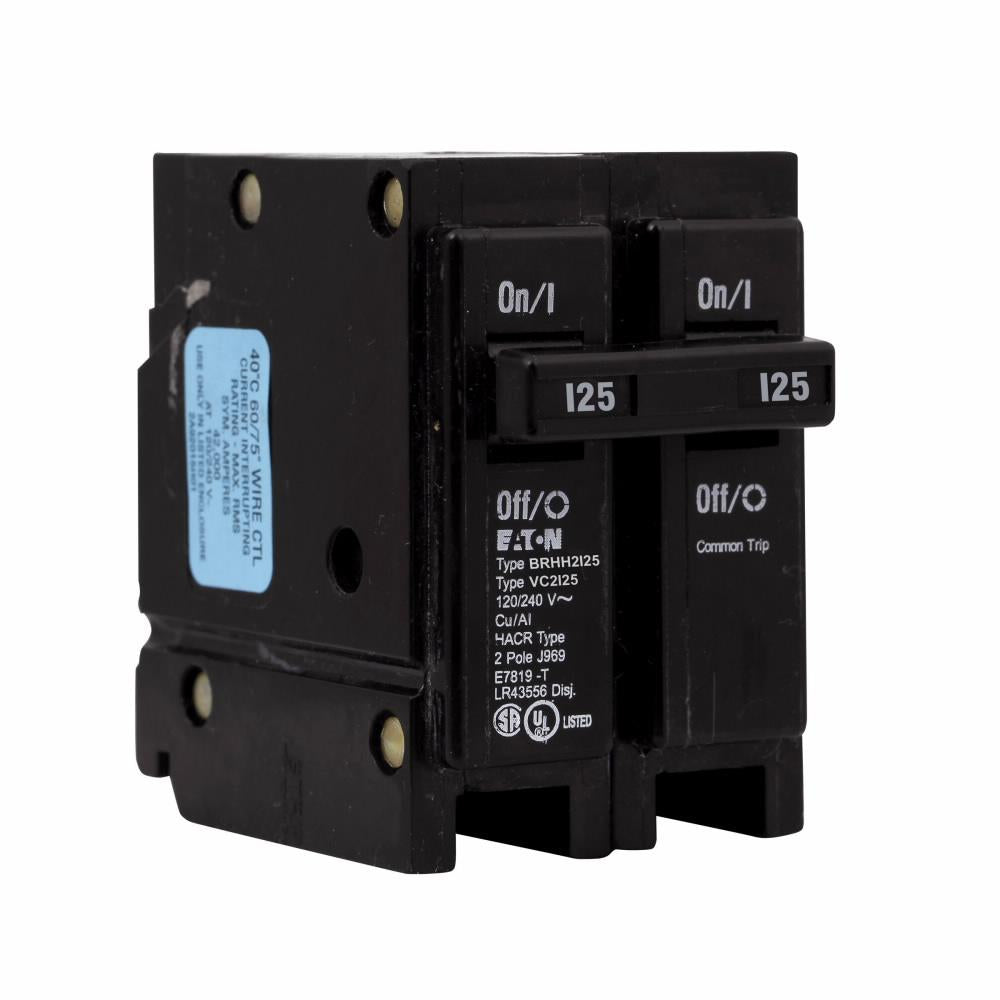

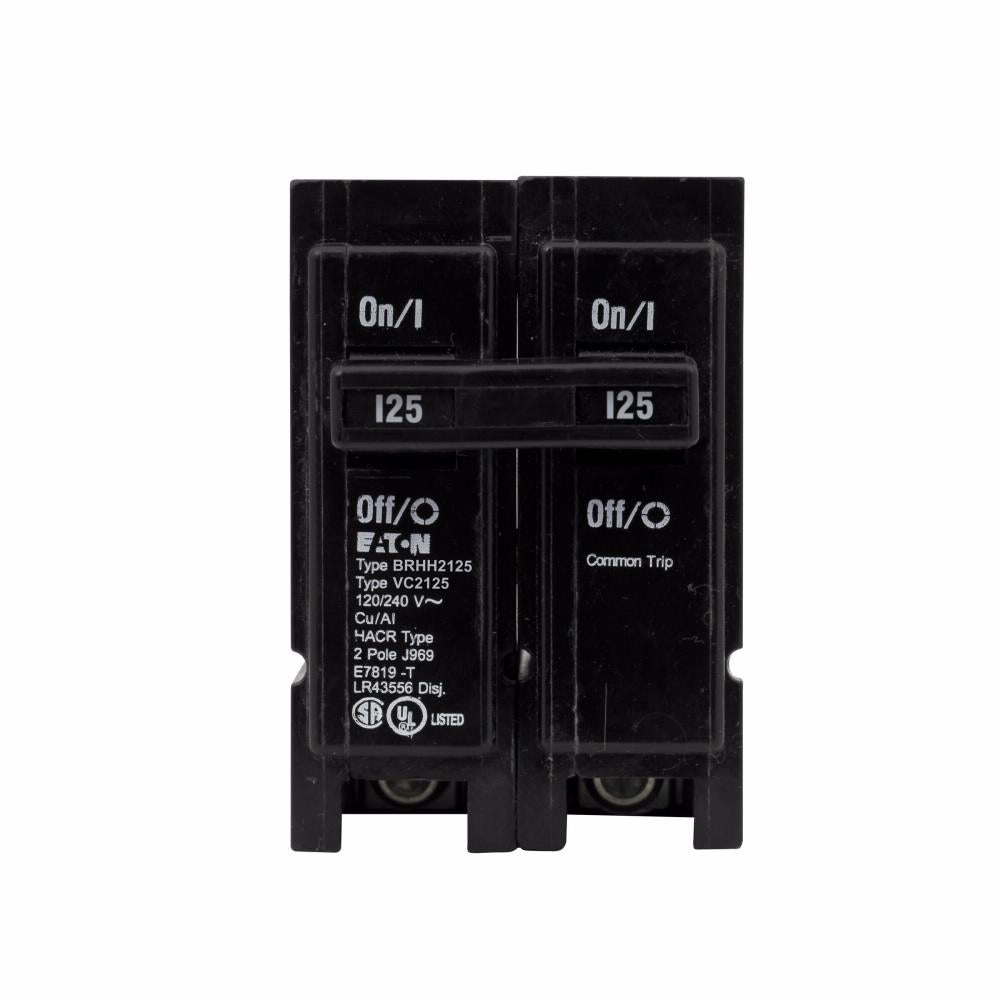

Eaton BRHH2125 BR Thermal Magnetic Circuit Breaker 125A

Product Description

The EATON BRHH2125 is a type BR plug-in circuit breaker that can be used as a main or branch disconnect device. This thermal magnetic circuit breaker provides overload and short circuit protection via thermal and magnetic sensors. It is enclosed in a molded case of thermoset material and has terminals listed for use with copper/aluminum conductors.

• Provides inverse time delay overload and instantaneous short circuit protection
• Calibration is not affected by environmental changes in relative humidity
• Terminals meet UL 486B requirements and are suitable for use with 60 or 75 deg C wire

Product Highlights

The Eaton BR thermal magnetic circuit breaker is a reliable solution for residential and light commercial applications, ensuring electrical system safety and efficiency.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BRHH2125

Technical Specifications

• Actuator Type: Handle
• Connection Type: Box Lug/Clamp
• Frequency Rating: 60 Hz
• Material: Thermoset
• Mounting Type: Plug-On
• Phase: 1 ph
• Temperature Rating: 40 deg C
• Type: Type BR 1-Inch plug-on circuit breaker
• Wire Size: 4 to 2/0 AWG
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Interrupt Rating: 42 kA
• Number of Poles: 2
• Trip Type: Common/Thermal Magnetic
• Product Name: Eaton BR thermal magnetic circuit breaker
• Catalog Number: BRHH2125
• UPC: 786676377003
• Product Length/Depth: 3 in
• Product Height: 3 in
• Product Width: 2 in
• Compliances: Federal Specifications Classification W-C376
• Certifications: UL 490
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Circuit breaker type: BR
• Mounting Method: Plug-on
• Main circuit breaker: BRH
• Wire size: #4-2/0 AWG Cu/Al
• Poles: 2
• Volts AC: 120, 240
• Family / Style: BR
• Interrupt Rating AC: 42 kA
• Amp Rating: 125 Amp
• Wire Size Compatibility: 4-2/0 AWG Copper or Aluminum
• Application: Compatible with Type BR Loadcenters
