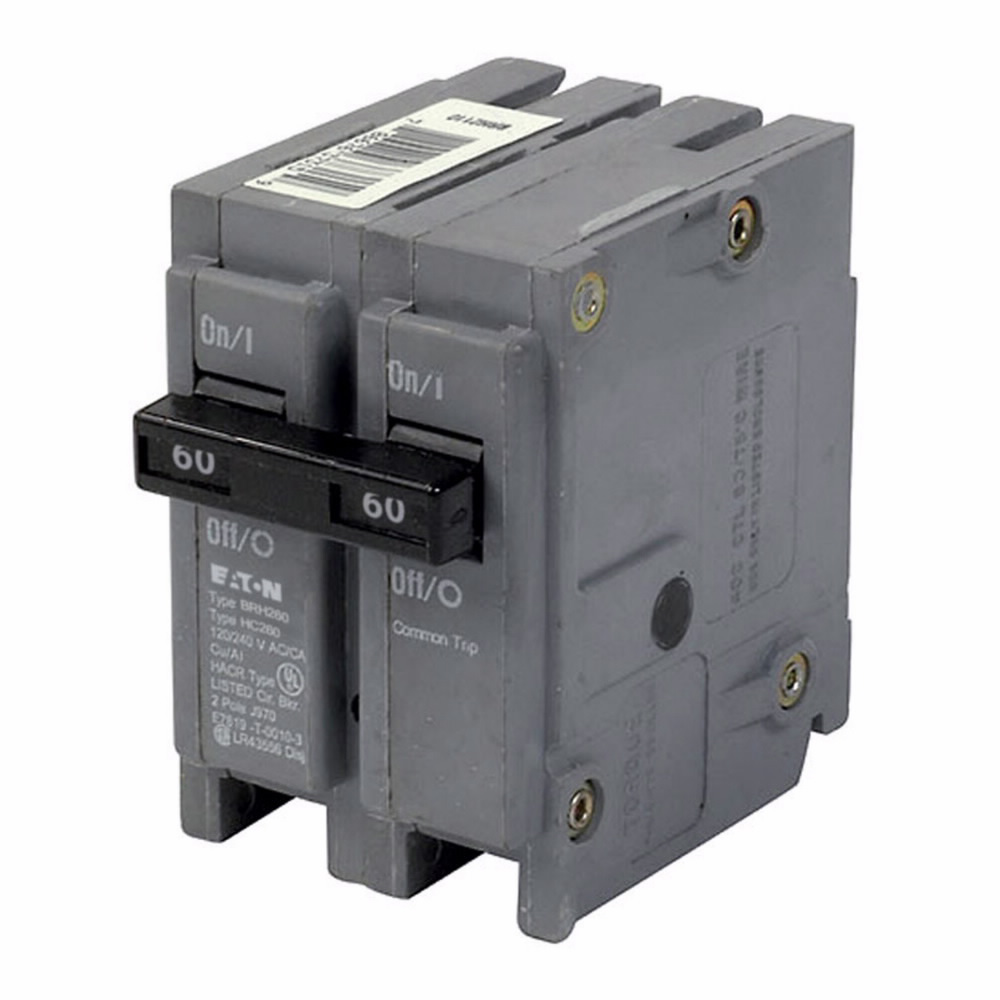

Eaton BRH260 1 Inch Type BR Plug-On Circuit Breaker 60 A 22 kAIC

Product Description

Eaton BRH260 is a thermal magnetic circuit breaker designed to fit in BR-style load centers. This breaker features a two-pole design for use in 120/240V applications. It has a current rating of sixty amperes and a short circuit interrupt rating of twenty-two kiloamperes. It is suitable for wire sizes ranging from four to one aught AWG copper or aluminum.

• Use in residential load centers
• Suitable for thermal and magnetic trip applications
• Compatible with BR-style load centers

Product Highlights

This circuit breaker is designed for safety and reliability in power distribution systems, suitable in homes and commercial settings. It provides overload and short circuit protection, ensuring electrical safety.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: BRH260
• Voltage Rating: 120/240 V
• Current Rating: 60 A
• Trip Type: Common Breaker Trip
• Number of Poles: 2
• Interrupt Rating: 22 kAIC
• Wire Size: 4 to 1/0 AWG Cu/Al
• Dimensions: 2 inches length x 2.9 inches width x 2.5 inches height
• Weight: 0.7 lb
