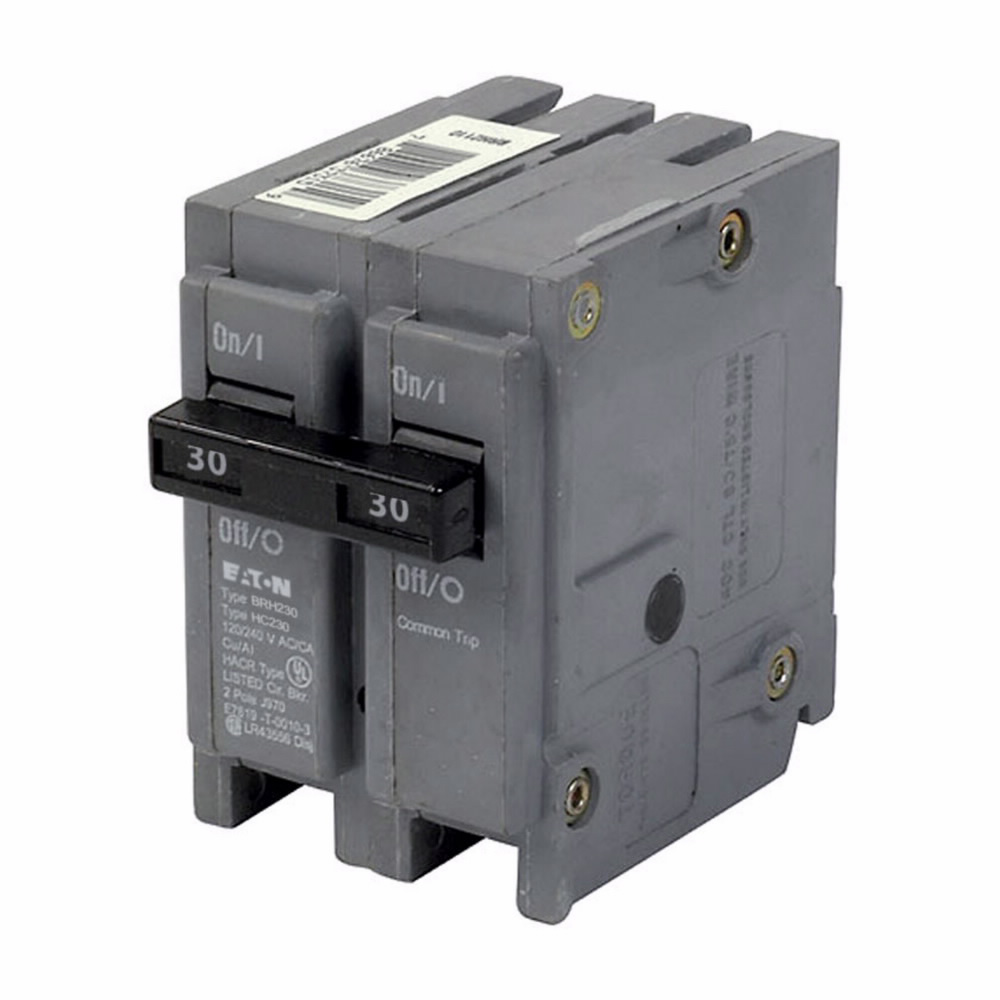

Eaton BRH230 ETN BR 30A/2 Pole Com. Trip

Product Description

The Eaton BRH230 is a thermal magnetic circuit breaker designed for residential load centers and panelboards. This Type BR breaker features a two-pole configuration with a current rating of thirty amps and operates at a voltage of one hundred twenty to two hundred forty volts. It has a high-magnetic trip mechanism suitable for various applications including renewable energy systems and datacenters.

• Amperage rating: thirty amps
• Voltage rating: one hundred twenty to two hundred forty volts
• Interrupt rating: twenty-two kAIC

Product Highlights

The Eaton BRH230 provides reliable protection in electrical systems, ensuring safety and efficiency. It is compatible with BR loadcenters and can be used in multiple configurations.

Product Information

Standard Information

• Brand: Eaton
• MPN: BRH230

Technical Specifications

• Catalog Number: BRH230
• Number of Poles: 2
• Interrupt Rating: 22 kAIC
• Voltage Rating: 120/240 V
• Amperage: 30 Amp
• Wire Size: 14-4 AWG
• Length: 3 inches
• Width: 2 inches
• Height: 3 inches
• Weight: 0.6 lb
