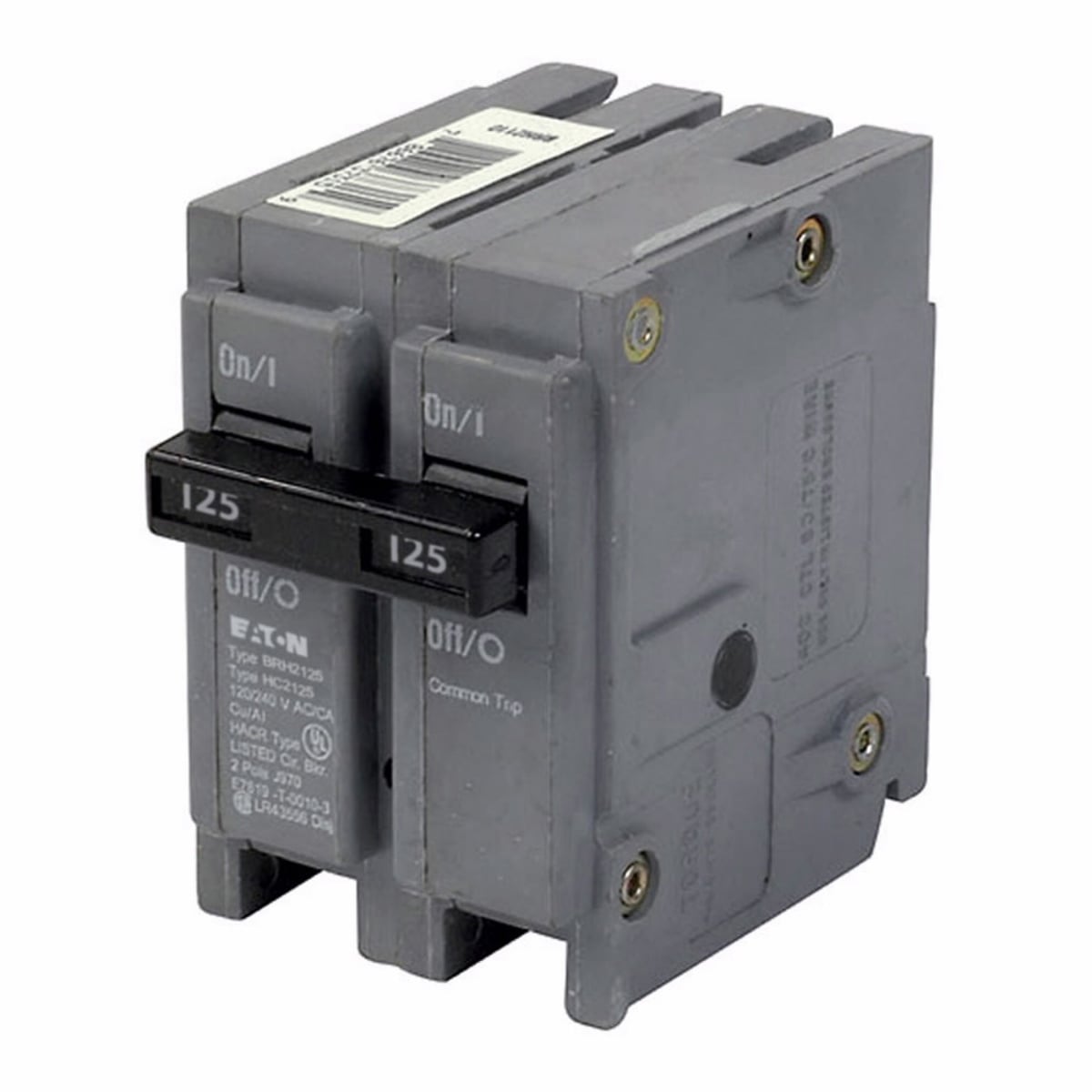

Eaton BRH2125 1 inch Type BR Plug-On Circuit Breaker 125 A

Product Description

The Eaton BRH2125 is a thermal magnetic circuit breaker, Type BR 1-Inch plug-on circuit breaker, rated for 125 A and 22 kAIC. This two-pole breaker operates at 120/240V with a common breaker trip mechanism. It is designed for use in Type BR Loadcenters and accommodates #4-2/0 AWG Cu/Al wire.

• Provides thermal magnetic protection for electrical circuits.
• Features a plug-on design for straightforward installation.
• Offers a high interrupting capacity of 22 kAIC for enhanced safety.

Product Highlights

The Eaton BRH2125 circuit breaker offers reliable thermal magnetic protection with a plug-on design for residential and commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BRH2125
• Country of Origin: Dominican Republic

Technical Specifications

• Size: 1 inch
• Voltage Rating: 120/240 V
• Amperage Rating: 125 A
• Trip Type: Common Breaker Trip
• Wire Size: 4-2/0 AWG Cu/Al
• UPC: 786676373951
• Mounting Type: Plug-On
• Number of Poles: 2
• Interrupt Rating: 22 kAIC
• Circuit Breaker Type: BR
• Catalog Number: BRH2125
• Brand: Eaton
• Country of Origin: Dominican Republic
• Application: Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type BR Load Center Applications
• Standards: UL 490, Federal Specifications Classification W-C376
• GTIN: 00786676373951
• Product Type: Thermal Magnetic Circuit Breaker
• Phase: 1
• Material: Thermoset
• Actuator Type: Toggle Handle
• Connection Type: Box Lug/Clamp/Plug-On
• Frequency Rating: 60 Hz
• Operating Temperature: 40 deg C
• Series: BRH
• Load Side Termination: Lugs
• UNSPSC: 39121601
