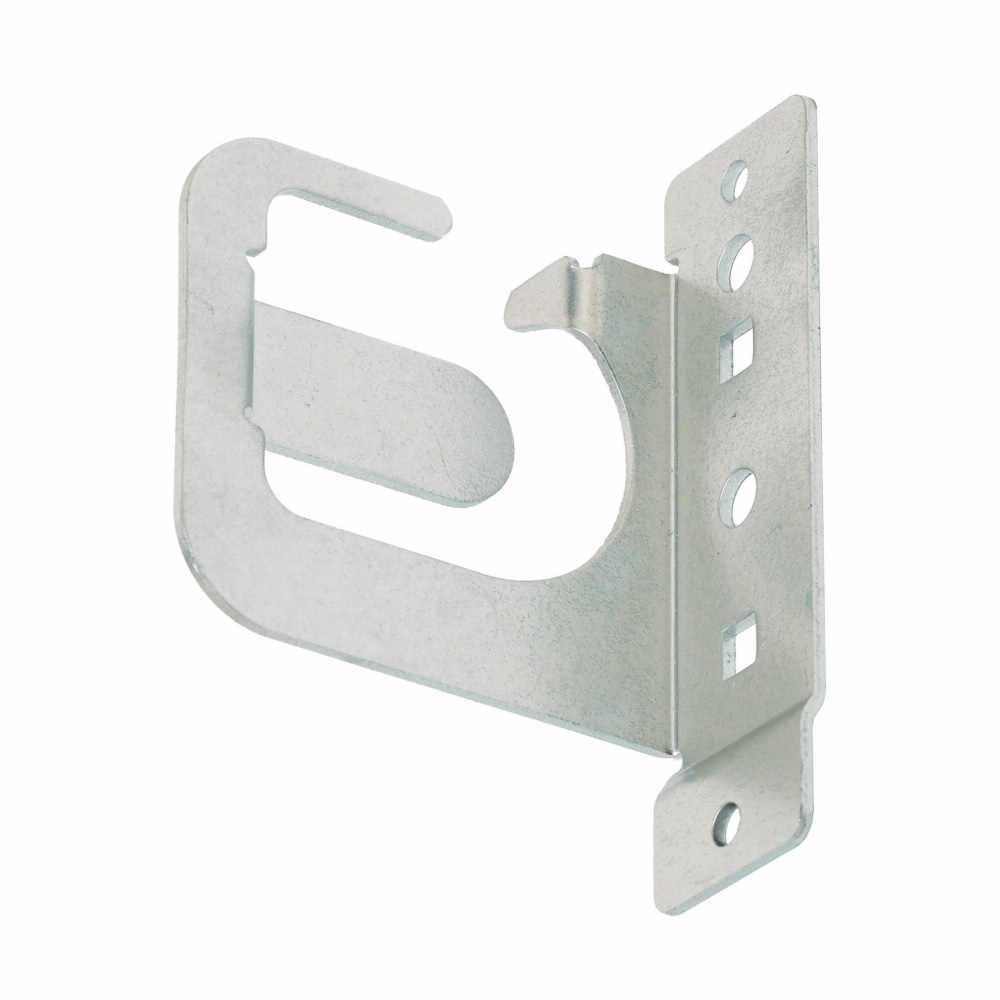

Eaton BRC52 Mc Ac Multi-run Cable Clip 50 Lb 9 Runs

Product Description

The EATON BRC52 is a multi-run cable carrier clip from the B-Line series, designed to support and organize MC and AC armored cable in commercial and industrial electrical installations. This zinc-plated fastener holds up to 9 individual cable runs with a 50-pound load capacity, keeping cable bundles secured and routed cleanly along structure or framing. It accommodates cable diameters from 0.43 inches minimum to 0.56 inches maximum, making it well suited for standard MC and AC cable sizes. Licensed electricians and electrical contractors install this clip as part of a structured cable management system in new construction and retrofit work.

The BRC52 is applied in conduit and cable support runs where multiple MC or AC cables must be bundled and carried along a common path. It is a practical fit in commercial buildings, light industrial facilities, and any application requiring organized overhead or wall-mounted cable routing. The compact form factor, measuring 3.77 inches in length, 2.72 inches in width, and 1.649 inches in height, allows installation in tight spaces without interfering with adjacent components.

Key Features

• Supports up to 9 MC or AC cable runs in a single clip
• 50-pound load capacity for secure multi-cable bundling
• Accepts cable diameters from 0.43 inches to 0.56 inches
• Zinc-plated finish for corrosion resistance in typical indoor environments
• Compact dimensions fit standard framing and structural mounting scenarios

Compatibility

Designed for use with MC and AC armored cable within the EATON B-Line series cable support and fastener system.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for cable support and spacing. Power down all circuits before securing or adjusting cable bundles in an energized panel or raceway area. Verify that the total cable weight and count do not exceed the 50-pound load capacity or 9-run maximum before fastening. Use appropriate fasteners for the mounting surface to ensure the clip is firmly anchored.

Technical Specifications

• Application: MC and AC multi-run cable carrier
• Load Capacity: 50 pounds
• Maximum Cable Runs: 9
• Minimum Cable Diameter: 0.43 inches
• Maximum Cable Diameter: 0.56 inches
• Height: 1.649 inches
• Length: 3.77 inches
• Width: 2.72 inches
• Weight: 0.176 pounds
• Finish: Zinc plated
• UPC: 782051435948

Standard Information

• Brand: EATON
• Manufacturer Part Number: BRC52
