Product Description

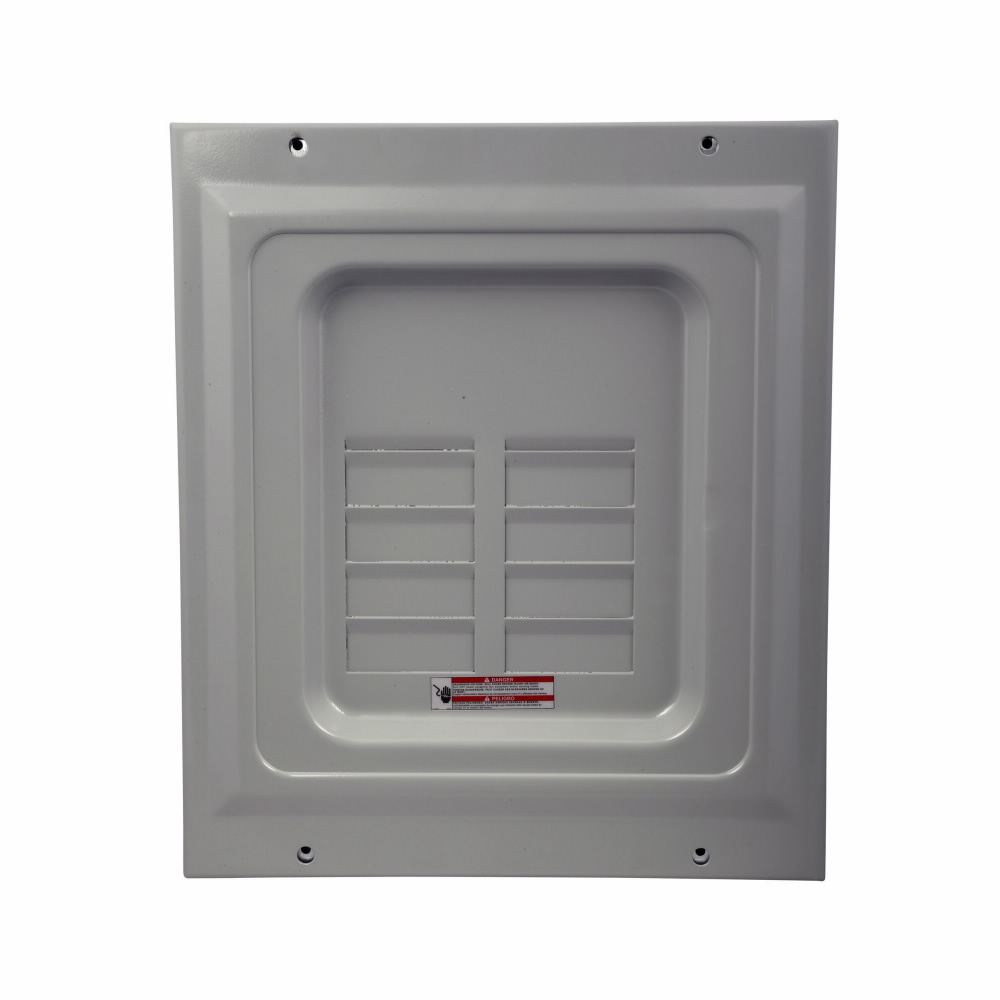

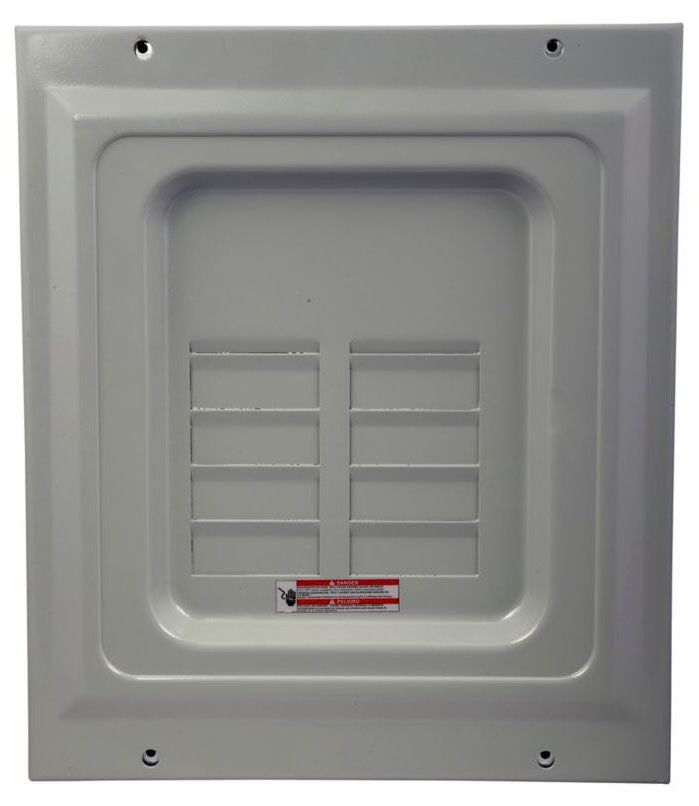

The EATON BR816L125SP is a single-phase main lug load center designed for use with 120/240 VAC systems. It features a capacity of 125 Amps and offers eight spaces for circuit breakers, allowing for a total of 16 circuit configurations. The load center is built with a NEMA 1 enclosure, making it suitable for indoor use.
- Type BR load center with 10 kA interrupt rating
- Compatible with wire sizes from 14 to 1 AWG
- Surface mount design for easy installation
Product Highlights
This load center is specifically designed for quick and efficient installation. It can serve as a main breaker for service entrances while also functioning as a main lug when expanding existing systems. The main breaker serves as a service disconnect, protecting the entire panel.
Product Information
Standard Information
-
Manufacturer: EATON
-
Part Number: BR816L125SP
Technical Specifications
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 125 A
-
Number of Poles: 16
-
Number of Circuits: 16
-
Dimensions: 3.56 in L x 11 in W x 13 in H
-
Enclosure Type: NEMA 1
-
Mounting Type: Surface
-
Wire Size: 14 to 1 AWG
-
Interrupt Rating: 10 kA
-
Housing Material: Metal
