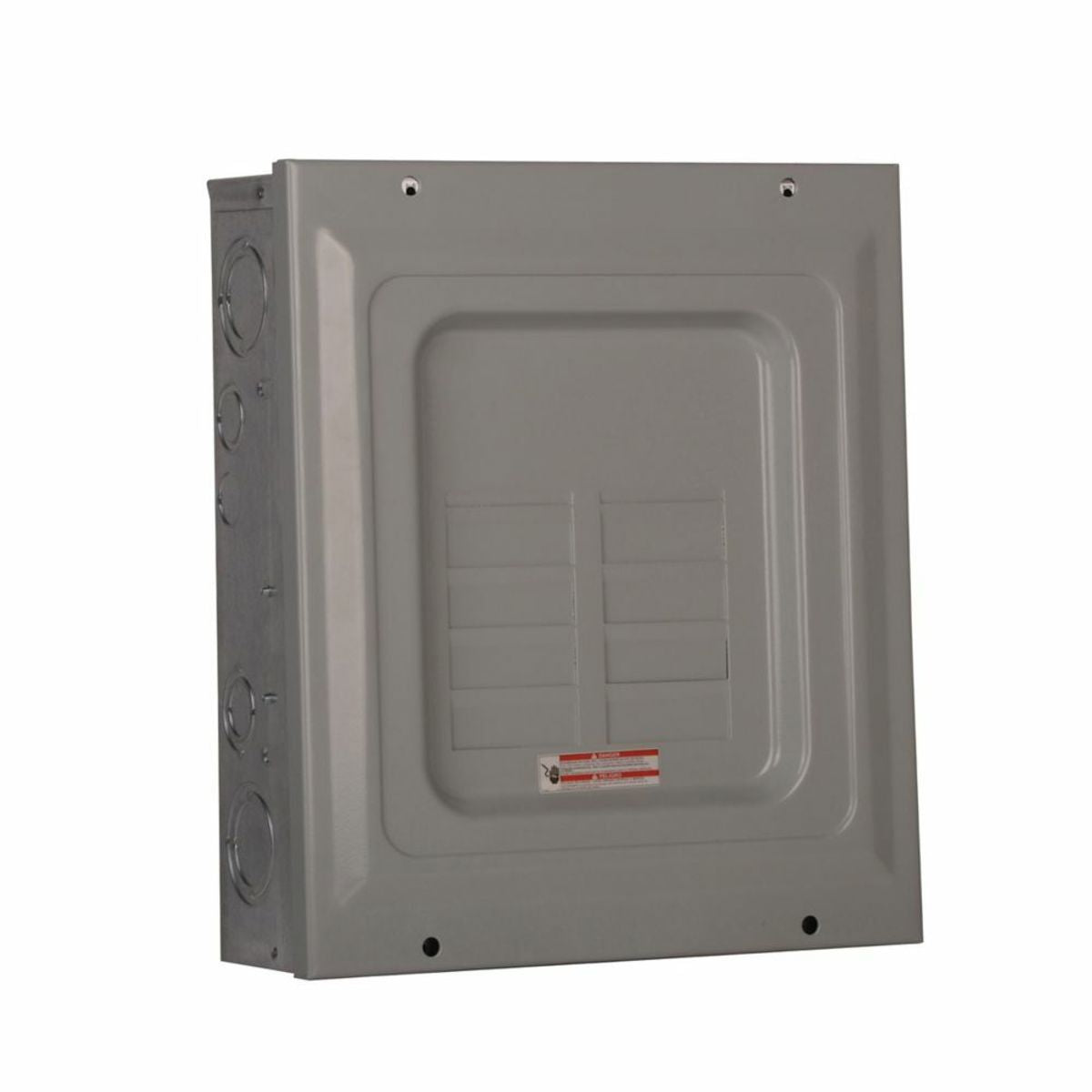

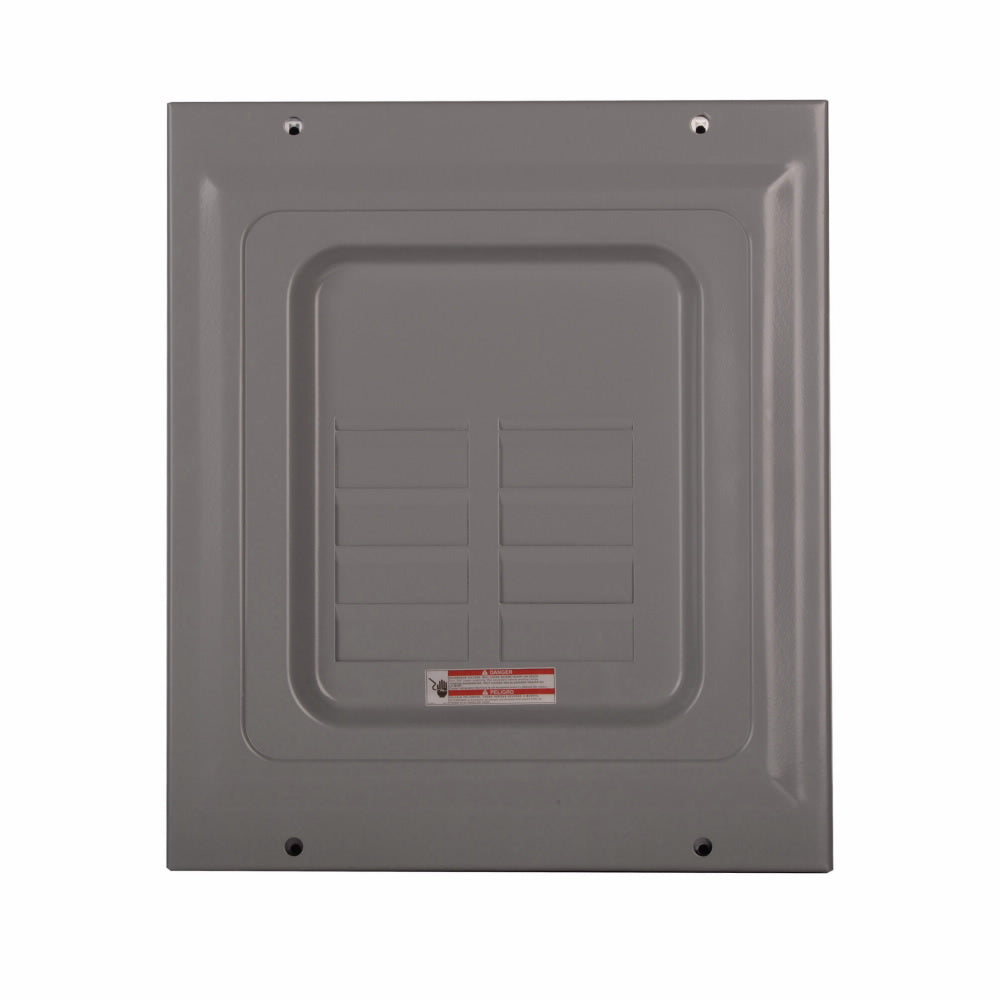

Eaton BR816L125SGP BR Main Lug Loadcenter 120/240V 125 A 16 Circuits

Product Description

Eaton's BR816L125SGP is a main lug load center rated at one hundred twenty to two hundred forty volts with a capacity of one hundred twenty-five amps. This load center efficiently houses branch circuit breakers and wiring for distributing power to individual circuits. It operates either with a main breaker for service entrances or as a main lug for additional circuits.

• One hundred twenty-five amps rating.
• Sixteen circuits including multiple pole capability.
• NEMA type one enclosure rated for indoor use.

Product Highlights

The Eaton BR816L125SGP offers practical solutions for electrical assemblies and is designed for easy installation. This product features a robust design that meets UL safety standards.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: BR816L125SGP

Technical Specifications

• Voltage Rating: 120/240V
• Amperage Rating: 125 A
• Breaker Type: BR
• Number of Circuits: 16
• Number of Poles: 16
• Number of Spaces: 8
• Interrupt Rating: 10 kA
• Dimensions: 3.56 in L x 11 in W x 13 in H
• Mounting Type: Surface
• Enclosure Type: NEMA 1
