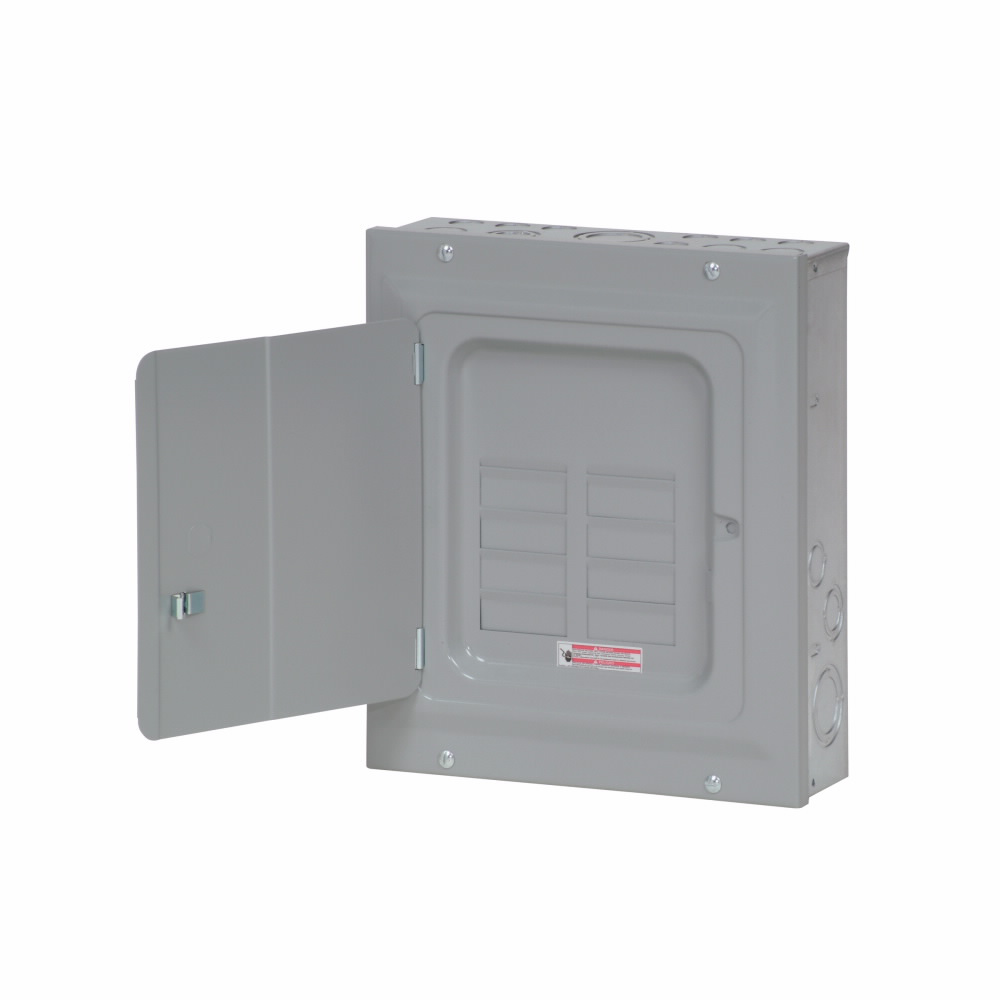

Eaton BR816L125SDP 1-Phase Split Main Lug Loadcenter 125 Amp 16 Circuits 10 kA Interrupt

Product Description

Eaton BR816L125SDP is a main lug load center designed for 120/240 VAC systems. It supports a maximum current of one hundred twenty-five amps and has sixteen circuits. This load center is suitable for residential and commercial electrical installations. It operates efficiently as either a main breaker at service entrances or as a main lug when connecting to existing circuits.

• Amperage Rating: 125
• Voltage Rating: 120/240 VAC
• Number of Circuits: 16

Product Highlights

This load center is ideal for applications needing reliable power distribution. It serves as the primary panel for incoming power or as an extension for additional circuits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: BR816L125SDP
• Phase: 1
• Type: Main Lug
• Enclosure Material: Metal
• Enclosure Type: NEMA 1
• Interrupt Rating: 10 kAIC
• Wire Size: 14-1 AWG
• Dimensions: 3.56 in L x 11 in W x 13 in H
• Weight: 12 lb
• Standards: UL 67, UL 50
