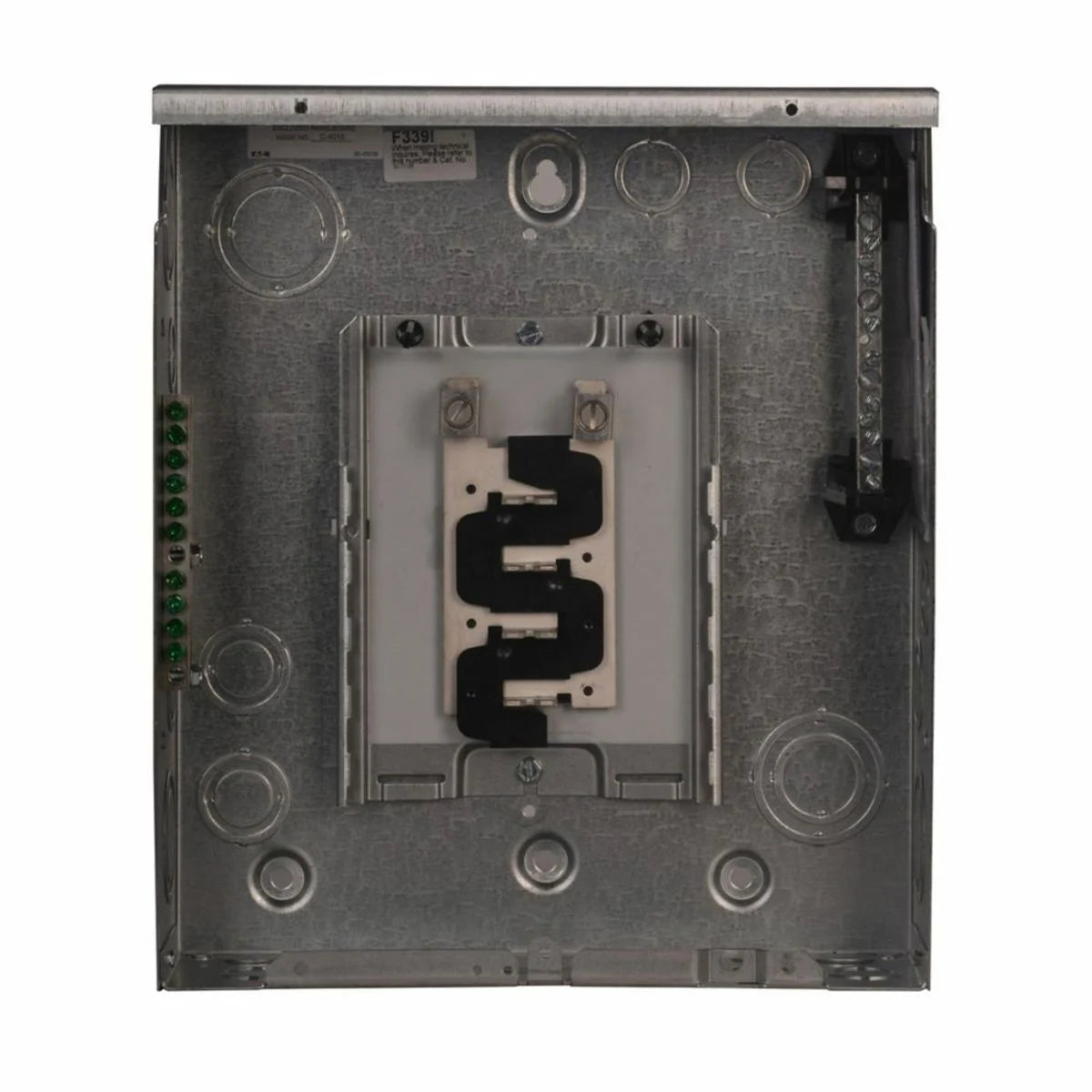

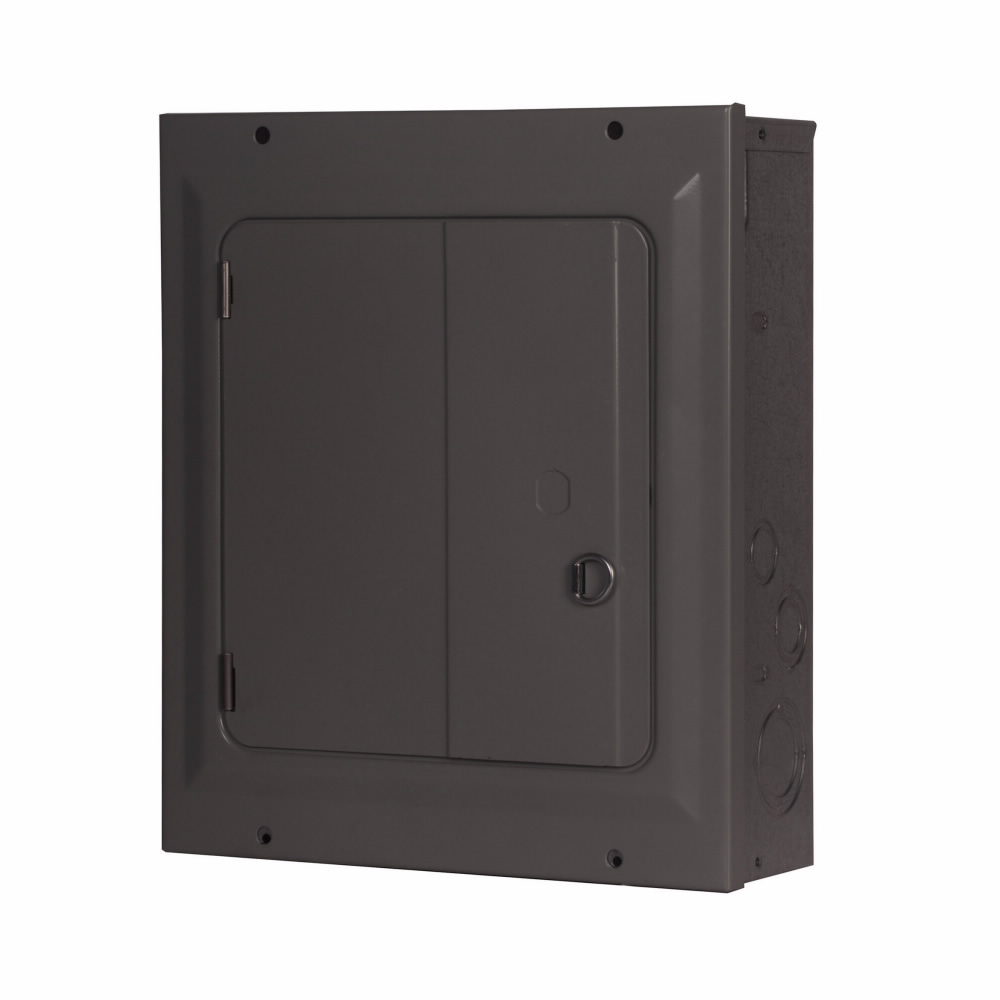

Eaton BR816L125SDGP 120/240 VAC 125 Amp 8/16 Circuit 1-Phase 3-Wire Main Lug Load Center

Product Description

The Eaton BR816L125SDGP is a main lug load center designed for use in electrical distribution systems. It is rated for 120/240 volts and allows for a maximum of 125 amps. This load center is suitable for various applications, providing a safe and reliable option for circuit management.

• Accepts 14-1 AWG copper or aluminum wiring
• Features 8 spaces and 16 circuits
• NEMA 1 rated for indoor use

Product Highlights

The Eaton BR816L125SDGP is ideal for electrical assemblies and panels. It features surface mounting and includes a cover. This load center has an interrupt rating of 10 kAIC and supports both top and bottom feed locations.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: BR816L125SDGP
• Voltage Rating: 120/240 Volt
• Amperage Rating: 125 Amp
• Interrupt Rating: 10 kAIC
• Number of Circuits: 16
• Number of Spaces: 8
• Mounting Type: Surface
• Neutral Type: Insulated/Bondable Split
• Dimensions: 3.56 inches x 11 inches x 13 inches
• Weight: 11.6 lb

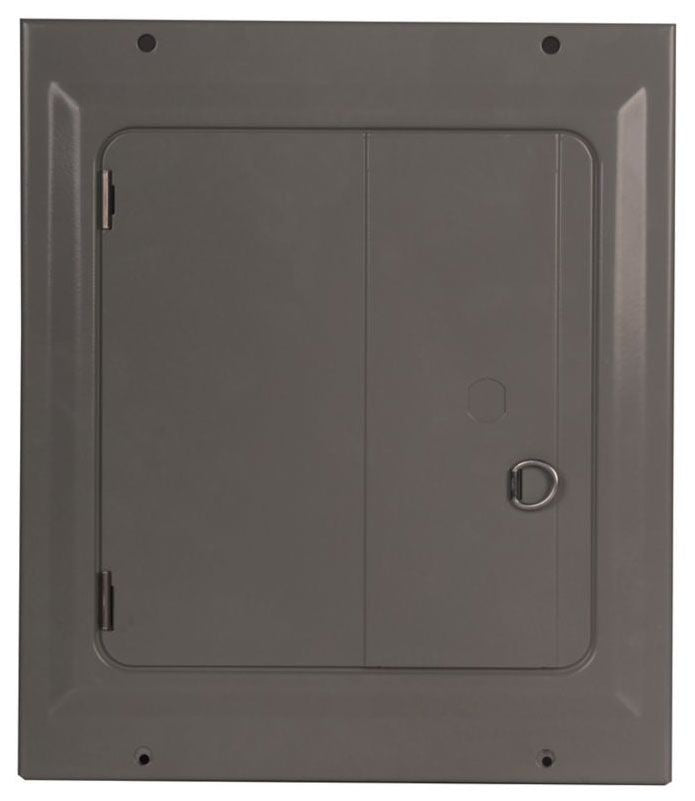

• Cover Type: Cover included
• Enclosure Type: NEMA 1
