Eaton BR816L125FDGP 120/240 VAC 125 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center

Product Description

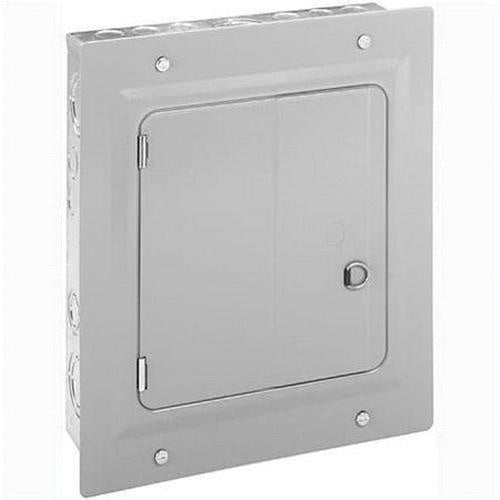

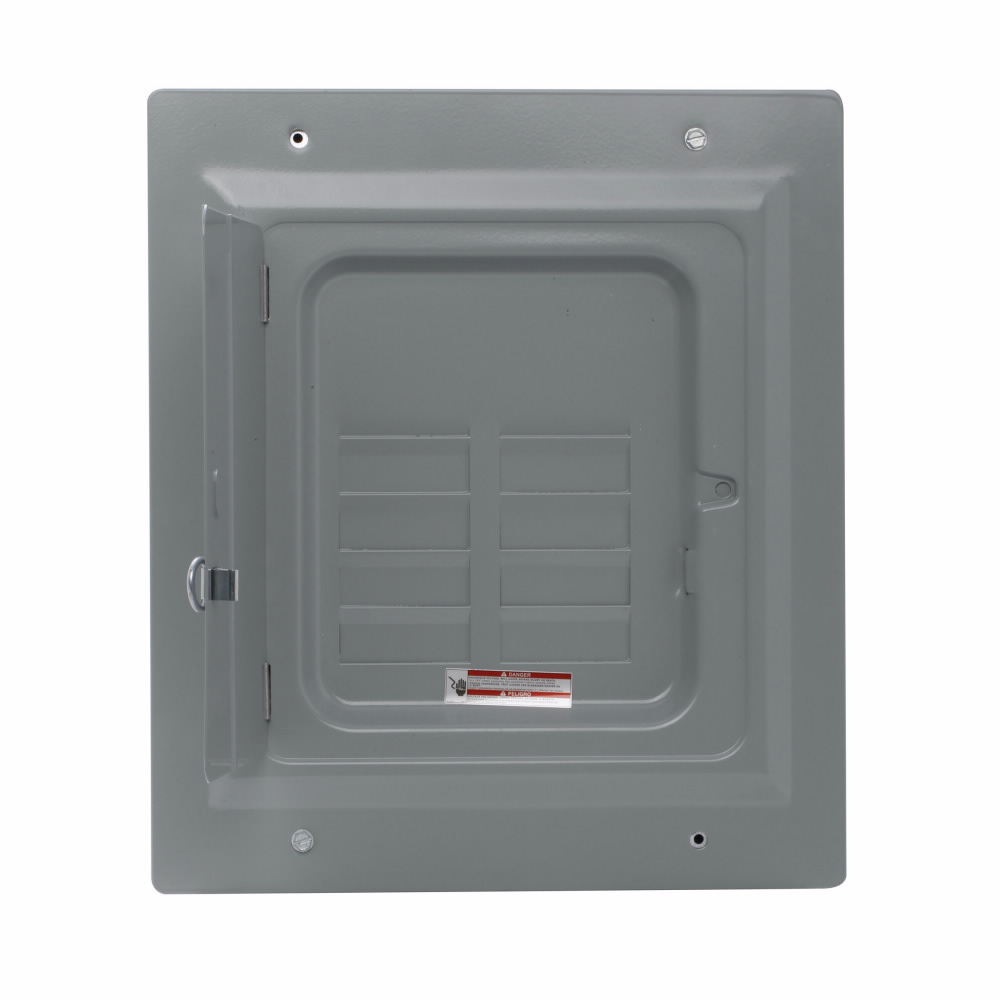

The Eaton BR816L125FDGP is a 120/240 Volt AC, 125 Amp main lug load center. This load center supports a 1-phase, 3-wire setup and has a capacity for 16 circuits. It features dual grounds and a metallic enclosure rated NEMA 1. The structure allows for flush mounting and includes a cover. This reliable load center accommodates wire sizes 14-1 AWG for copper or aluminum connections.

• Voltage: 120/240 Volt AC
• Amperage: 125 Amp
• Interrupt Rating: 10 kAIC

Product Highlights

This load center houses branch circuit breakers and connects wiring for efficient power distribution. It serves as a main breaker for service entrances or operates as a main lug when integrating more circuits.

Product Information

Standard Information

• Catalog Number: BR816L125FDGP
• Brand: Eaton

Technical Specifications

• Voltage Rating: 120/240 Volt AC
• Amperage Rating: 125 Amp
• Mounting Type: Flush
• Number of Circuits: 16
• Number of Spaces: 8
• Number of Wires: 3 Wire
• Width: 11 inches
• Height: 13 inches
• Length: 3.56 inches
• Weight: 12.8 lb
• Standard: UL 50, UL 67
• Country of Origin: United States
• Cover Type: Cover included
