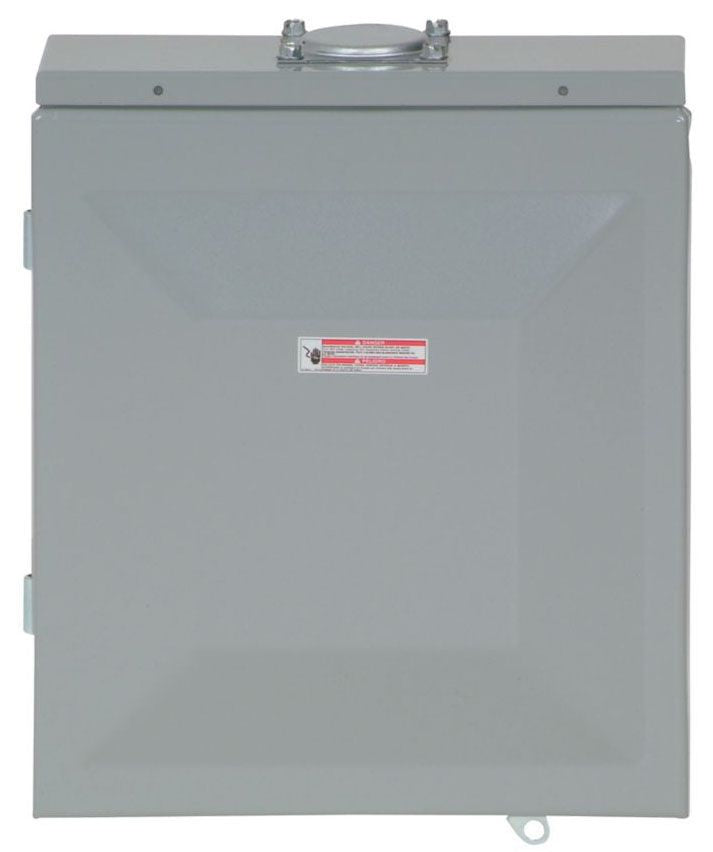

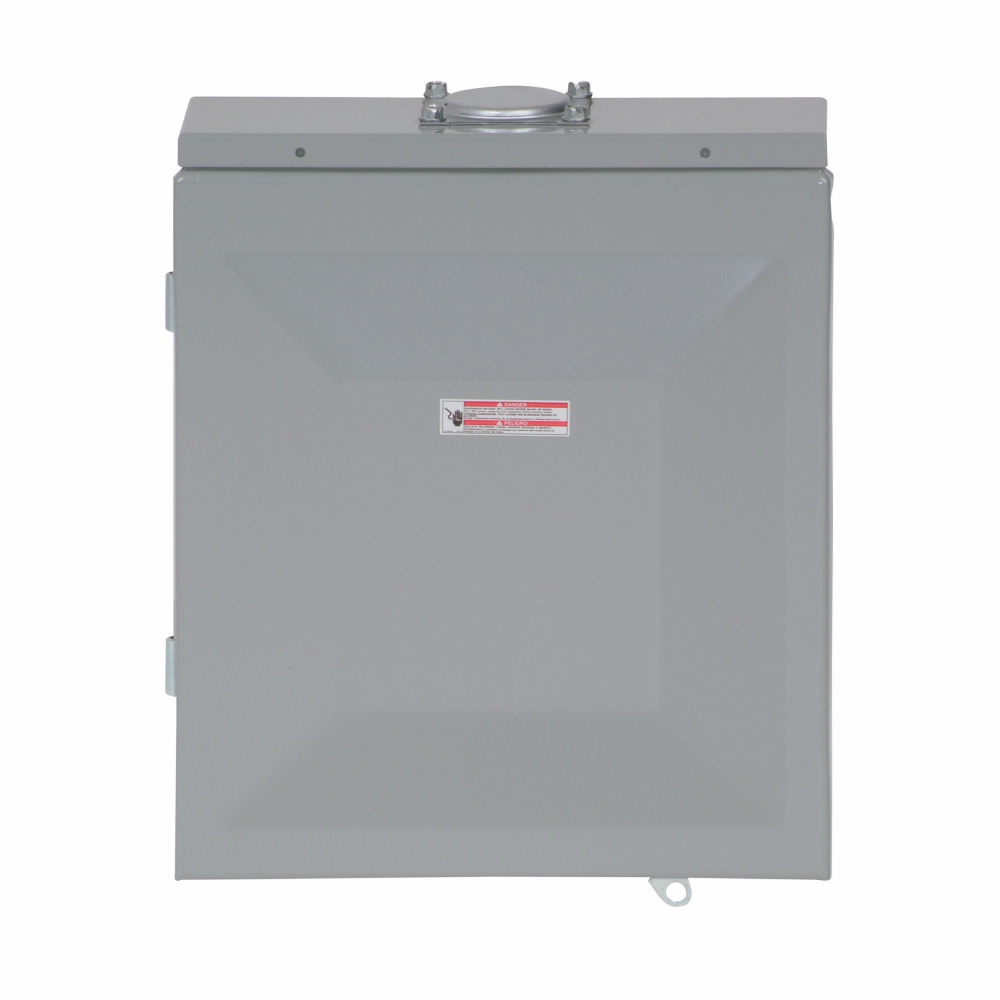

Eaton BR612L125RP 120/240 VAC 125 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center

Product Description

Eaton BR612L125RP is a 120/240 VAC 125 Amp 1-Phase Main Lug Load Center. This load center is designed for easy installation and is ideal for distributing power to individual circuits. It can serve as a main breaker for service entrances or function as a main lug when expanding existing circuits.

• Houses branch circuit breakers.
• Features NEMA 3R enclosure.
• Compatible with 14 to 1 AWG wire sizes.

Product Highlights

This load center offers reliable performance with a 10 kiloamp interrupt rating, ensuring that it meets the needs of both residential and light commercial applications.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: BR612L125RP

Technical Specifications

• Amperage Rating: 125 A
• Voltage Rating: 120/240 VAC
• Breaker Type: BR
• Number of Circuits: 12
• Number of Poles: 12
• Enclosure Type: NEMA 3R
• Dimensions: 3.56 inches L x 11 inches W x 13 inches H
• Wire Size: 14 to 1 AWG Cu/Al
