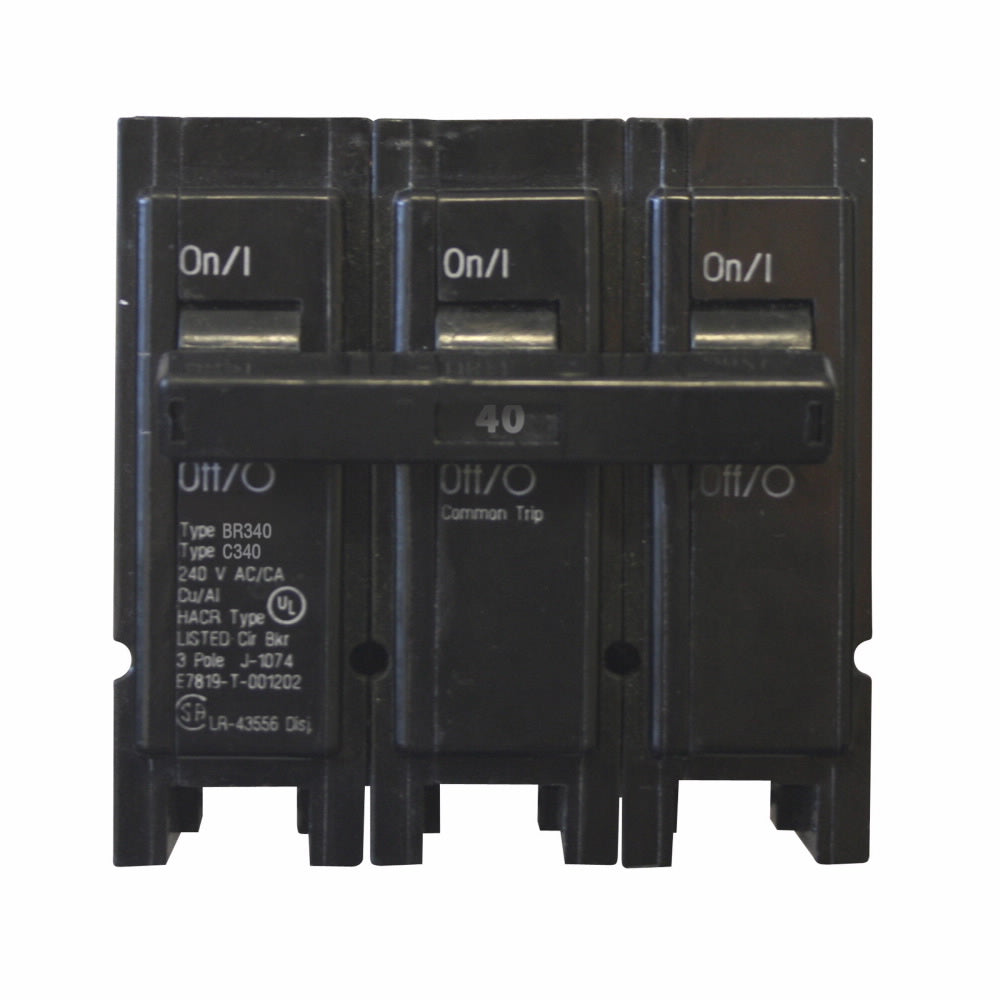

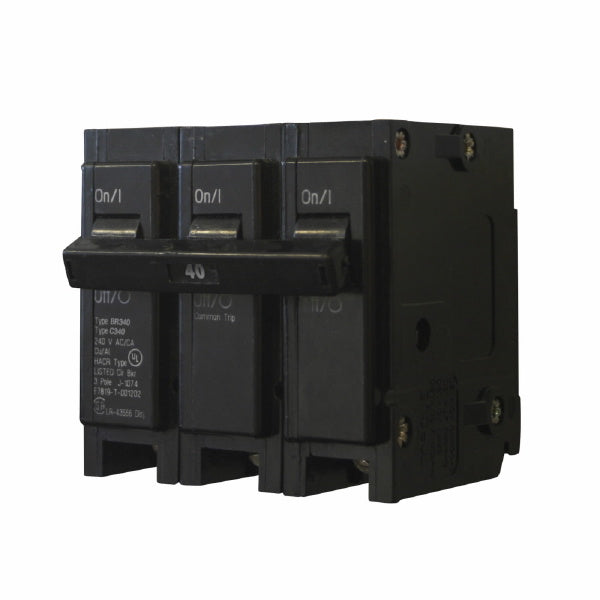

Eaton BR340 Type BR Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 3 Poles

Product Description

The Eaton BR340 is a Type BR plug-on circuit breaker designed for 240 VAC applications with a 40 Amp rating and a ten kA interrupt capacity. This three-pole circuit breaker features a common thermal magnetic trip mechanism.

• Rated for 240 VAC and 40 Amps
• 10 kA interrupt rating
• Designed for easy installation in load centers

Product Highlights

The Eaton BR340 circuit breaker is designed for use in residential and commercial load centers. It protects the wiring and individual electrical loads. It can serve as a main breaker or as part of a branch circuit.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: Type BR

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 40 A
• Interrupt Rating: 10 kA
• Number of Poles: 3
• Trip Type: Common/Thermal Magnetic
• Dimensions: 3 inches L x 3 inches W x 3 inches H
• Temperature Rating: 600 to 750 degrees Celsius
• Wire Size: 14 to 4 AWG
• Enclosure Type: NEMA 1/4X/3R
