Product Description

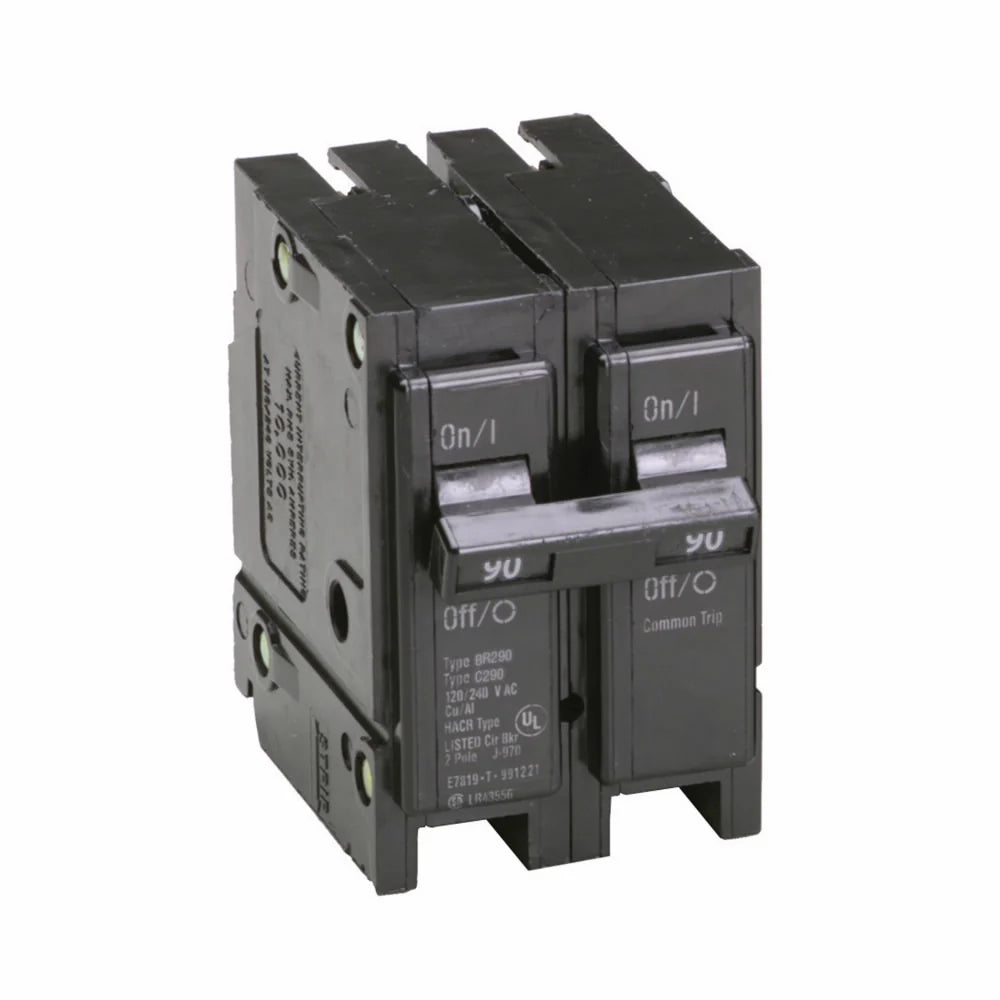

EATON BR290 Type BR Plug-On Circuit Breaker is designed for use in load centers and panelboards. It operates at 120/240 VAC and has a 90 Amp capacity with a 10 kA interrupt rating. This breaker is ideal for applications requiring reliable circuit protection.
- Voltage Rating: 120/240 VAC
- Amperage Rating: 90 A
- Interrupting Capacity: 10 kA
Product Highlights
This circuit breaker features a common trip function and supports wire sizes from 8 to 1/0 AWG. It is suited for residential or commercial use in various applications including conventional and renewable energy.
Product Information
Standard Information
-
Manufacturer: EATON
-
Type: Thermal Magnetic
Technical Specifications
-
Catalog Number: BR290
-
Phase: 1
-
Number of Poles: 2
-
Mounting Type: Plug-On
-
Temperature Rating: 40 deg C
-
Special Features: Rejection tab feature
