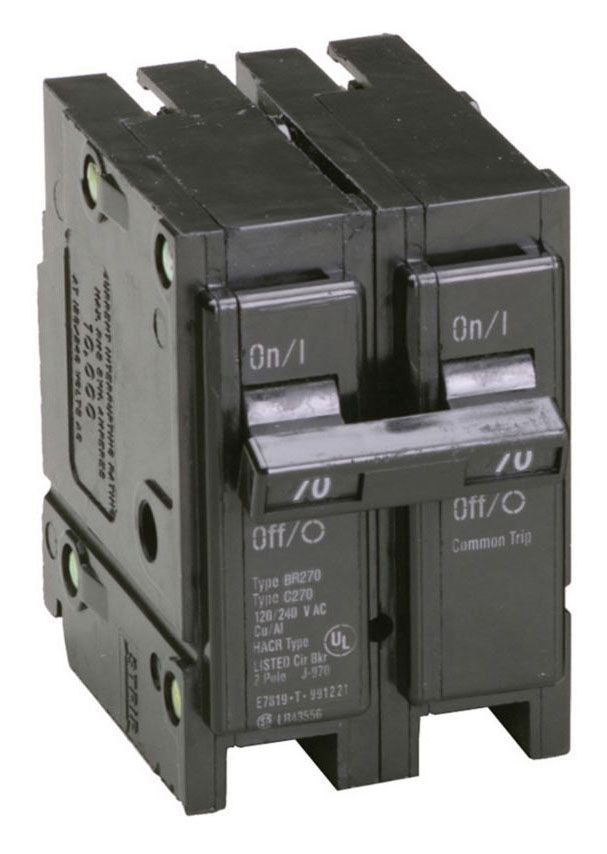

EATON BR270 Type BR Plug-On Circuit Breaker, 240 VAC, 70 Amp, 10 kAIC, 2-Pole

Product Description

The EATON BR270 is a plug-on circuit breaker designed for use in load centers and panelboards. It operates at a voltage rating of 240 VAC with a 70 Amp current capacity and 10 kA interrupt rating. This type BR breaker is suitable for thermal magnetic trip applications. It is compliant with UL 489 and made for a broad range of applications including conventional and renewable energy generation.

• 70 Amp capacity with 2 poles
• Operates at 240 VAC; suitable for residential and commercial settings
• Quick make and quick break switch mechanism for fast operation

Product Highlights

The BR270 circuit breaker features a common trip design requiring two one-inch spaces. It incorporates a rejection tab feature typical in BR circuit breakers, ensuring safe and reliable operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: BR270

Technical Specifications

• Type: BR
• Phase: 1 ph
• Trip Type: Common/Thermal Magnetic
• Wire Size: 8 to 1/0 AWG
• Dimensions: 3 inches L x 2 inches W x 3 inches H
• Mounting Type: Plug-On
• Interrupt Rating: 10 kA
• Temperature Rating: 600 to 750 deg C
• Enclosure Type: NEMA 1/4X/3R
• Voltage Rating: 120/240 VAC
• Amperage Rating: 70 A
• Number of Poles: 2
• Application: Load centers, panelboards, and circuit protection.
