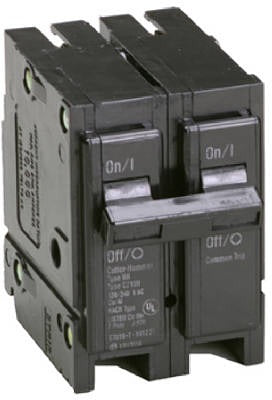

Eaton BR250 50A Double Pole Circuit Breaker 120/240V

Product Description

The EATON CORPORATION BR250 is a 50-amp double pole interchangeable circuit breaker rated for 120/240 volts. It is fullsize at 2 inches wide and is designed for use in residential and light commercial panelboards where branch circuit overcurrent protection is required. The BR250 provides two-pole protection for 240-volt loads such as electric ranges, dryers, HVAC equipment, and water heaters. Licensed electricians and panel installers are the primary trade installing this breaker. Its interchangeable design supports flexible panel configurations across compatible load centers.

The BR250 is suited for residential and light commercial applications requiring a fullsize 50-amp double pole breaker. It is commonly installed as a branch circuit breaker protecting high-draw 240-volt appliances and HVAC equipment within a breaker panel. The interchangeable format allows the breaker to fit a range of compatible load centers, making it a practical choice for service upgrades, new construction panel builds, and breaker replacement work.

Key Features

• 50-amp double pole configuration provides two-pole overcurrent protection for 240-volt branch circuits
• Fullsize 2-inch wide form factor fits standard panelboard slots
• Rated for 120/240 volts for compatibility with residential and light commercial panel voltages
• Interchangeable design supports flexible placement within compatible load centers
• Sold in bulk packaging with individual UPC bar code for inventory tracking

Compatibility

Designed as an OEM-style replacement or new-installation double pole circuit breaker for fullsize residential and light commercial load centers accepting interchangeable-style breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off main panel power and verify the bus is de-energized before removing or installing any breaker. Confirm that the panelboard rating and bus bar accept this breaker style before installation. Do not install a breaker in a panel slot that requires a different breaker type or form factor.

Technical Specifications

• Amperage: 50 amps
• Poles: Double Pole
• Voltage Rating: 120/240 volts
• Width: 2 inches
• Size Class: Fullsize
• Breaker Style: Interchangeable
• Package Quantity: 5 per package
• Weight: 3.5 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BR250
