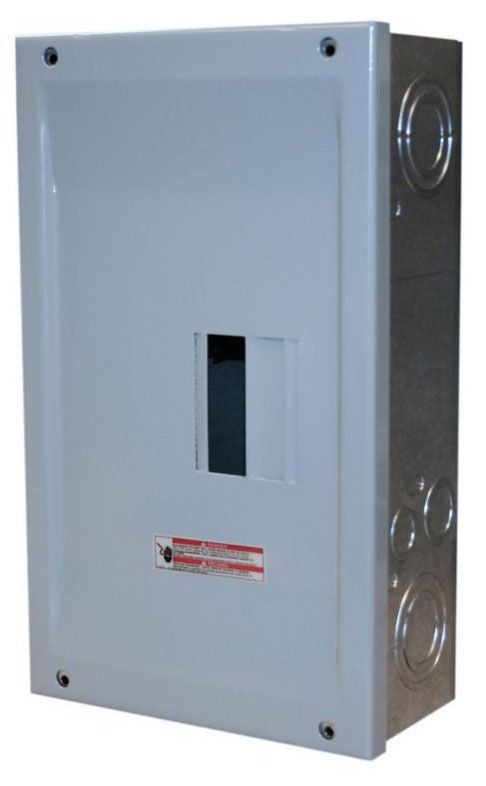

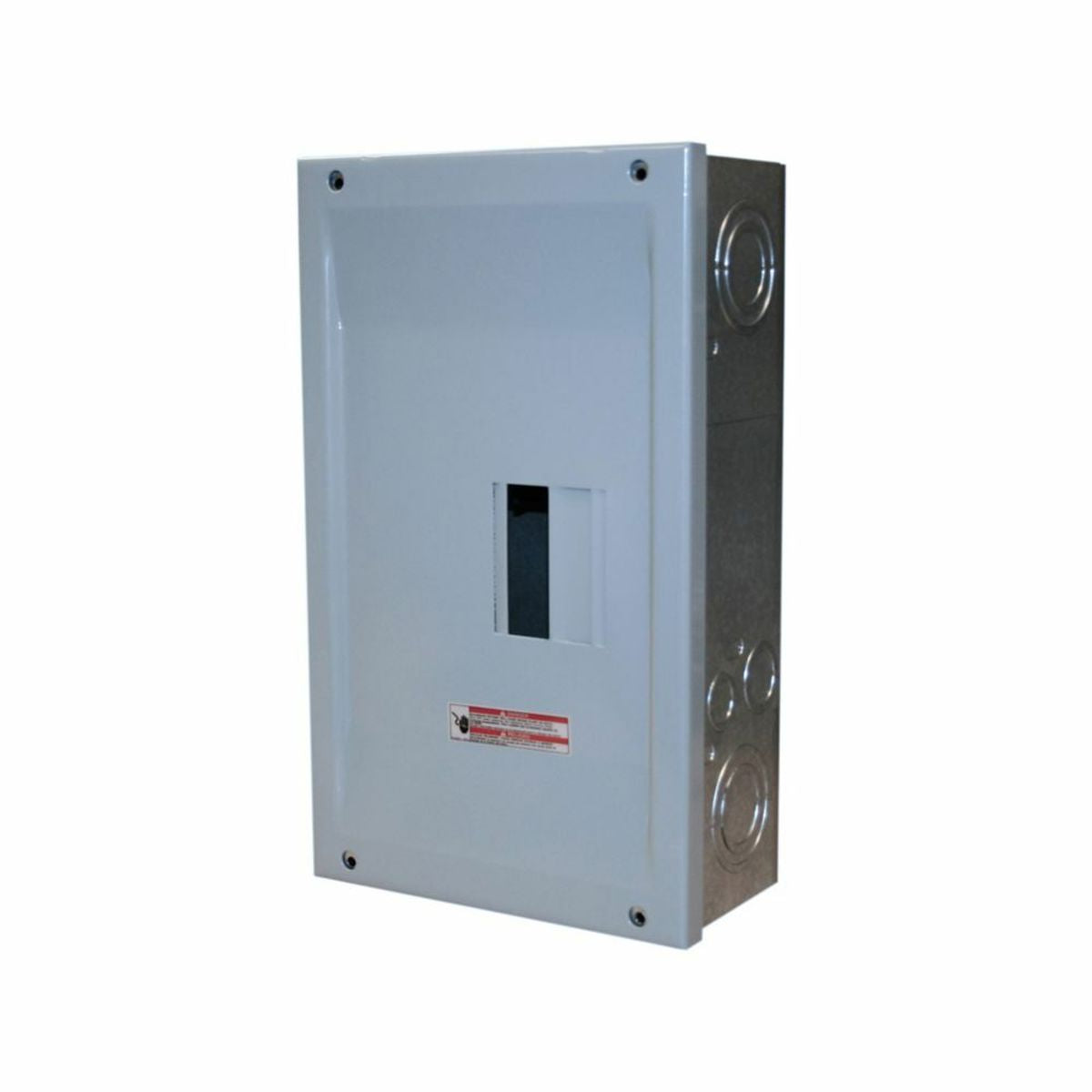

EATON BR24L125SP 1-Phase Main Lug Loadcenter, 120/240 VAC, 125 A, 4 Poles, 10 kA Interrupt

Product Description

The Eaton BR24L125SP is a single-phase, main lug load center rated for 120/240 VAC and 125 Amps. It features four poles and can accommodate a total of four circuits. This model is designed for surface mounting and complies with NEMA 1 specifications. The unit has dimensions of three point eight eight inches in length, fourteen point thirty-one inches in width, and twenty-one inches in height.

• Type BR configuration
• Up to six service mains
• Compatible with 14 to 1/0 AWG wire

Product Highlights

This load center is ideal for residential or light commercial applications, serving as a main breaker for service entrances or as a main lug when adding circuits. The branch breakers protect individual circuits for fixtures and outlets, ensuring reliable power distribution.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: BR24L125SP

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 4
• Number of Spaces: 2
• Wire Size: 14 to 1/0 AWG
• Interrupt Rating: 10 kA
• Enclosure Type: NEMA 1
• Wiring Configuration: 3-Wire
