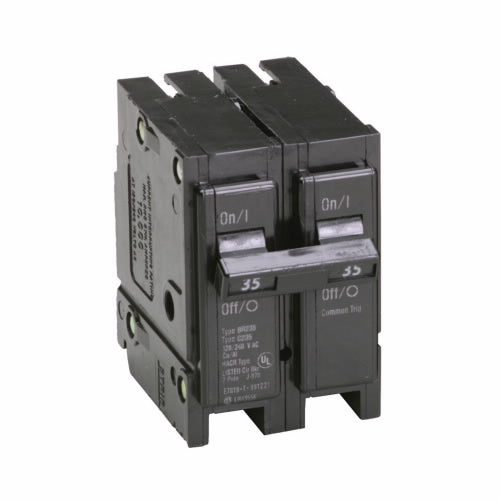

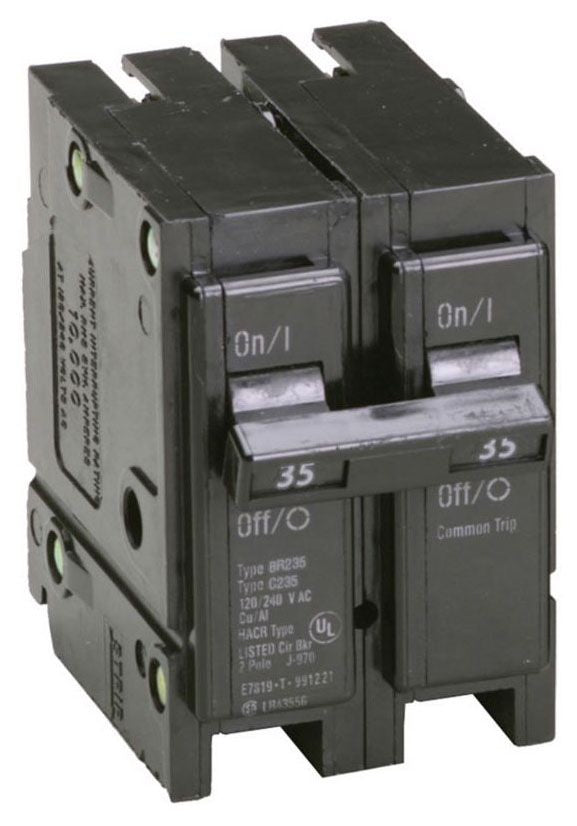

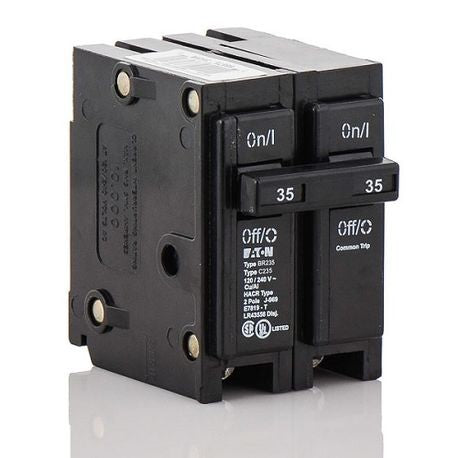

EATON BR235 Type BR Plug-On Circuit Breaker 240 VAC 35 Amp 10 kAIC 2-Pole

Product Description

The EATON BR235 Type BR Plug-On Circuit Breaker is a molded case circuit breaker designed for 120/240 VAC applications. With a 35 amp rating and a ten kiloamp interruption capacity, this two-pole breaker provides reliable performance in various electrical setups. It is suitable for residential load centers and panelboards.

• Voltage rating: 120/240 VAC
• Amperage rating: 35 A
• Interrupt rating: 10 kAIC

Product Highlights

This circuit breaker features a thermal magnetic trip curve which avoids nuisance tripping on mild overloads while responding quickly to severe short circuit events.

Product Information

Standard Information

• Catalog Number: BR235
• Manufacturer: EATON

Technical Specifications

• Trip Type: Common trip
• Wire Size: 14 to 4 AWG
• Dimensions: 3 in L x 2 in W x 3 in H
• Material: Thermoset
• Temperature Rating: 40 deg C
• Actuator Type: Handle
• Approved Standards: UL 489, CSA Certified, Federal Specification W-C375
