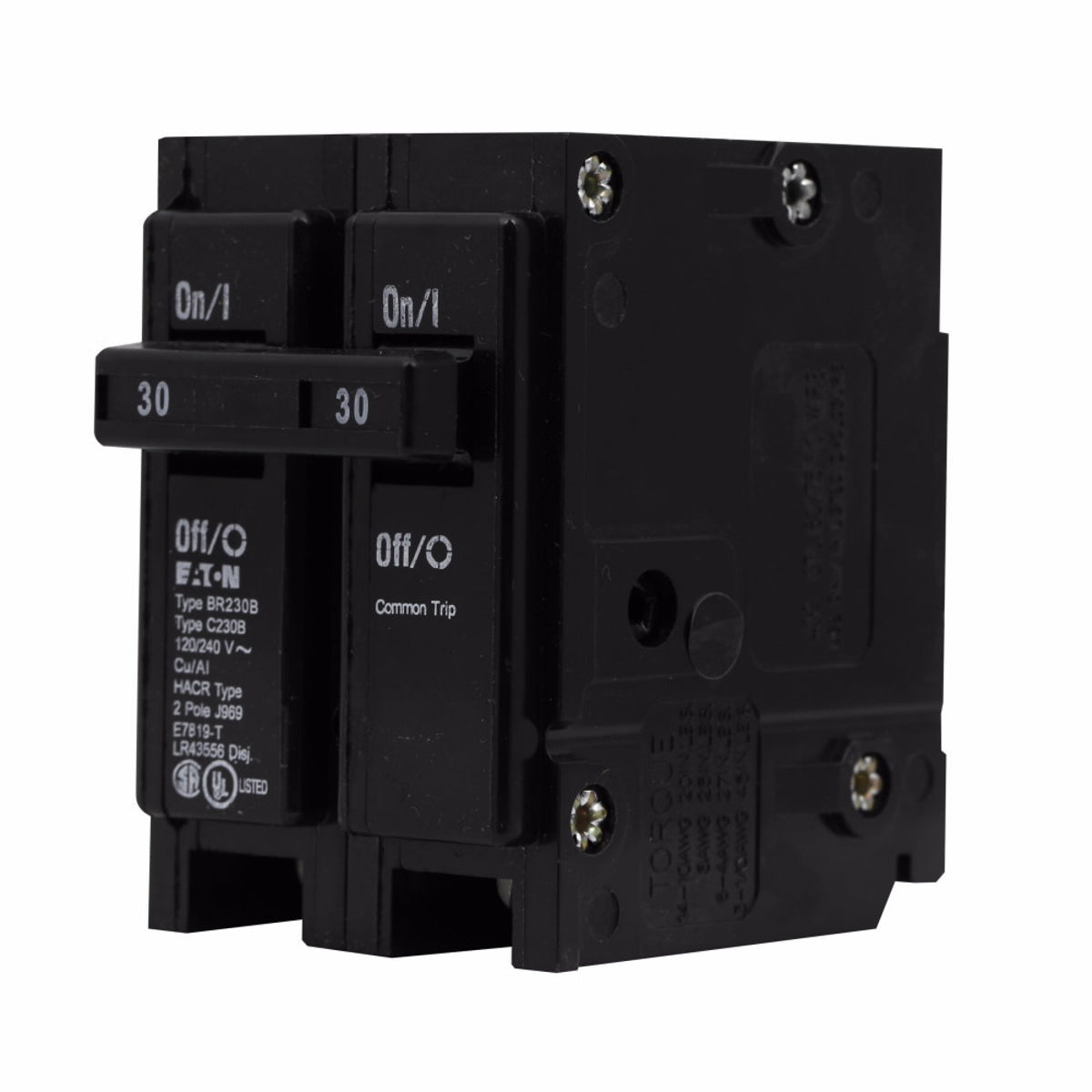

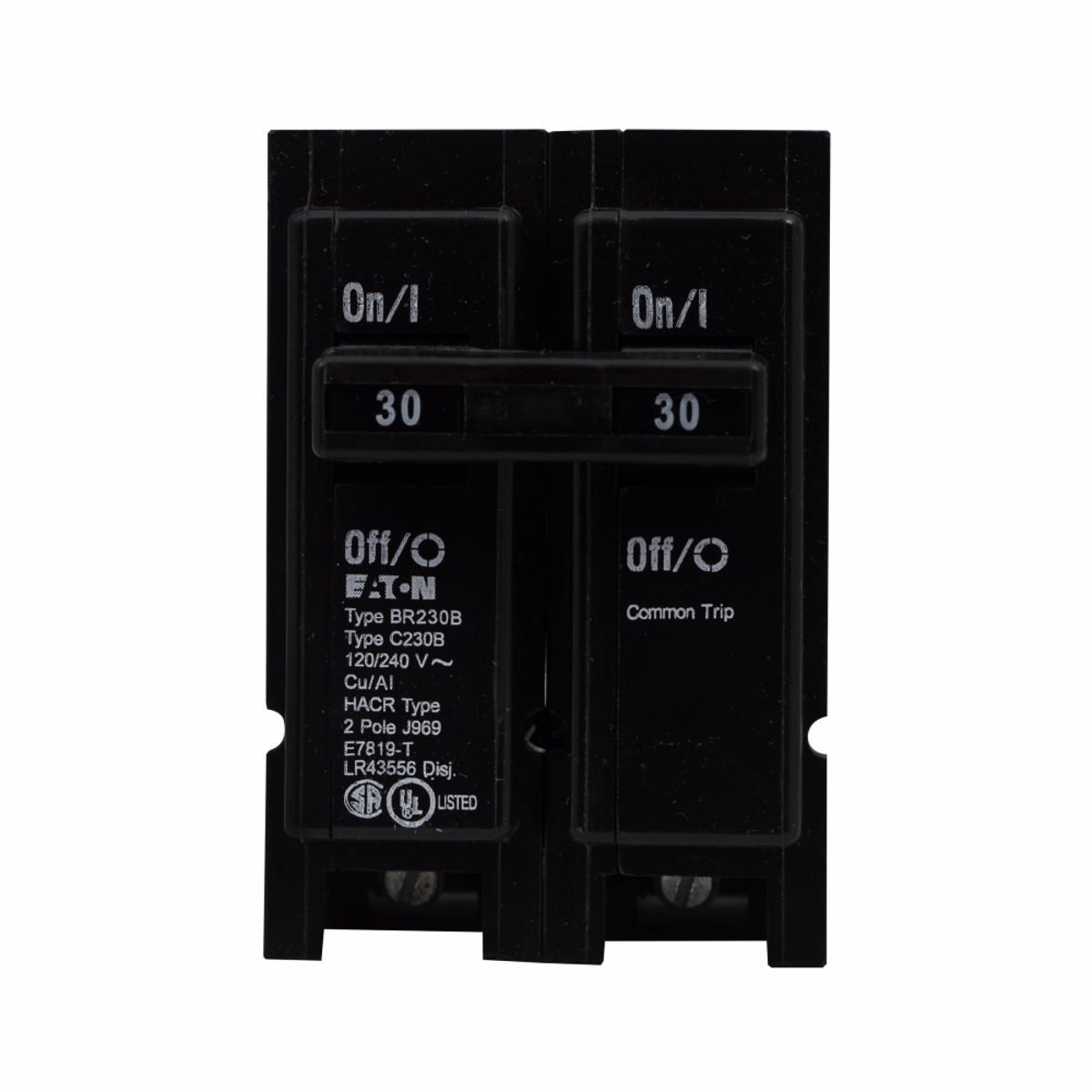

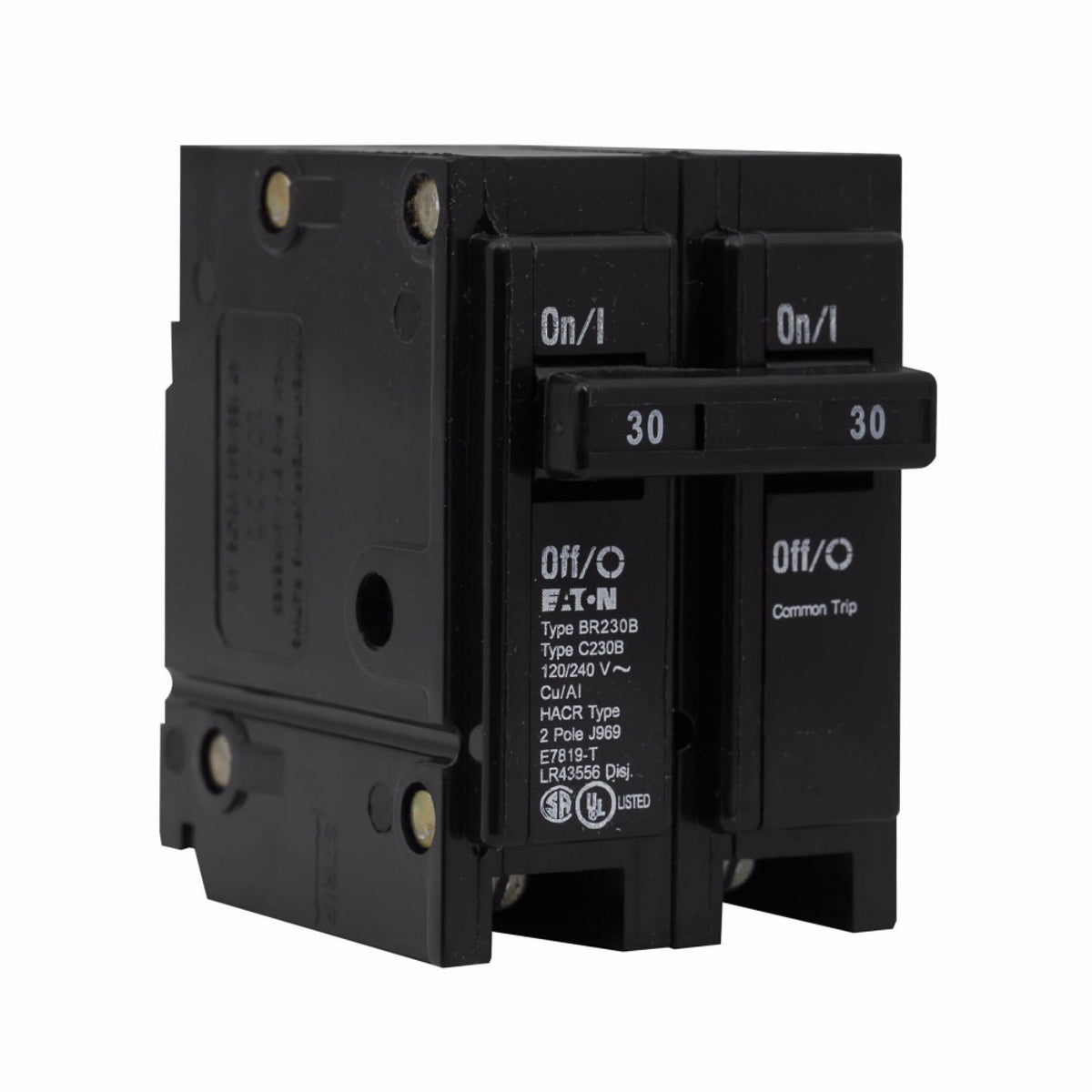

Eaton BR230B 1 Inch Type BR Plug-On Circuit Breaker 30 A (1 in) CHBR230B

Product Description

The Eaton BR230B is a Type BR thermal-magnetic 2-pole plug-on circuit breaker rated 30 A at 120/240 V with a 10 kAIC interrupting rating. It provides common-trip overcurrent protection for single-phase systems, accepts #14�4 AWG copper or aluminum conductors, and includes a tapped molded opening for special applications. The breaker is designed for Type BR loadcenters, 60 Hz operation, and is housed in a thermoset molded case with plug-on mounting.

• Thermal-magnetic protection, two-pole common trip, rated 30 A at 120/240 V with 10 kAIC interrupting rating
• Plug-on Type BR mounting with tapped molded opening; accepts #14�4 AWG copper or aluminum conductors
• Thermoset molded case, toggle-handle actuator, box lug/clamp connections, 60 Hz, 40 �C temperature rating

Product Highlights

2-pole Type BR thermal-magnetic breaker, 30 A, 120/240 V, 10 kAIC, plug-on mount, accepts #14�4 AWG

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BR230B
• Country of Origin: Dominican Republic
