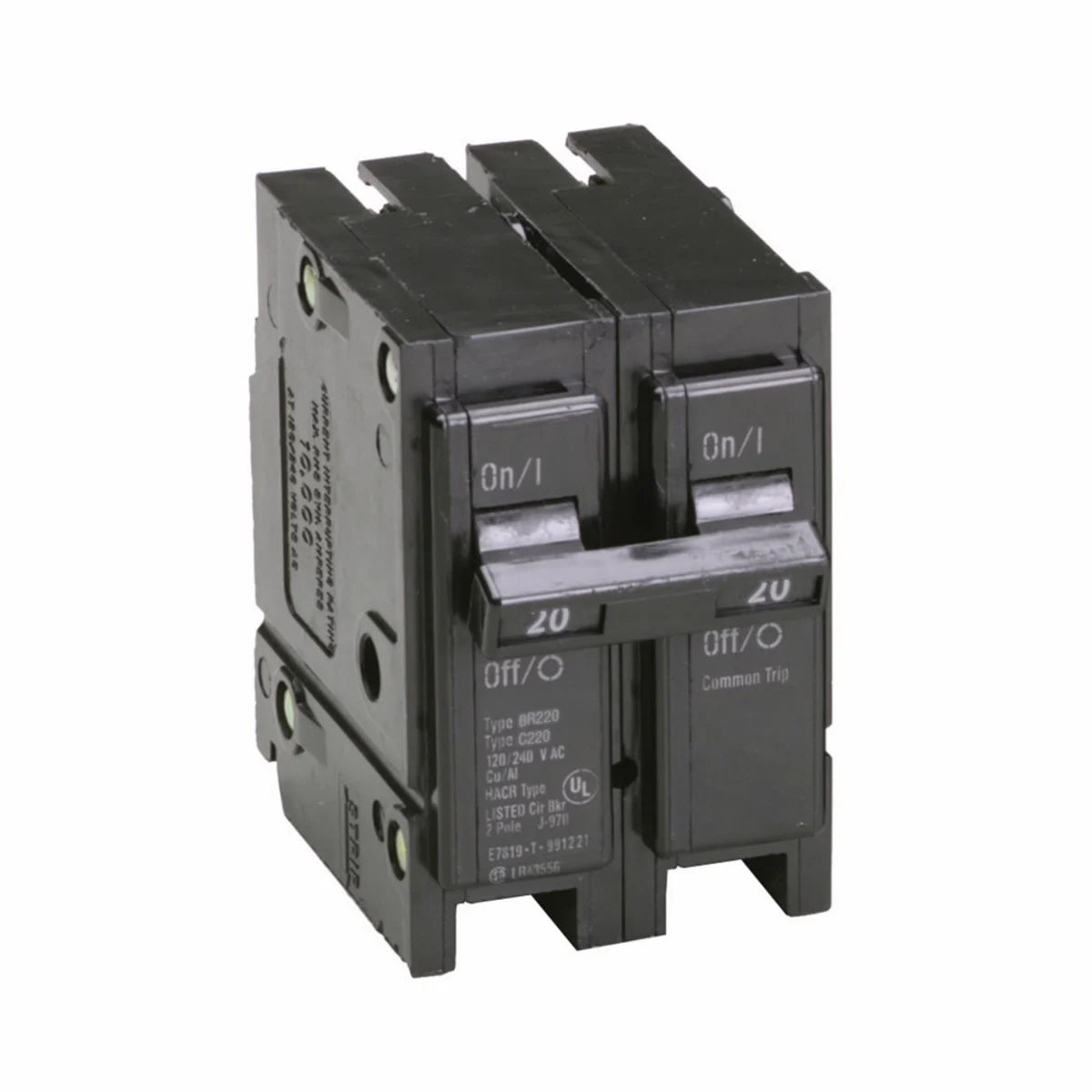

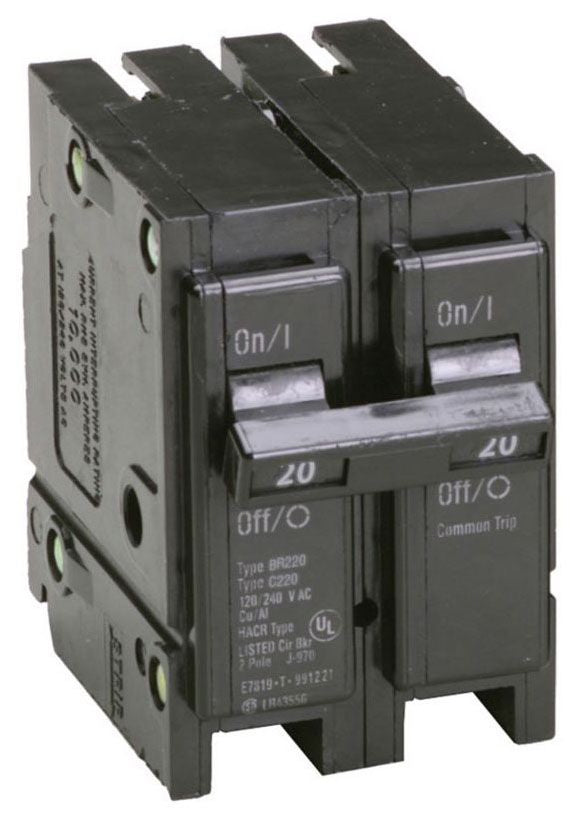

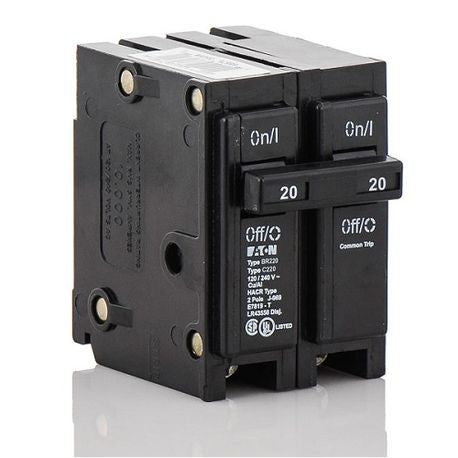

EATON BR220 Type BR Plug-On Circuit Breaker, 240 VAC, 20 Amp, 10 kAIC, 2-Pole

Product Description

The EATON BR220 is a Type BR plug-on circuit breaker designed for use in electrical systems. This breaker operates at 120/240 VAC and has a rating of 20 amps with a 10 kA interrupt capacity. It is a two-pole circuit breaker that allows for efficient protection against overcurrents.

• Common/Thermal Magnetic Trip for reliable operation
• Quick-make, quick-break mechanism for rapid response
• Compatible with Type BR loadcenters, ensuring versatile application

Product Highlights

This circuit breaker is suitable for residential and commercial applications, providing necessary protection for electrical circuits.

Product Information

Standard Information

• Brand: EATON
• MPN: BR220

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Trip Type: Common/Thermal Magnetic
• Dimensions: 3 in L x 2 in W x 3 in H
• Wire Size: 14 to 3 AWG
• Enclosure Type: NEMA 1/4X/3R
• Mounting Type: Plug-On
• Temperature Rating: 600 to 750 deg C
• Country of Origin: Dominican Republic
• Standards: UL 489, CSA Certified
