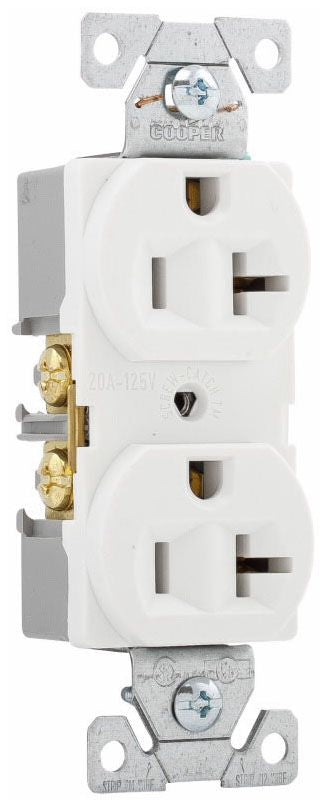

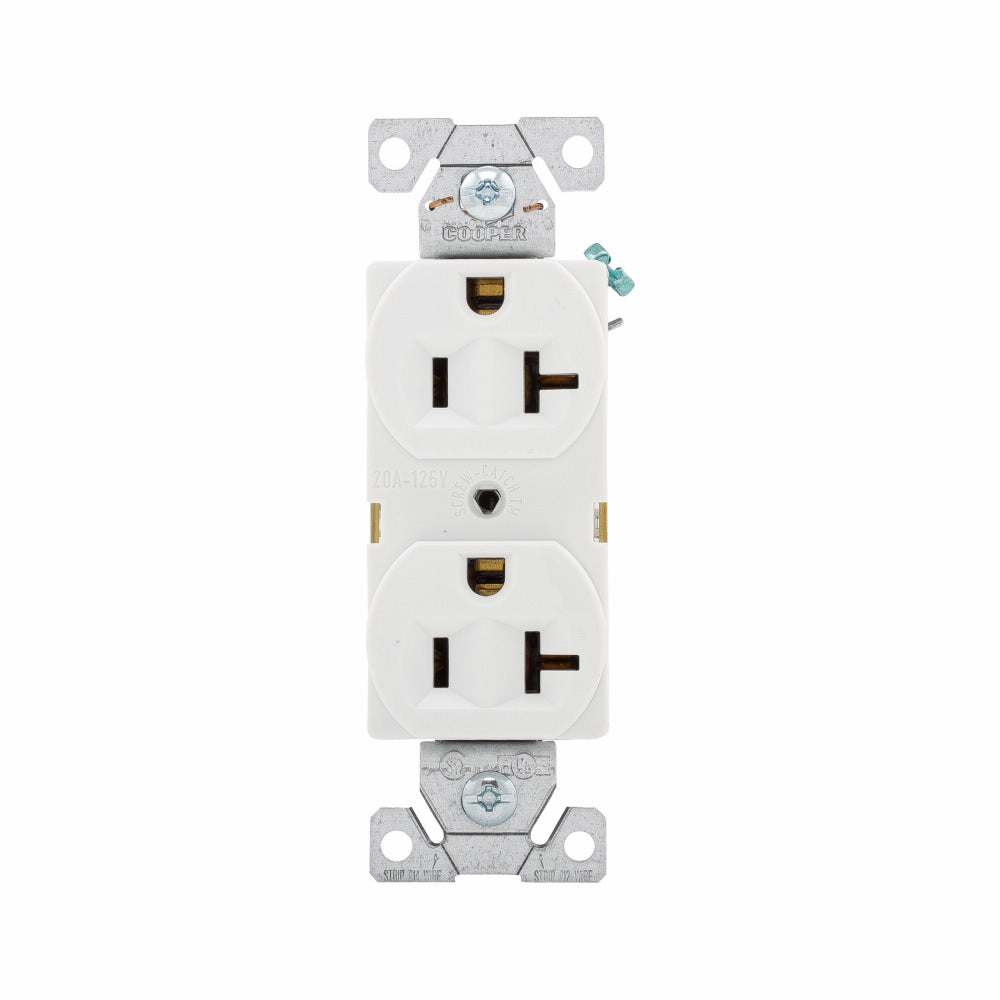

Eaton BR20W Duplex Tamper-Resistant Straight Blade Receptacle 20 A

Product Description

The EATON BR20W is a commercial specification grade straight blade receptacle engineered for safe, reliable performance. This duplex tamper-resistant receptacle is UL 498 and Federal Specification WC-596 listed. It is rated for 125 VAC and 20 A with a NEMA 5-20R configuration. Designed for durability and installation efficiency.

• Commercial Specification Grade
• Tamper-Resistant
• UL 498 listed

Product Highlights

The EATON BR20W receptacle provides a durable and safe solution for a variety of commercial applications. It ensures code compliance and efficient installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BR20W
• Country of Origin: USA

Technical Specifications

• Amperage: 20 A
• Voltage: 125 VAC
• Poles: 2
• Wires: 3
• NEMA Configuration: 5-20R
• Type: Duplex Tamper-Resistant Straight Blade Receptacle
• Wiring: Side wiring
• Grade: Commercial
• Material: Nylon/PVC
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: cULus/UL Listed|CSA Certified|UL94-V-2 Flammability Rating|NOM Certified
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Back/Side Wire
• Application: Indoor Applications
• Voltage Rating: 125 VAC
• Mounting Type: Flush
• Connection Type: Screw
• Contact Material: Brass
• Torque Rating: 14 lbf-inch
• Flammability Rating: UL 94V-2
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
