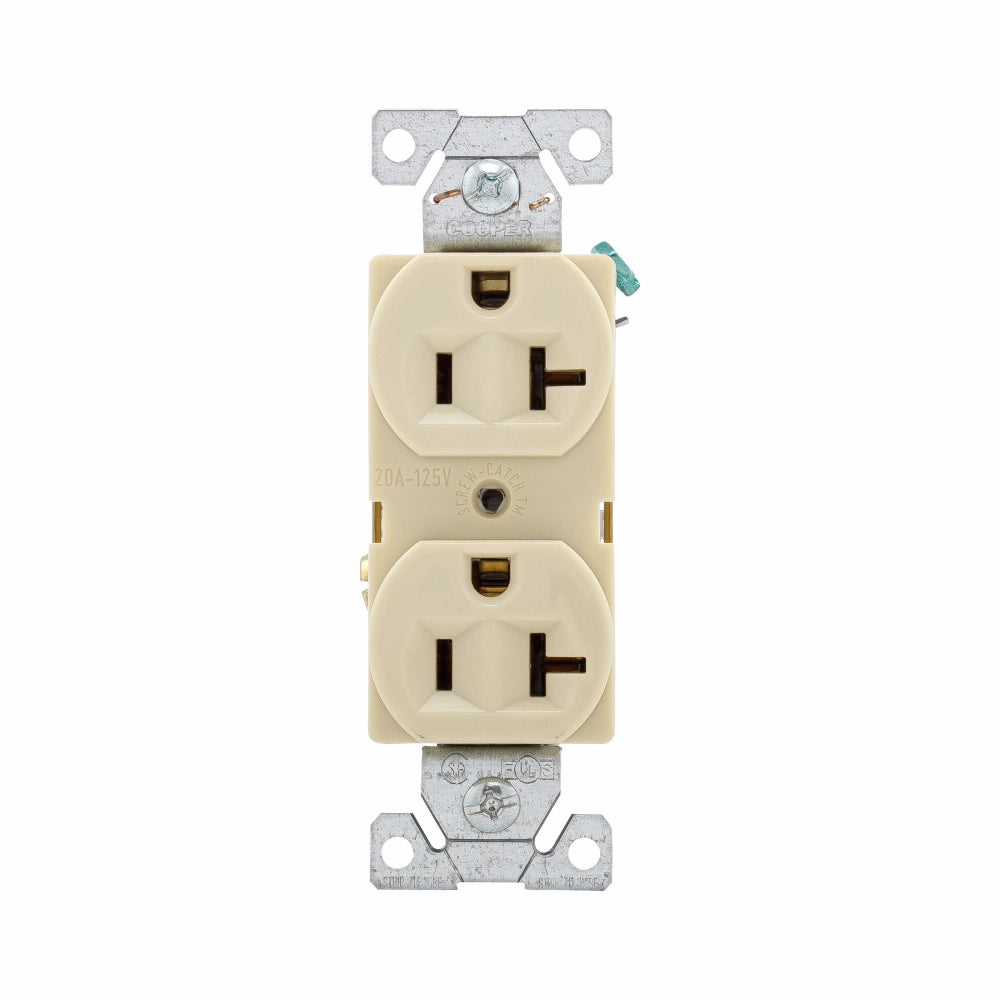

EATON BR20V CWD IVORY DUPLEX COM.RCPT B&S WIRED 20A125V 5-20R

Product Description

Eaton BR20V is a straight blade receptacle designed for commercial use. It operates at one hundred twenty-five volts and supports a maximum of twenty amps. This duplex receptacle includes two poles and three wires, making it suitable for a variety of applications. The product features a NEMA 5-20R rating, ensuring compatibility with standard electrical devices.

• Includes galvanized steel wraparound yoke for secure installation
• Automatic grounding system for safety compliance
• Flush mounting design for clean aesthetics

Product Highlights

This receptacle is built for reliability and safety in indoor environments.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: BR20V

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA 5-20R
• Dimensions: 4.19 in H x 0.82 in D
• Temperature Rating: -4 to 158 deg F
• Material: Nylon/PVC
• Number of Poles: 2
• Number of Wires: 3
• Standards: UL Listed, cULus Listed, CSA Certified
