Eaton BR2020 Type BR Circuit Breaker, 120 VAC, (2) 20 Amp, 10 kA Interrupt, 1 Poles, Common/Thermal Magnetic Trip

Product Description

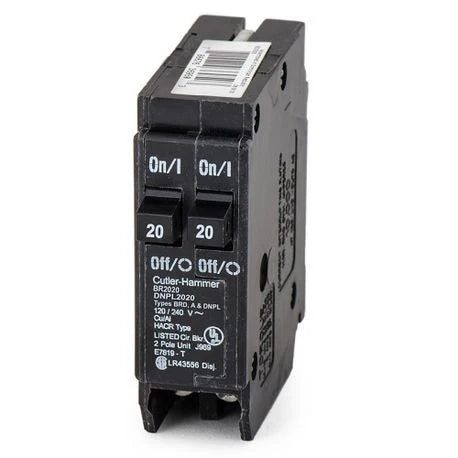

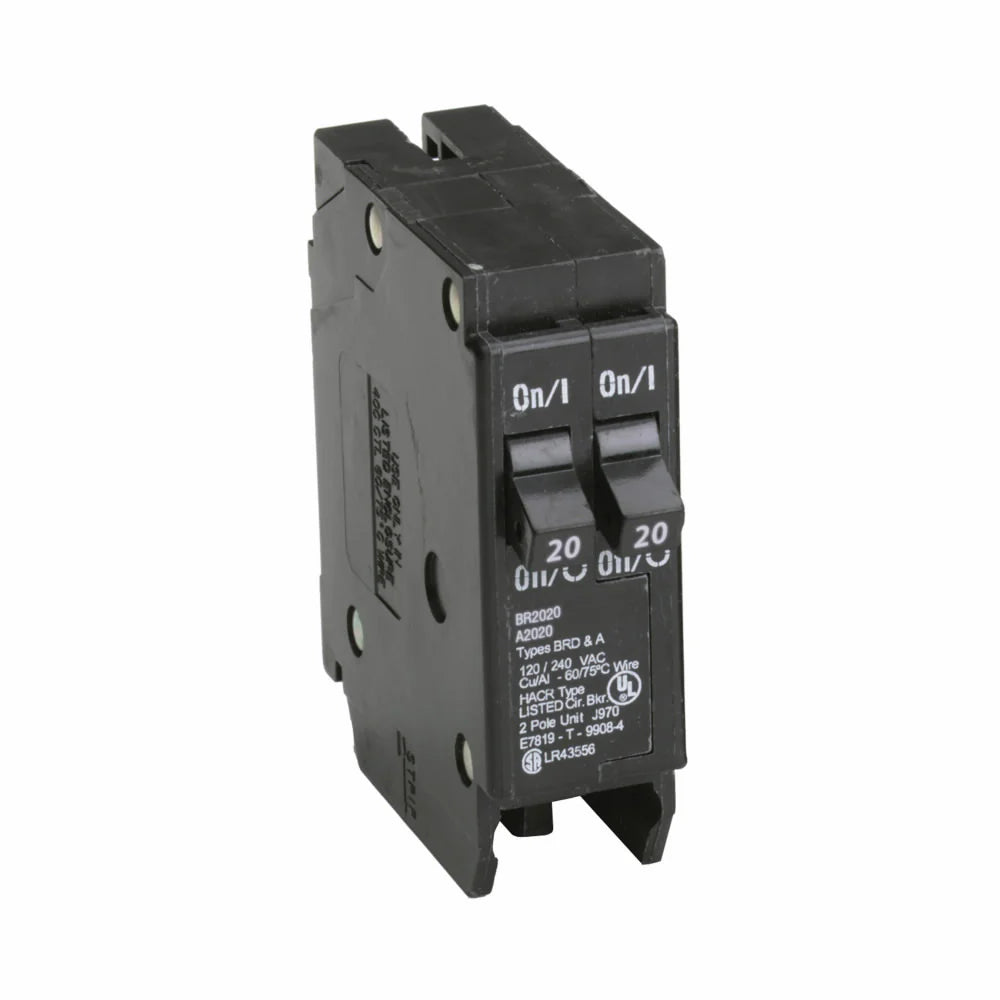

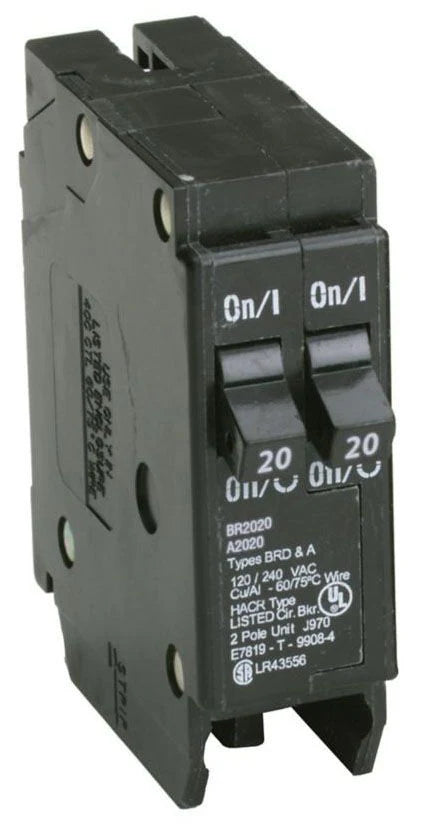

Eaton BR2020 is a 120 volt AC type BR duplex circuit breaker with two 20 amp poles. This product features a 10 kiloamp interrupt rating. It is designed to fit into one inch load centers. The circuit breaker connects copper or aluminum wires ranging from fourteen to four gauge. It supports thermal magnetic trip functions for reliable performance.

• Plug-on mount design
• Common and thermal-magnetic trip functions
• Environmentally friendly NEMA rated enclosure

Product Highlights

The Eaton BR2020 circuit breaker is suitable for residential and light commercial applications. It serves as a main breaker for service entrances or as branch circuit breaker for additional circuits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: BR2020

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: (2) 20 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: Common/Thermal Magnetic
• Wire Size: 14 to 4 AWG
• Dimensions: 3 in L x 1 in W x 3 in H
• Enclosure Type: NEMA 1/4X/3R
• Temperature Rating: 600 to 750 deg C
