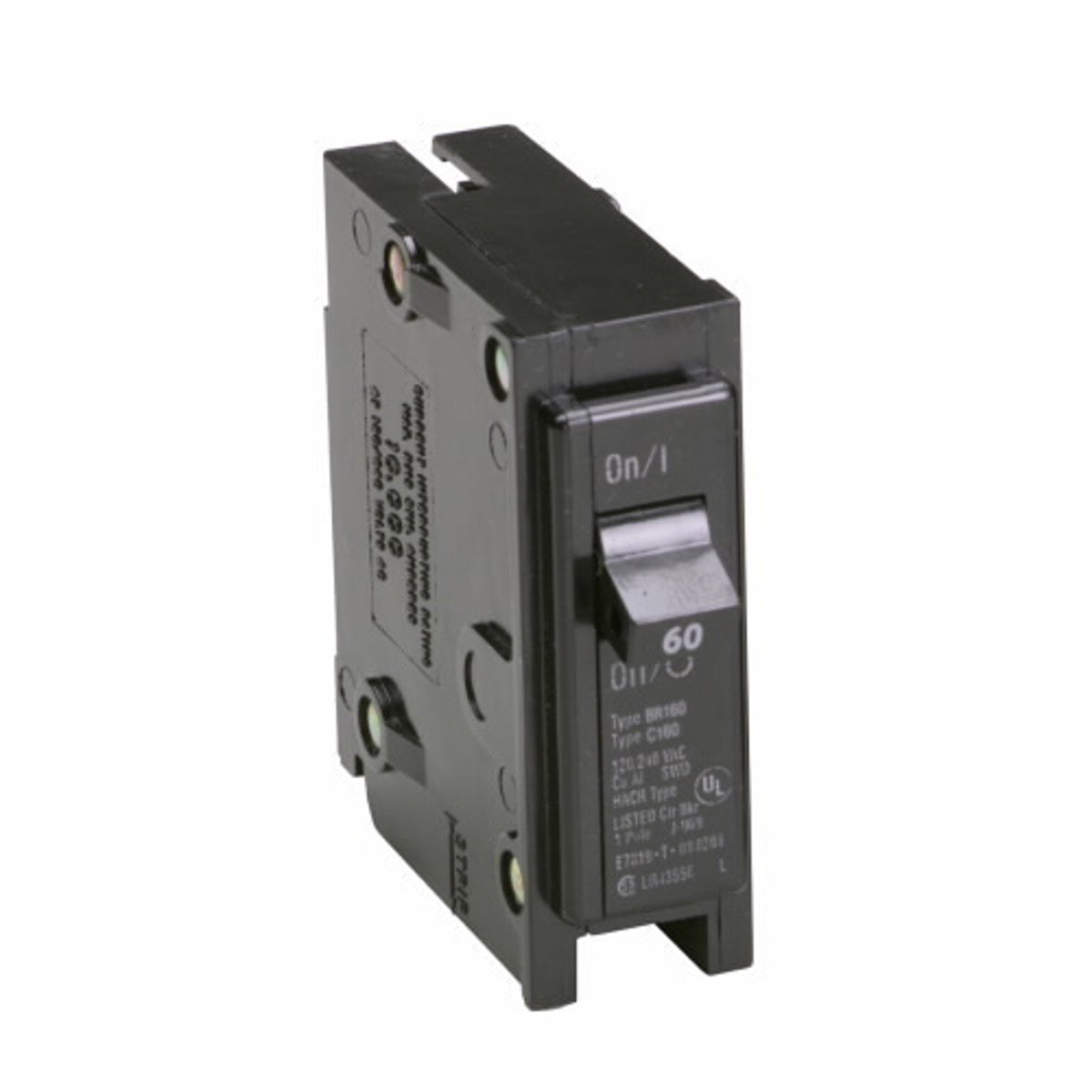

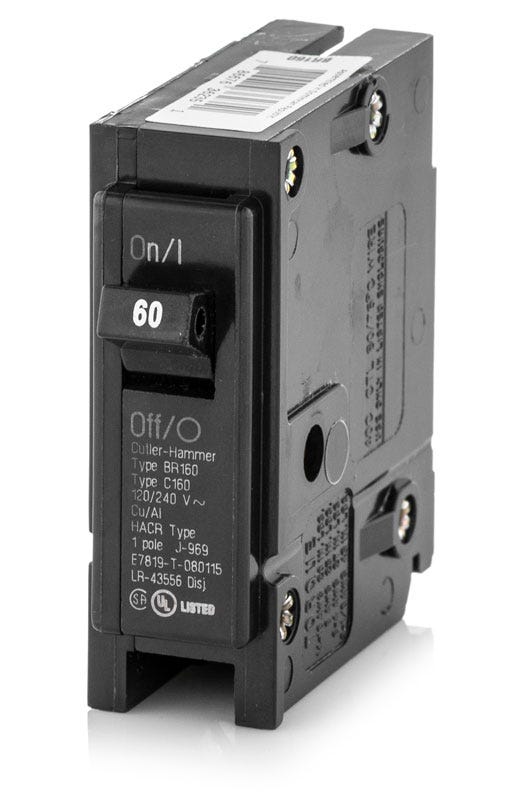

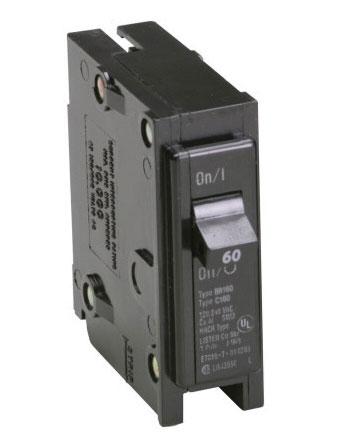

Eaton BR160 1 inch type BR plug-on circuit breaker 60 A

Product Description

The Eaton BR160 is a thermal magnetic circuit breaker designed for residential electrical systems. This 1-inch plug-on circuit breaker features a 60 A amperage rating and a 10 kAIC interrupt rating. It operates at 120/240V and is a single-pole device, compatible with #4-1/0 AWG Cu/Al wire. It is suitable for use in Type BR loadcenters, providing essential circuit protection.

• 10 kAIC interrupt rating
• 120/240V voltage rating
• 60 Ampere rating

Product Highlights

Single-pole thermal magnetic circuit breaker with plug-on mounting for Type BR loadcenters.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BR160
• Country of Origin: Dominican Republic

Technical Specifications

• UPC: 00786676362351
• Brand: Eaton
• Color: Black
• Voltage Rating: 120/240V
• Amperage Rating: 60 A
• Standards/Certifications: Federal Specifications Classification W-C375, UL 489
• Wire Size: 4-1/0 AWG
• Mounting Type: Plug-On
• Number of Poles: 1
• Interrupt Rating: 10 kAIC @ 120/240VAC
• Breaker Type: BR
• Catalog Number: BR160
• Country of Origin: Dominican Republic
• Application: Generation - Renewable Energy - Alternative Energy|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Other|Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged
• Product Type: Thermal magnetic circuit breakers
• Phase: 1
• Material: Thermoset
• Trip Type: Common/Thermal Magnetic
• Actuator Type: Handle
• Connection Type: Box Lug/Clamp
• Frequency Rating: 60 Hz
• Temperature Rating: 40 deg C
• Compatible Loadcenters: Type BR
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Available Options: Padlock Attachment, Handle Lock
• Construction Features: HACR Rated
