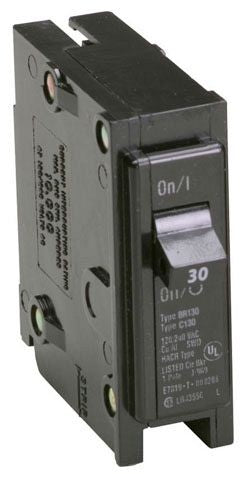

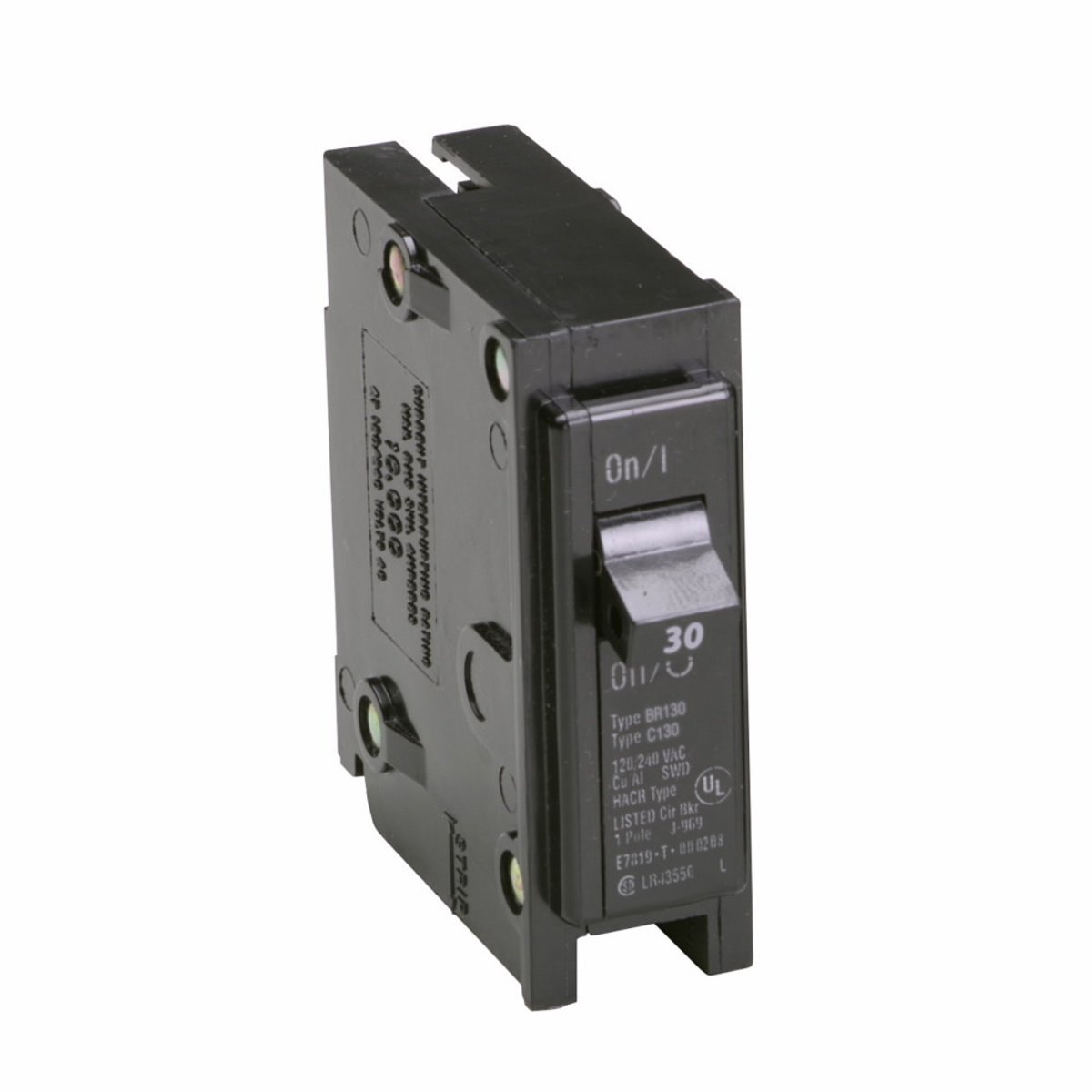

EATON BR130 Type BR Plug-On Circuit Breaker, 240 VAC, 30 Amp, 10 kAIC, 1-Pole

Product Description

The EATON BR130 Type BR Plug-On Circuit Breaker is designed for use in load centers and panelboards. This circuit breaker operates at 240 VAC with an amperage of 30 A and features a ten kAIC interrupt rating. With a single pole design, it significantly enhances safety and efficiency in electrical systems.

• Type BR thermal magnetic circuit breaker
• Rated for 240 VAC and 30 A
• Quick-make, quick-break switch mechanism

Product Highlights

This circuit breaker provides protection against overload and short circuits, making it suitable for residential and commercial use.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part No: BR130

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 deg C
• Wire Size: 14 to 4 AWG Copper/Aluminum
• Dimensions: 3 in L x 1 in W x 3 in H
• Enclosure Type: NEMA 1/3R/4X
• Standards/Approvals: UL 489, CSA Certified
