Eaton BR1224L400R BR Main Lug Load Center 400 A

Product Description

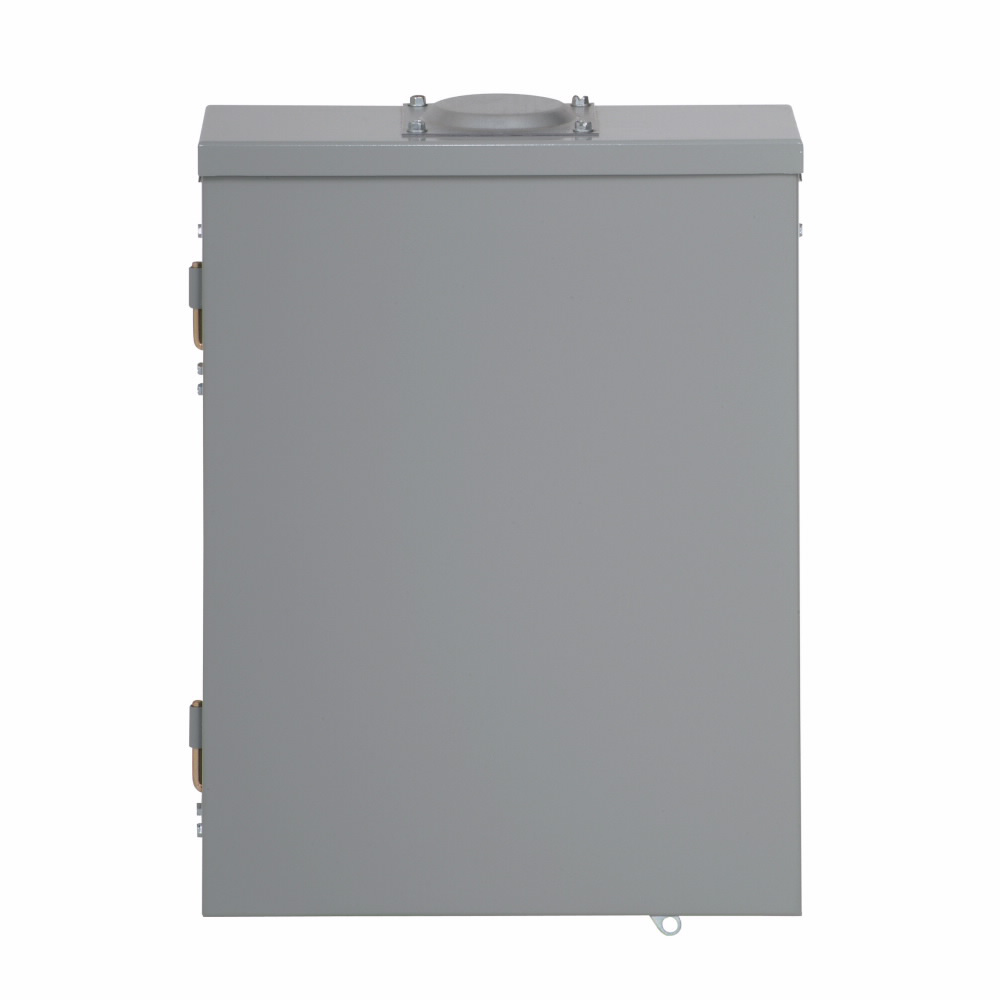

The Eaton BR1224L400R BR main lug loadcenter is rated for 400 A. Constructed with an aluminum bus and a NEMA 3R enclosure suitable for surface mounting. It accommodates type BR 1-inch breakers and supports a single-phase, 3-wire configuration at 120/240V.

• Features a tangential main knockout and single key hole mounting.
• Equipped with a factory pre-attached neutral bonding strap.
• Raintight boxes are manufactured from galvanized steel with a powder-coated, baked urethane paint finish.

Product Highlights

This Eaton load center offers a robust solution for electrical distribution, suitable for various applications requiring a reliable and durable setup.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BR1224L400R

Technical Specifications

• Type: Main Lug
• Brand: Eaton
• Width: 17.5 in
• Height: 7.5 in
• Length: 45 in
• Amperage: 400 Amp
• Bus Material: Aluminum
• Mounting Type: Surface
• Interrupt Rating: 25 kAIC
• Number of Phases: 1 Phase
• Number of Circuits: 42
• Catalog Number: BR1224L400R
• Warranty: 10 year limited
• Certifications: UL 50 UL 67
• Product Type: Main lug loadcenter
• Amperage Rating: 400 A
• Cover: Cover included
• Number of spaces: 12
• Phase: Single-phase
• NEMA rating: NEMA 3R
• Number of Poles: 24
• Series: BR
• Voltage Rating: 120/240 VAC
• Wire Size: 3/0 AWG to 400 kcmil
• Wiring Configuration: 3-Wire
• Enclosure Type: NEMA 3R
• Breaker Type: BR
• Dimensions: 45 in L x 17.5 in W x 7.5 in H
