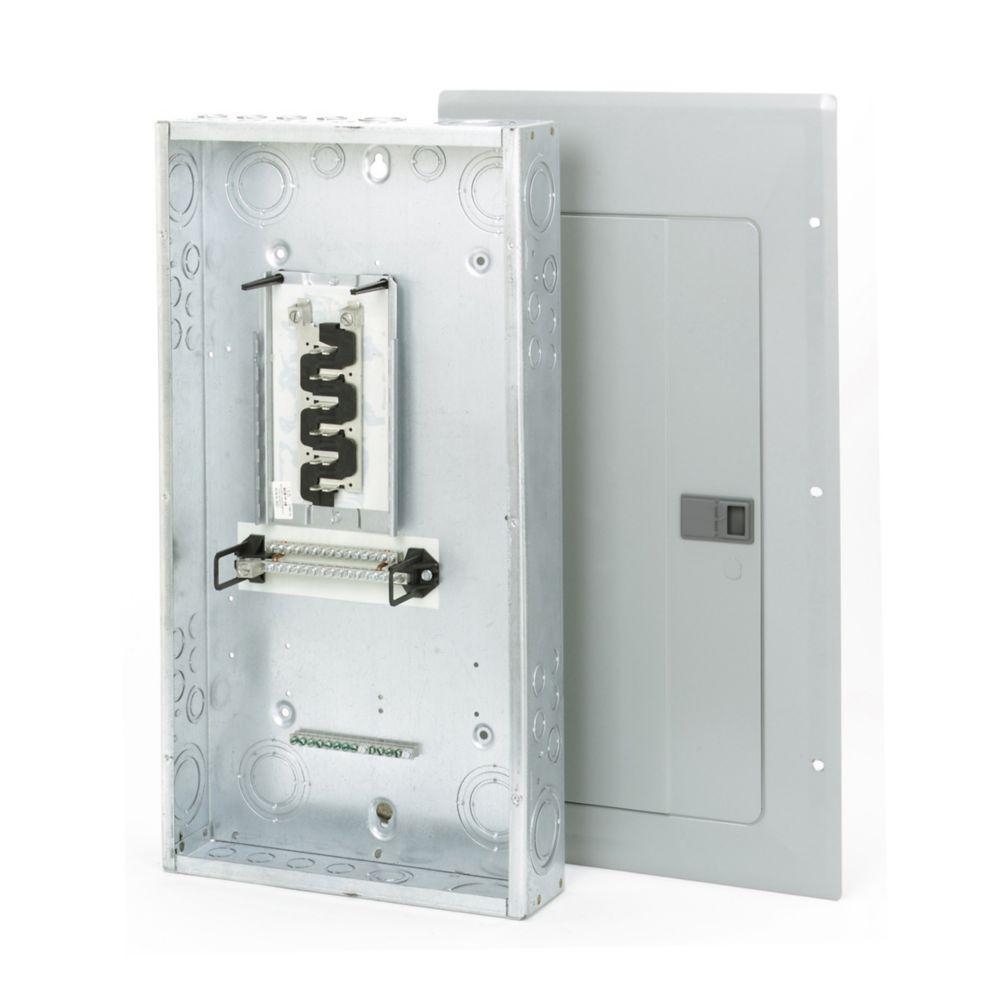

Eaton BR1224L125RIS Riser Panel Loadcenter 125A

Product Description

The EATON BR1224L125RIS riser panel is a loadcenter with an offset interior that allows riser cables to pass through the enlarged gutter. It utilizes lay-in tap lugs, allowing contractors to strip a length of the riser cable insulation and tap off to the riser panel main lugs. This single-phase loadcenter has a voltage rating of 120/240 VAC and an amperage rating of 125 A.

• Without feed-through lugs
• 6 to 2/0 AWG copper/aluminum wire size
• Metallic housing material

Product Highlights

This riser panel loadcenter is ideal for use in assisted living homes, dormitories, public housing complexes, and apartments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BR1224L125RIS
• Country of Origin: USA

Technical Specifications

• Breaker Type: BR
• Housing Material: Metallic
• Number of Circuits: 24
• Number of Spaces: 12
• Type: 1-Phase
• Wire Size: 6 to 2/0 AWG Cu/Al
• Wiring Configuration: 3-Wire
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 24
• Interrupt Rating: 10 kA
• Phase: Single-phase
• Bus Material: Aluminum
• Cover Type: Cover included
• Enclosure: Riser panel
• Enclosure Material: Metal
• Number of Phases: 1 Phase
• Number of Wires: 3 Wire
• Product Length/Depth: 3.88 in
• Product Width: 14.31 in
• Warranty: 10 year
• Certifications: UL 67 UL 50
• Product Type: Main lug loadcenter
• Special features: No feed-thru lugs
• Mounting: Surface
• IP/NEMA Rating: NEMA 3R
• Mains: Lugs
• Main Wire: Cu/Al 6-2/0
