Product Description

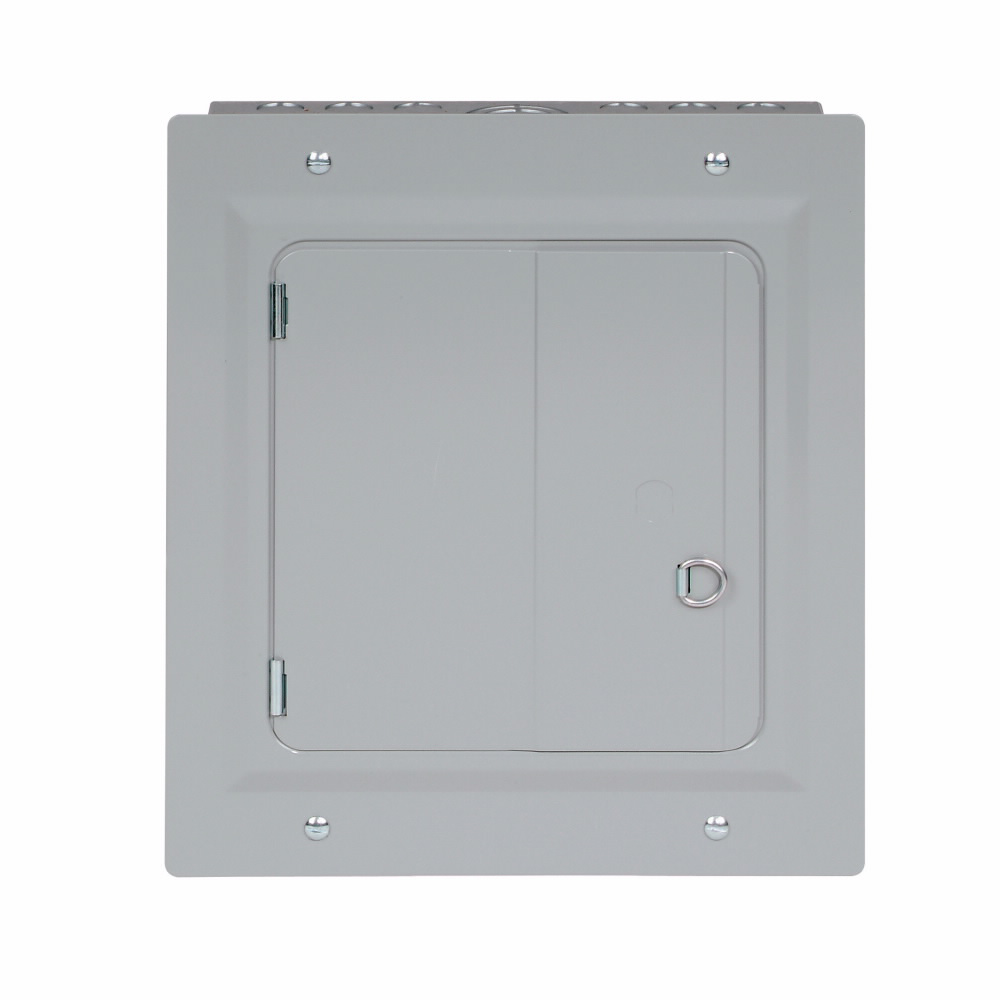

The Eaton BR1020B100FRNV is a main circuit breaker loadcenter designed for ease of installation. This loadcenter houses branch circuit breakers and wiring to distribute power effectively to individual circuits. It serves as the main breaker for service entrances or as a main lug when adding circuits to an existing service. The main breaker protects the entire panel and can function as a service disconnect. The branch breakers safeguard wires leading to individual electrical loads such as fixtures and outlets.
- Compatible with Type BR 1-inch breakers.
- Features ten spaces and twenty circuits for extensive electrical management.
- Includes a metallic enclosure rated NEMA 3R for durability.
Product Highlights
This loadcenter is suitable for residential and commercial electrical systems. It ensures reliable performance and safety for all connected circuits.
Product Information
Standard Information
-
Brand: Eaton
-
MPN: BR1020B100FRNV
Technical Specifications
-
Dimensions: Fifteen point one inches long x twelve point five inches wide x four point two inches high
-
Weight: Eleven point one pounds
-
Voltage Rating: One hundred twenty to two hundred forty volts
-
Amperage Rating: One hundred amps
-
Number of Circuits: Twenty
-
Enclosure Type: NEMA 3R
-
Conductor Size: Four to one-ought AWG
-
Interrupt Rating: Ten kAIC
-
Number of Spaces: Ten
