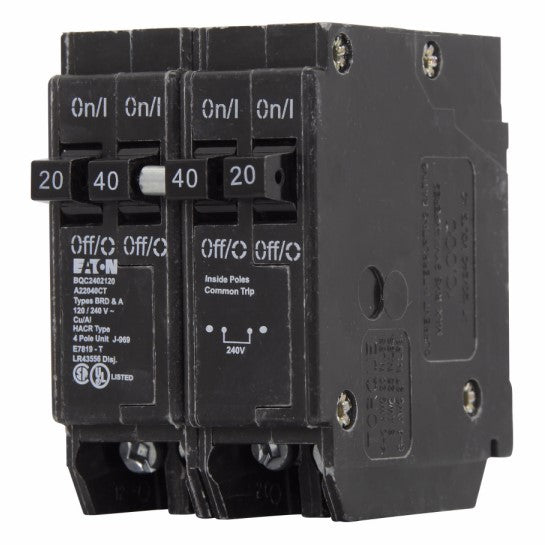

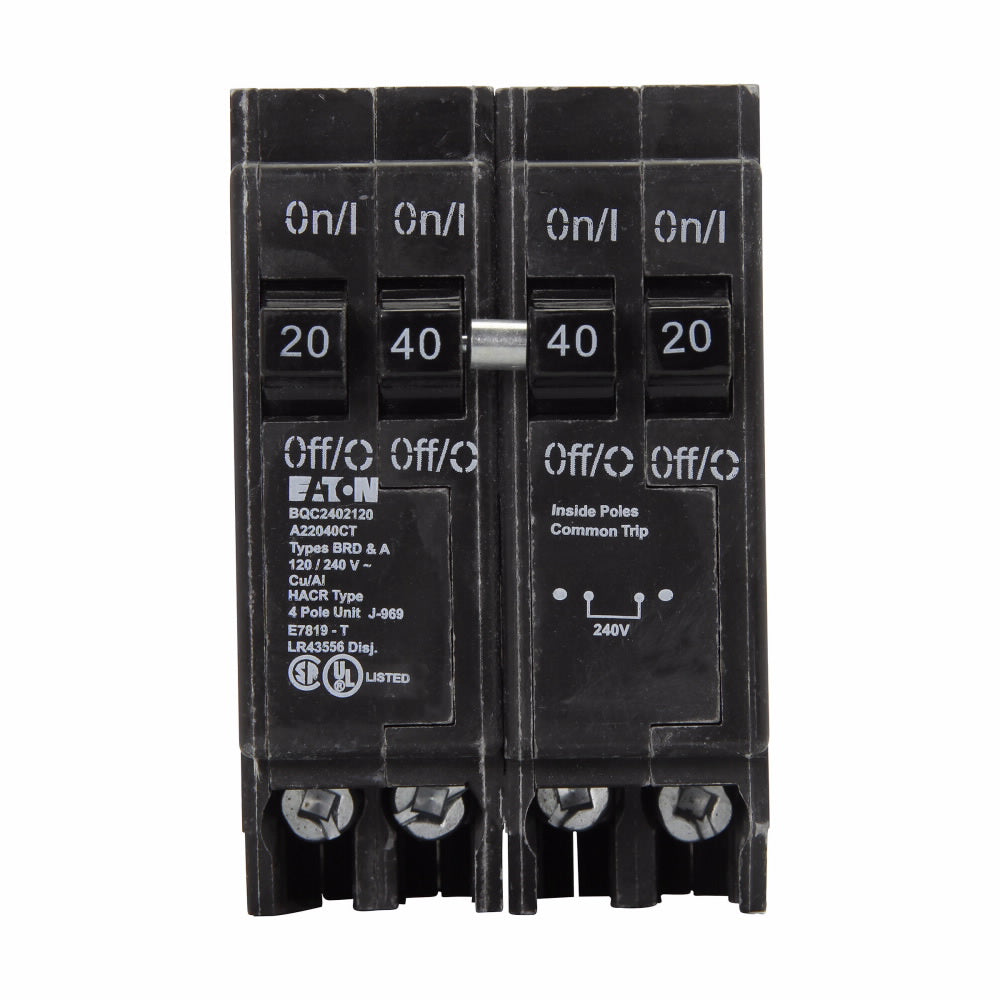

EATON BQC2402120 Type BQC Quadplex Circuit Breaker, 120/240 VAC, (2) 20 A, (1) 40 A, 10 kA Interrupt, 4 Poles

Product Description

EATON BQC2402120 is a Type BQC Quadplex circuit breaker. It operates at 120/240 VAC, includes two single-pole 20 Amp breakers and a two-pole 40 Amp breaker. The breaker has a ten kA interrupt rating and is designed for four poles with a common/thermal magnetic trip.

• Amperage: (2) 20 A and (1) 40 A
• Voltage: 120/240 VAC
• Mounting Type: Plug-On

Product Highlights

This circuit breaker is suitable for residential applications and industrial use. It provides reliable protection against overloads and short circuits, ensuring safety for electrical systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer: EATON

Technical Specifications

• Type: Quadplex
• Phase: 1
• Wire Size: 14 to 4 AWG
• Dimensions: 3 in L x 2 in W x 3 in H
• Trip Type: Common/Thermal Magnetic
• Interrupt Rating: 10 kAIC
• Number of Poles: 4
• Temperature Rating: 600 to 750 deg C
• Application: Suitable for residential and light industrial use
