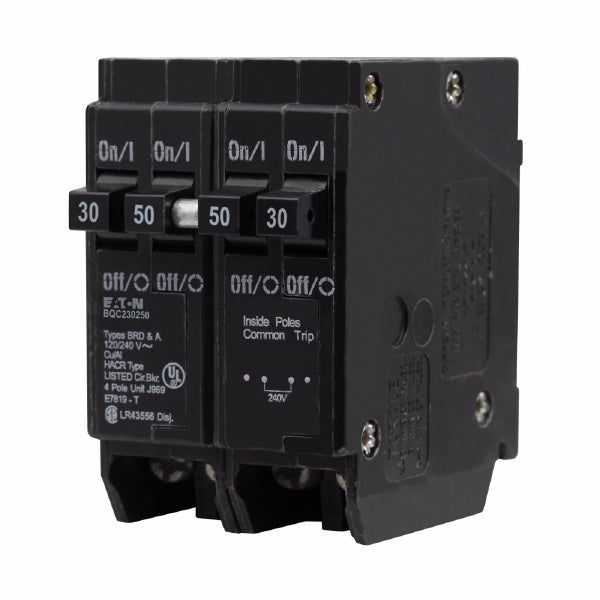

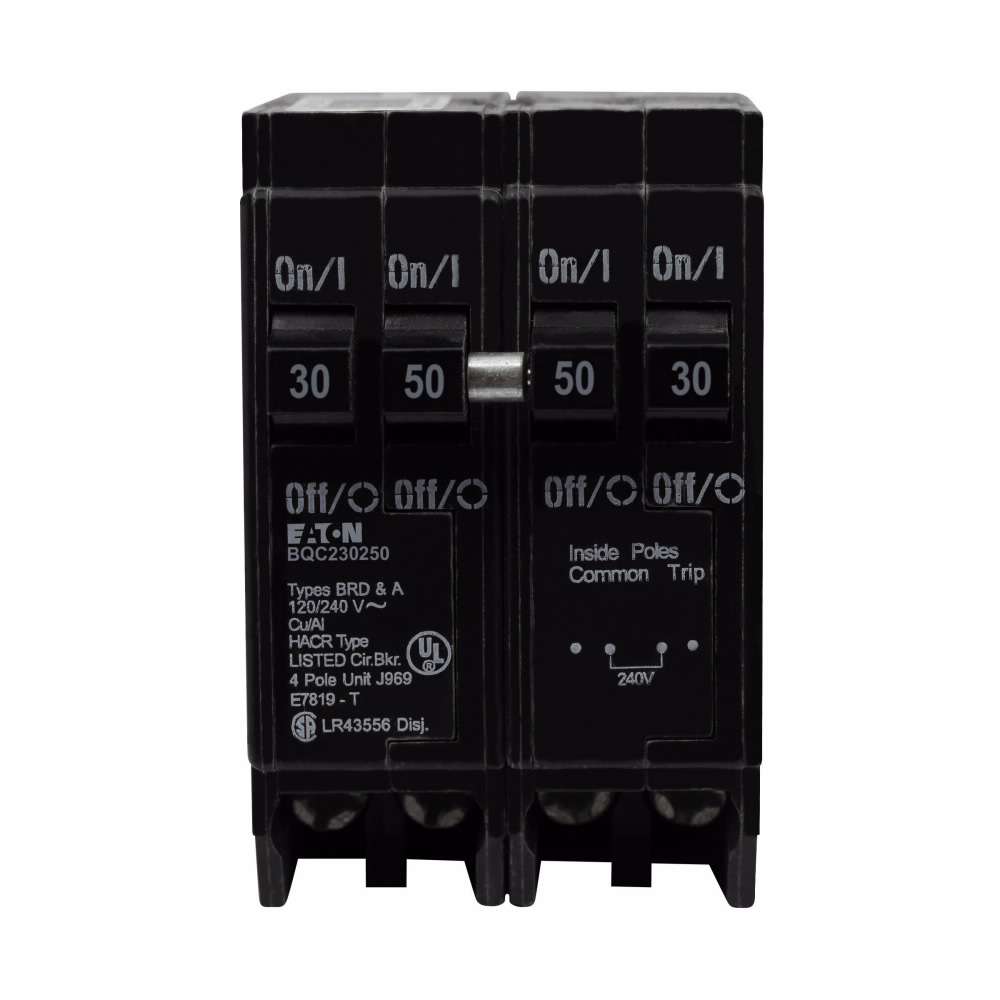

EATON BQC230250 Type BQC Quadplex Circuit Breaker, 120/240 VAC, (1) 30 A, (1) 50 A, 10 kA Interrupt, 4 Poles

Product Description

The EATON BQC230250 Type BQC Quadplex Circuit Breaker operates at 120/240 VAC and includes configurations for one two-pole thirty amp and one two-pole fifty amp circuit. Its interrupt rating is 10 kAIC, making it suitable for various applications in electrical distribution systems.

• Thermal/Magnetic trip mechanism for efficient operation
• Plug-on mounting for easy installation
• Includes a rejection tab feature to prevent incorrect installation

Product Highlights

This circuit breaker is designed for load centers and main panels, ensuring reliable distribution of electrical power to individual circuits. It protects against overloads and short circuits, enhancing safety in electrical systems.

Product Information

Standard Information

• Brand: EATON
• Model: BQC230250

Technical Specifications

• Type: Quadplex
• Voltage Rating: 120/240 VAC
• Amperage Rating: (1) 30 A, (1) 50 A
• Number of Poles: 4
• Interrupt Rating: 10 kAIC
• Temperature Rating: 600 to 750 degrees Celsius
• Trip Type: Thermal/Magnetic
• Wire Size: 14 to 4 AWG
• Mounting Type: Plug-On
