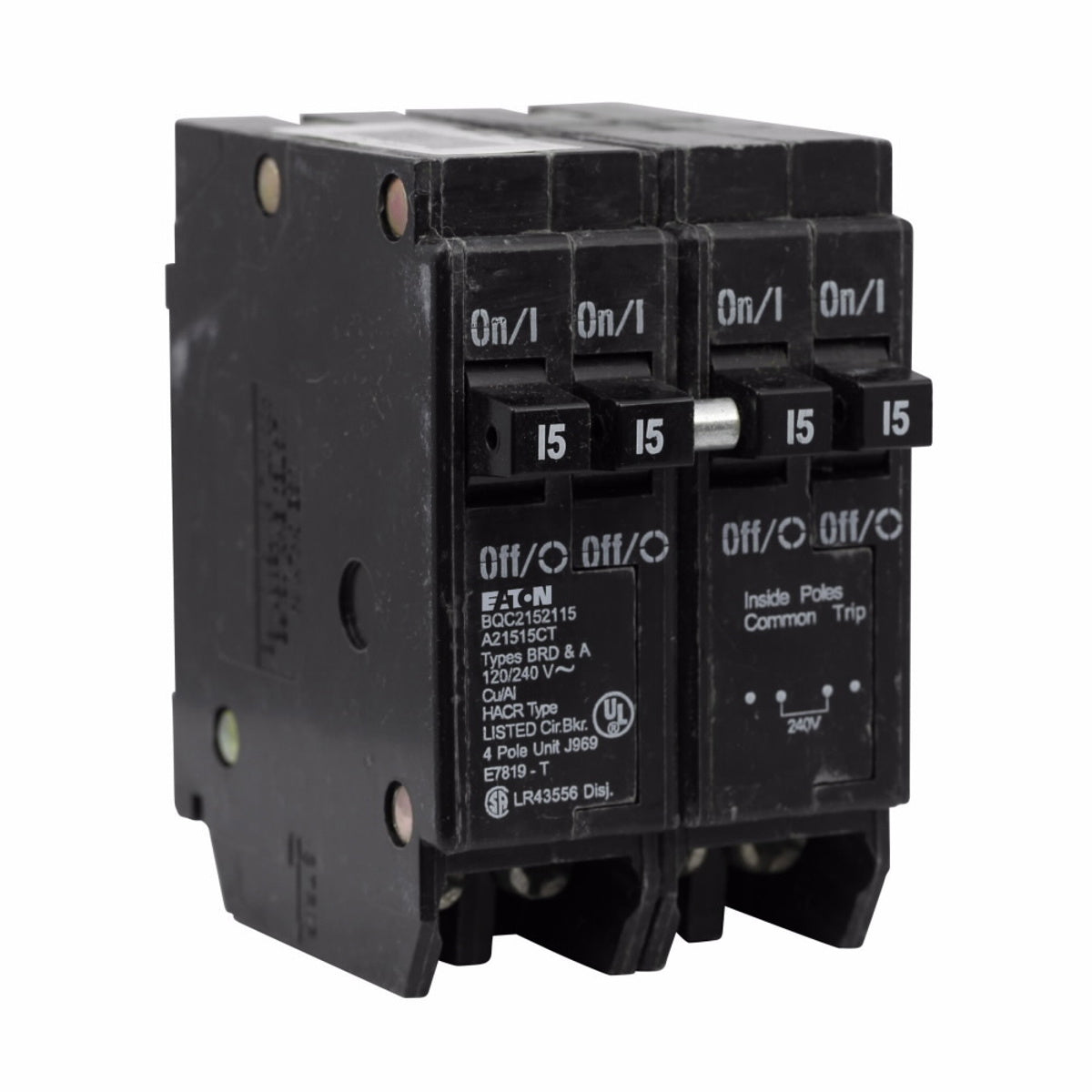

EATON BQC215215 Type BD Quadplex 1-Inch CTL Plug-On Thermal-Magnetic Circuit Breaker, 240 VAC, (2) Two-Pole 15 Amp, 10 kAIC, 4-Pole

Product Description

The EATON BQC215215 is a thermal-magnetic circuit breaker designed for use in a variety of electrical applications. It operates at a voltage rating of 120/240 VAC and provides a dual-pole solution with a fifteen-amp capacity. This model is suitable for residential settings and is compatible with plug-on mounting systems.

• Four-pole design for versatile installation
• Includes a rejection tab for secure connections
• Standard interrupting capacity of ten kAIC

Product Highlights

This circuit breaker is ideal for load center applications, safeguarding electrical systems from overheating and short-circuits.

Product Information

Standard Information

• Catalog Number: BQC215215
• Brand: EATON

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 15 A
• Interrupt Rating: 10 kAIC
• Number of Poles: 4
• Trip Type: Common/LI
• Wire Size: 14 to 4 AWG
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 °C
