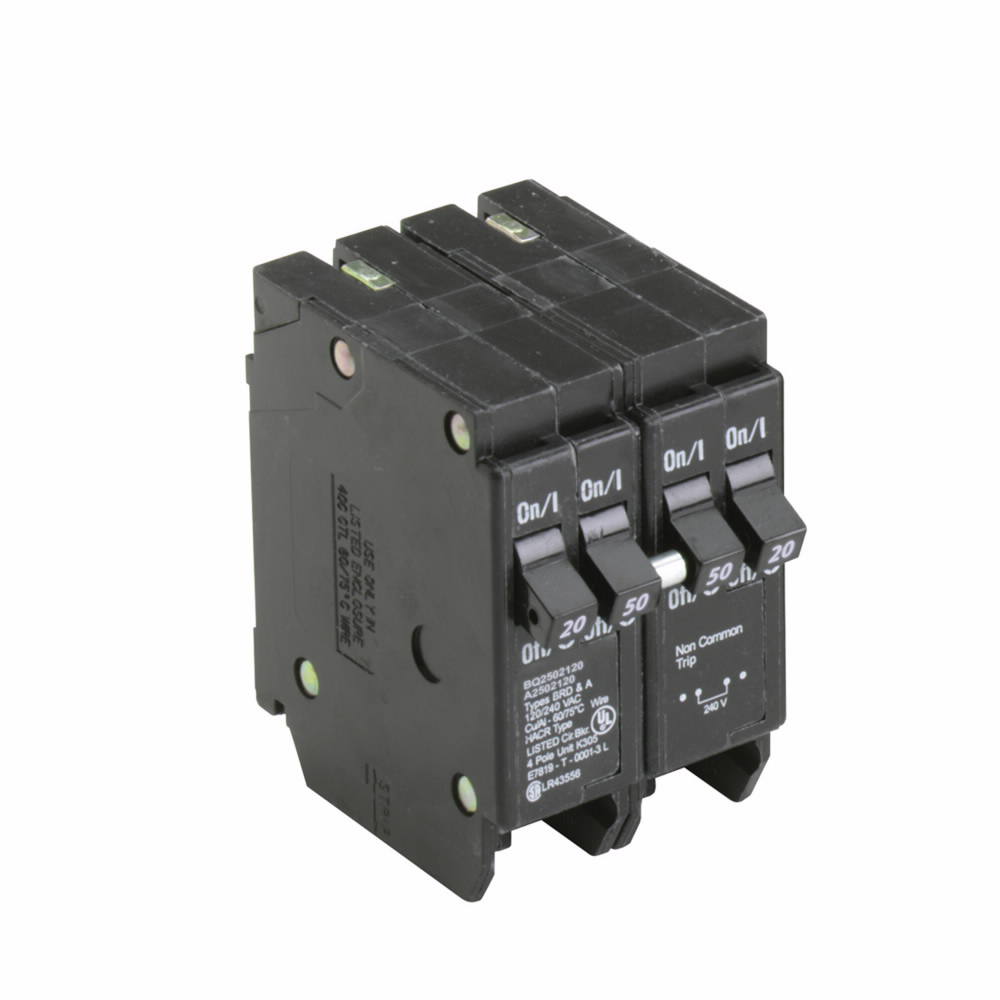

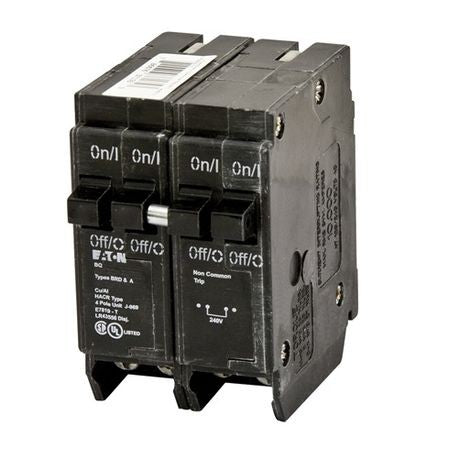

Eaton BQ2502120 1 Inch CTL Class Type BQ Plug-On Circuit Breaker

Product Description

Eaton BQ2502120 is a thermal magnetic circuit breaker designed for residential use. It features a Type BQ plug-on design ideal for load centers and panelboards. This circuit breaker is suitable for a range of applications, including arc fault and ground fault circuit interruption.

• Thermal magnetic design
• Includes a rejection tab feature
• Supports various wire sizes from fourteen to four AWG

Product Highlights

This circuit breaker is effective in protecting the wiring from overheating and short circuits while ensuring compliance with UL standards.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Type: Type BQ 1-Inch CTL
• Voltage Rating: 120/240 Volt
• Amperage: 20 Amp (Single-Pole), 50 Amp (Two-Pole)
• Number of Poles: 4 Pole
• Interrupt Rating: 10 kAIC
• Trip Type: Independent
• Wire Size: 14-4 AWG Copper/Aluminum
• Height: 3 inches
• Length: 3 inches
• Weight: 0.9 lb
