Product Description

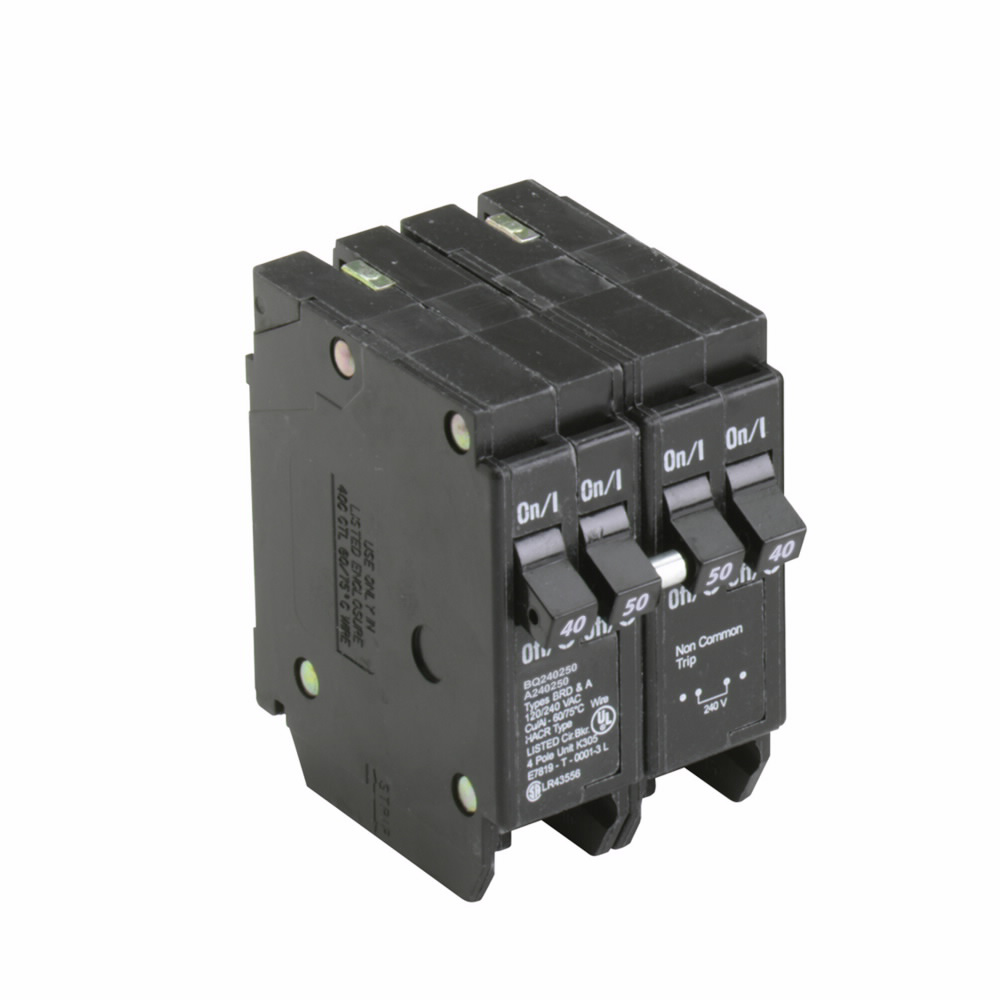

The Eaton BQ240250 is a thermal magnetic circuit breaker designed for residential applications. This plug-on circuit breaker is compatible with BR loadcenters and features a rejection tab for easy installation. Rated for 120/240 volts and capable of handling 40 amps and 50 amps across four poles, this breaker provides reliable overcurrent protection.
- Type BQ 1-Inch CTL plug-on circuit breaker
- 10 kAIC interrupt rating
- Independent thermal magnetic trip feature
Product Highlights
This circuit breaker is suitable for residential load centers and is UL listed, meeting federal specifications. It supports wire sizes from 14 to 4 AWG for both copper and aluminum conductors.
Product Information
Standard Information
-
Brand: Eaton
-
Manufacturer Part Number: BQ240250
Technical Specifications
-
Voltage Rating: 120/240 V
-
Amperage Rating: 40 Amp, 50 Amp
-
Number of Poles: 4
-
Interrupt Rating: 10 kAIC
-
Trip Type: Independent
-
Wire Size: 14-4 AWG
-
Height: 3.1 inches
-
Length: 1.4 inches
-
Weight: 2.5 lb
-
Country of Origin: Dominican Republic
