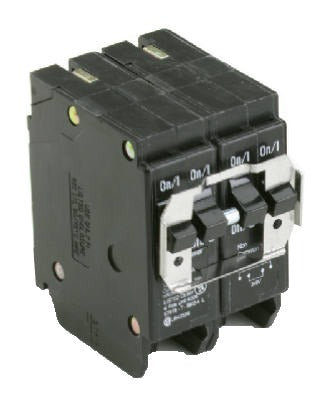

Eaton BQ230230 30A Double Pole Circuit Breaker Quadplex

Product Description

The EATON CORPORATION BQ230230 is a quadplex double pole circuit breaker rated at 30 amps and 120/240 volts, housed in a 2 inch case. It provides overcurrent protection for branch circuits in residential and light commercial electrical panels. Each pole trips independently, allowing for flexible circuit configurations within a single quadplex slot. Licensed electricians install this breaker during new construction, panel upgrades, or branch circuit additions. The 30 amp rating suits circuits serving high-draw appliances and HVAC equipment. Sold in a package of 5 units, it suits contractors stocking up for multi-unit jobs.

This breaker is designed for use in residential and light commercial load centers where quadplex configurations are required. The 2 inch case size fits standard quadplex panel slots. Its 120/240 volt rating makes it appropriate for both single-phase 120 volt branch circuits and 240 volt dedicated appliance circuits. Electricians installing subpanels, upgrading service equipment, or adding circuits during renovation work will find this breaker suited to those applications.

Key Features

• Double pole configuration rated at 30 amps per pole
• 120/240 volt rating for single-phase residential and light commercial use
• Quadplex design fits standard 2 inch case panel slots
• Includes individual UPC bar code for inventory and job-site tracking
• Sold in a bulk pack of 5 units for contractor convenience

Compatibility

Designed as an OEM-style replacement and new-installation breaker for residential and light commercial load centers accepting quadplex 2 inch case circuit breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify absence of voltage before handling any breaker or bus connection. Ensure the panel accepts quadplex-style breakers before installation. Do not exceed the breaker's 30 amp continuous current rating when sizing connected loads.

Technical Specifications

• Amperage: 30 amps
• Voltage: 120/240 volts
• Configuration: Double Pole Quadplex
• Case Size: 2 inches
• Package Quantity: 5 units
• Weight: 3.5 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: BQ230230
