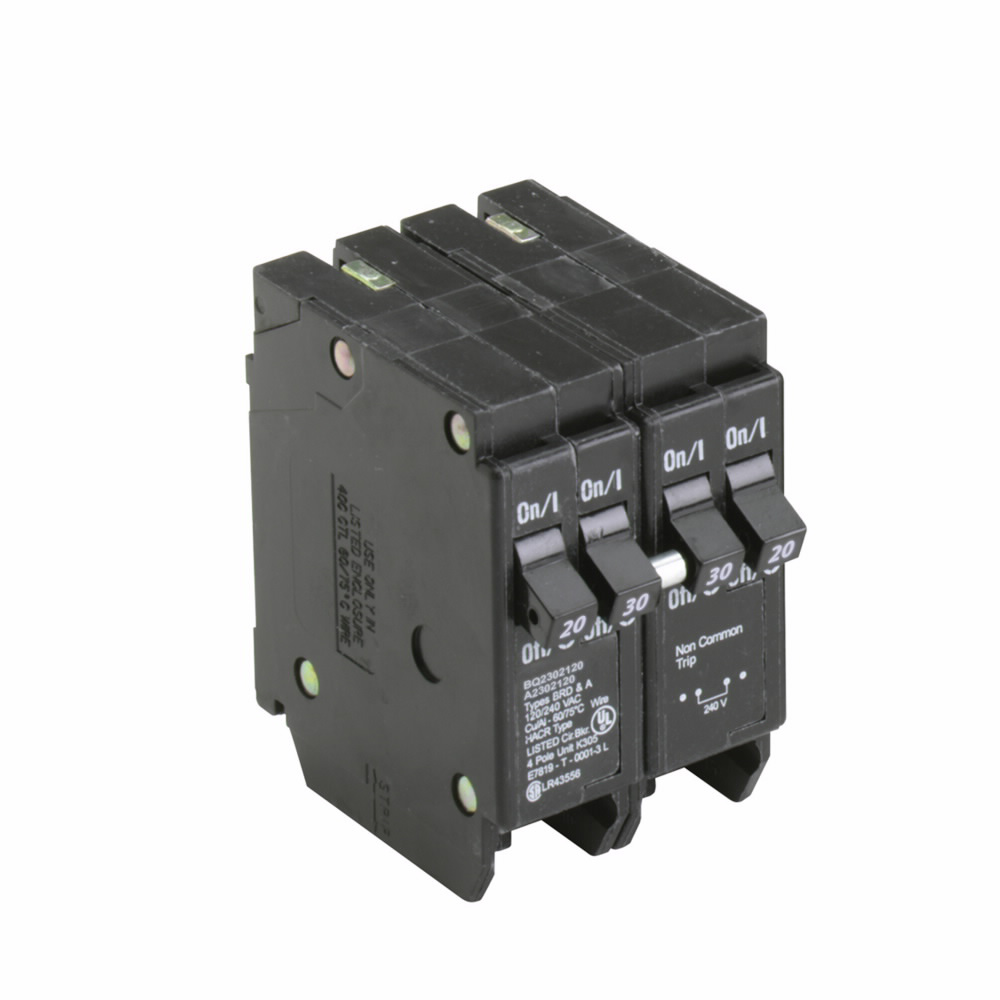

Eaton BQ2302120 1 Inch CTL Class Type BQ Plug-On Circuit Breaker

Product Description

Eaton's BQ2302120 is a 1 Inch CTL Class Type BQ Plug-On Circuit Breaker designed for residential applications. This thermal magnetic circuit breaker features independent trip mechanisms. It includes two single-pole breakers rated for twenty amps and one two-pole breaker rated for thirty amps, with a ten kAIC interrupt rating. This unit can handle voltages of one hundred twenty/240 volts.

• Two single-pole, twenty amp circuits
• One two-pole, thirty amp circuit
• Plug-on mounting type

Product Highlights

This breaker is ideal for circuit protection in load centers, and it provides safety features like a rejection tab to prevent improper installation.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Catalog Number: BQ2302120
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 to 30 A
• Number of Poles: 4
• Trip Type: Independent
• Interrupt Rating: 10 kAIC
• Dimensions: 3 in L x 3 in H
• Wire Size: 14 to 4 AWG
