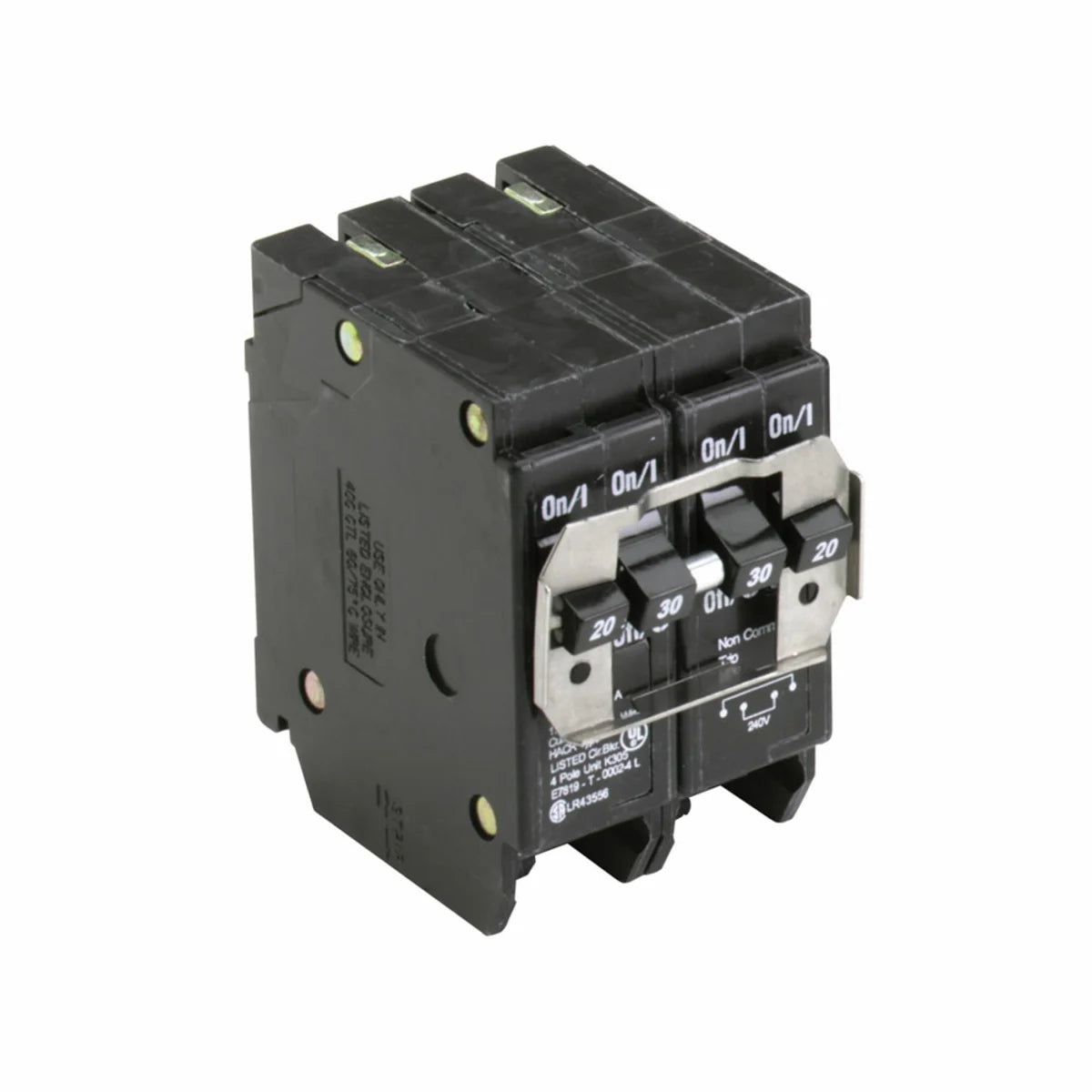

Eaton BQ220230 Type BQ CTL Quadplex Circuit Breaker, 120/240 VAC, 20 to 30 A, 10 kA Interrupt, 4 Poles

Product Description

The Eaton BQ220230 Type BQ CTL Quadplex Circuit Breaker is designed for residential and commercial electrical systems. This dual breaker integrates functions for two circuits while maintaining safety and compliance with industry standards.

• Dual functionality for circuits with independent thermal magnetic trip
• Voltage rated for 120/240VAC with a ten kA interrupt rating
• Plug-on type for easy installation in load centers

Product Highlights

Provides effective circuit protection against overload and short circuits. The breaker incorporates a rejection tab feature for enhanced safety.

Product Information

Standard Information

• Catalog Number: BQ220230
• Brand: Eaton

Technical Specifications

• Amperage Rating: 20 to 30 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 4
• Interrupt Rating: 10 kA
• Temperature Rating: 60 to 75 degrees C
• Trip Type: Independent
• Wire Size: 14 to 4 AWG
• Mounting Type: Plug-On
• Country of Origin: Dominican Republic
• Standards/Approvals: UL 489, Federal Specification W-C375
