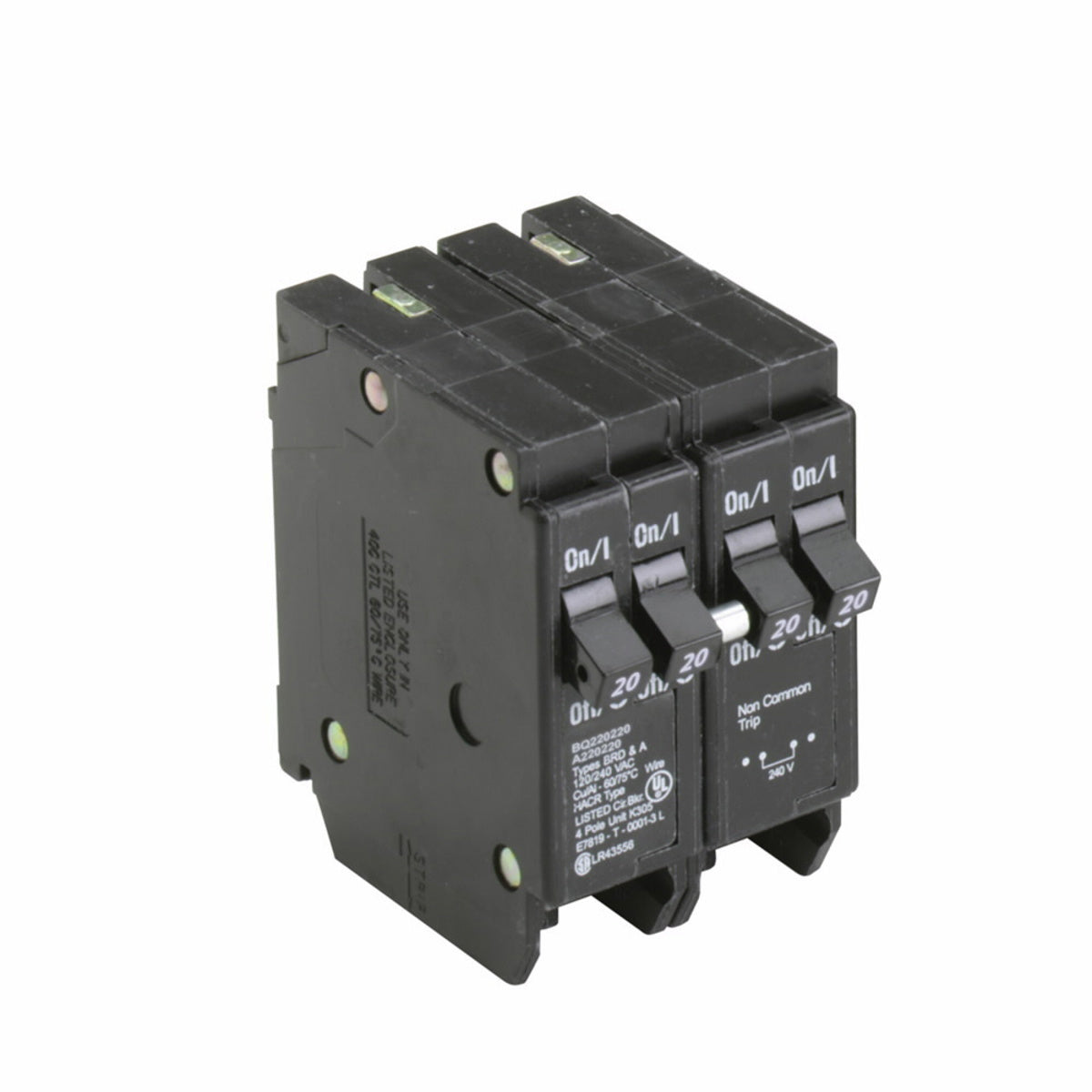

Eaton BQ220220 Eaton BR Thermal Magnetic Circuit Breaker, Type BQ CTL, 20 A, 120/240V

Product Description

Eaton’s BQ220220 is a thermal magnetic circuit breaker designed for use in load centers and panelboards. This device is suitable for various applications, including conventional and renewable energy systems, and marine environments. The circuit breaker includes a rejection tab feature and a two-pole configuration which allows for easy installation in BR-style load centers.

• Breakers are rated for 20 Amps and have a voltage rating of 120/240 VAC.
• It features a 10 kA interrupt rating for reliable performance.
• Compatible with wire sizes from 14 to 4 AWG for both copper and aluminum wire.

Product Highlights

Ideal for circuit protection in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: BQ220220

Technical Specifications

• Number of Poles: 2
• Application: Type BR load centers and circuit protection
• Interrupt Rating: 10 kA
• Voltage Rating: 120/240 V
• Trip Type: Independent
• Temperature Rating: 60 to 75 deg C
• Width: 1 inch (25.4 mm) per pole
