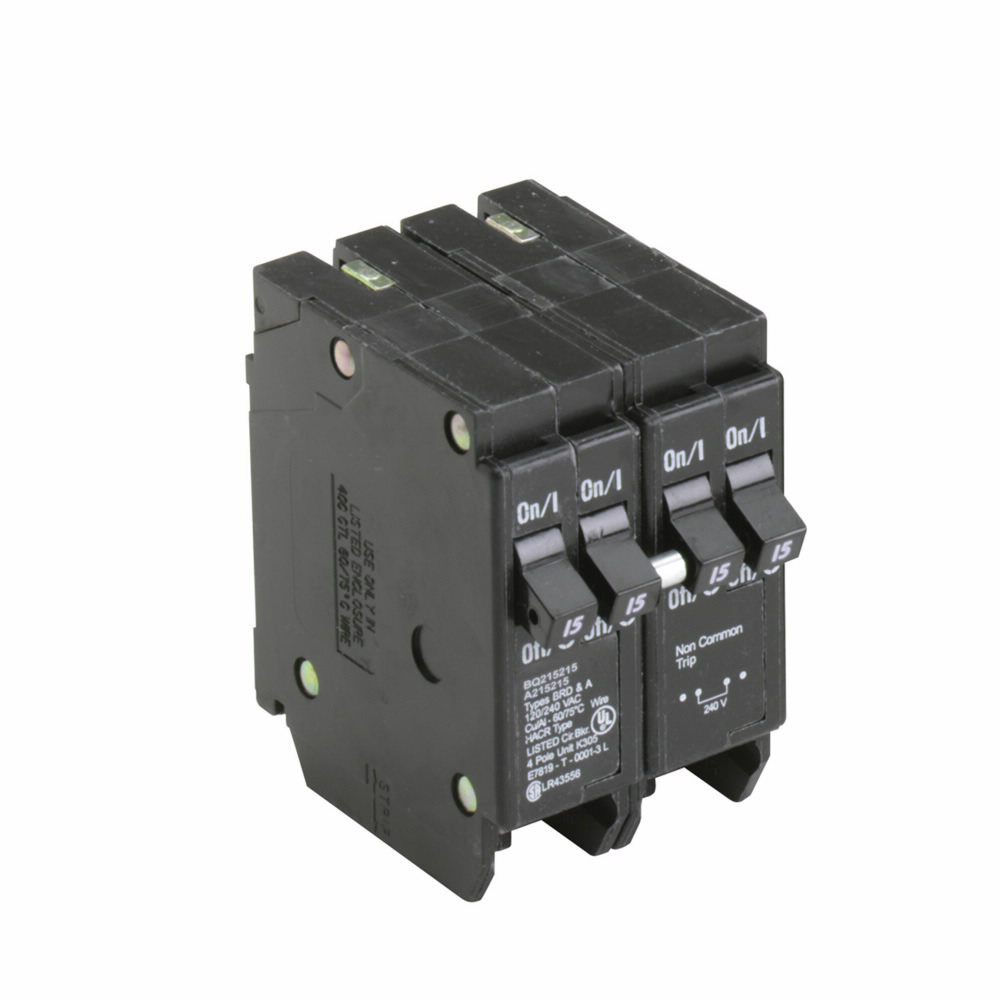

Eaton BQ215215 1 Inch CTL Class Type BQ Plug-On Circuit Breaker

Product Description

Eaton BQ215215 is a thermal magnetic circuit breaker designed for residential power distribution. It is a Type BQ plug-on circuit breaker that fits into load centers, panelboards, and similar devices. This breaker includes a rejection tab feature for secure installation and safety.

• Two-pole configuration at fifteen amperes rating
• Suitable for 120/240 volt applications
• UL 489 compliant with a ten kA interrupting capacity

Product Highlights

This circuit breaker is designed to protect electrical wiring from overheating and short-circuits, making it ideal for both new installations and upgrades in residential settings.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: BQ215215

Technical Specifications

• Number of Poles: Four
• Voltage Rating: 120/240 Volts
• Amperage Rating: 15 Amps
• Weight: 0.9 lb
• Dimensions: 3 inches length x 3 inches height
• Wire Size: 14-4 AWG Cu/Al
• Interrupt Rating: 10 kAIC
• Trip Type: Independent
