Eaton BP16E24 Push-type Conduit Beam Fastener

Product Description

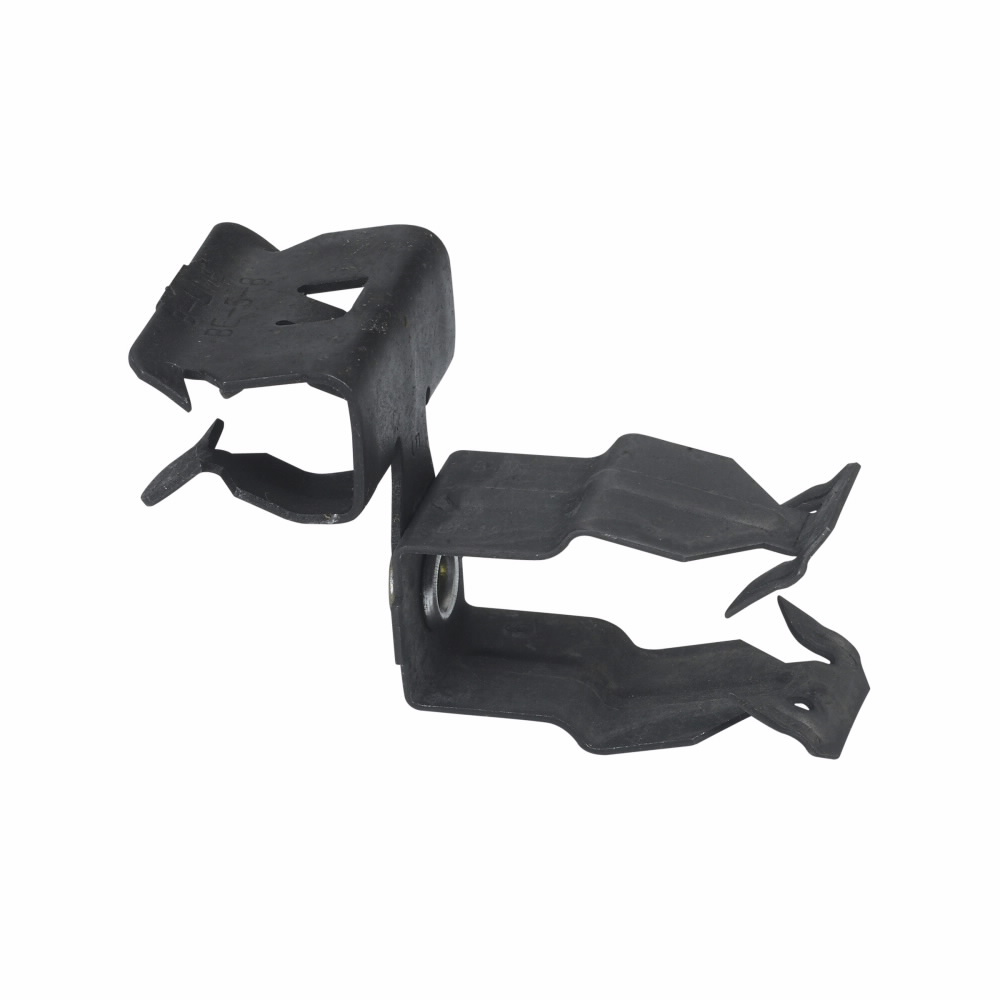

The EATON BP16E24 is a push-type conduit to beam fastener from the B-Line series, designed to secure conduit to beam flanges quickly and without tools. It accepts 1 inch EMT and 0.75 inch IMC or rigid conduit, making it a versatile fastener for a range of conduit runs in commercial and industrial electrical installations. The fastener body measures 1 inch in height, 1 inch in length, and 1 inch in width, and weighs 0.067 pounds. Electricians use this fitting where fast, repeatable conduit attachment to steel beam flanges is required, reducing labor time on large conduit support layouts.

The BP16E24 is suited for use in commercial construction, industrial facilities, and any application where conduit must be routed along structural steel beams. The push-type design allows single-handed installation onto beam flanges with a minimum mount thickness of 0.13 inches and a maximum mount thickness of 0.25 inches. It is commonly installed during rough-in phases where multiple conduit runs are supported by overhead or horizontal structural steel members.

Key Features

• Push-type design allows fast, tool-free attachment to beam flanges
• Supports 1 inch EMT conduit
• Supports 0.75 inch IMC and rigid conduit
• Fits beam flanges from 0.13 inches to 0.25 inches thick
• Compact 1 inch x 1 inch x 1 inch body minimizes footprint on the beam
• Lightweight at 0.067 pounds for easy bulk handling on the job

Compatibility

Designed for use with 1 inch EMT and 0.75 inch IMC or rigid conduit on steel beam flanges with a thickness between 0.13 inches and 0.25 inches. Part of the EATON B-Line series conduit support system.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit support spacing and securement. Verify the beam flange thickness falls within the 0.13 inch to 0.25 inch mounting range before installing. De-energize any circuits running through the conduit before making final connections. Do not exceed the conduit size ratings for this fastener.

Technical Specifications

• Conduit Type Supported: 1 inch EMT, 0.75 inch IMC, Rigid
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Minimum Mount Thickness: 0.13 inches
• Maximum Mount Thickness: 0.25 inches
• Weight: 0.067 pounds
• Mount Location: Beam Flange
• UPC: 781011194659

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP16E24
