Eaton BP/TL-A Time-delay Plug Fuse 15A 20A 30A

Product Description

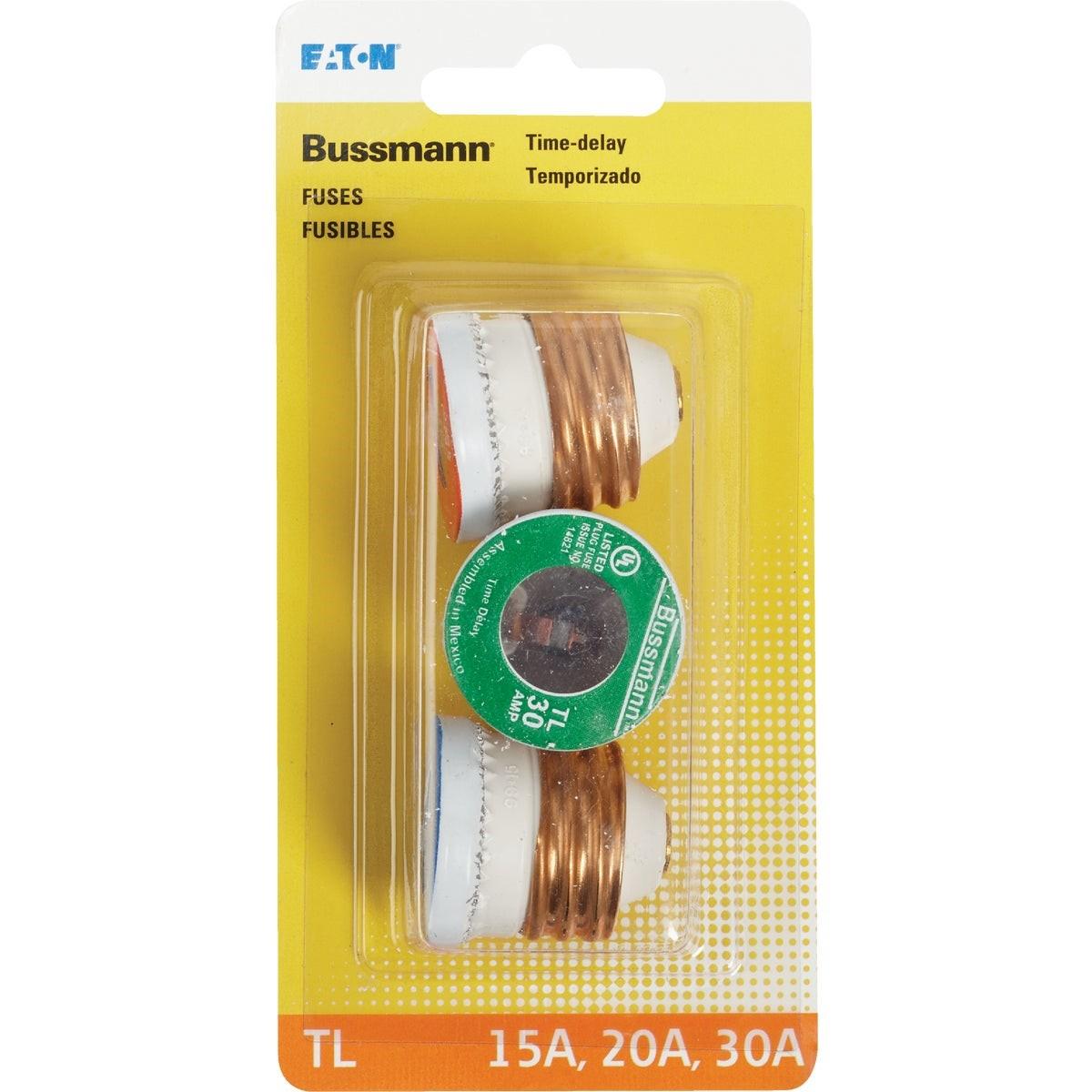

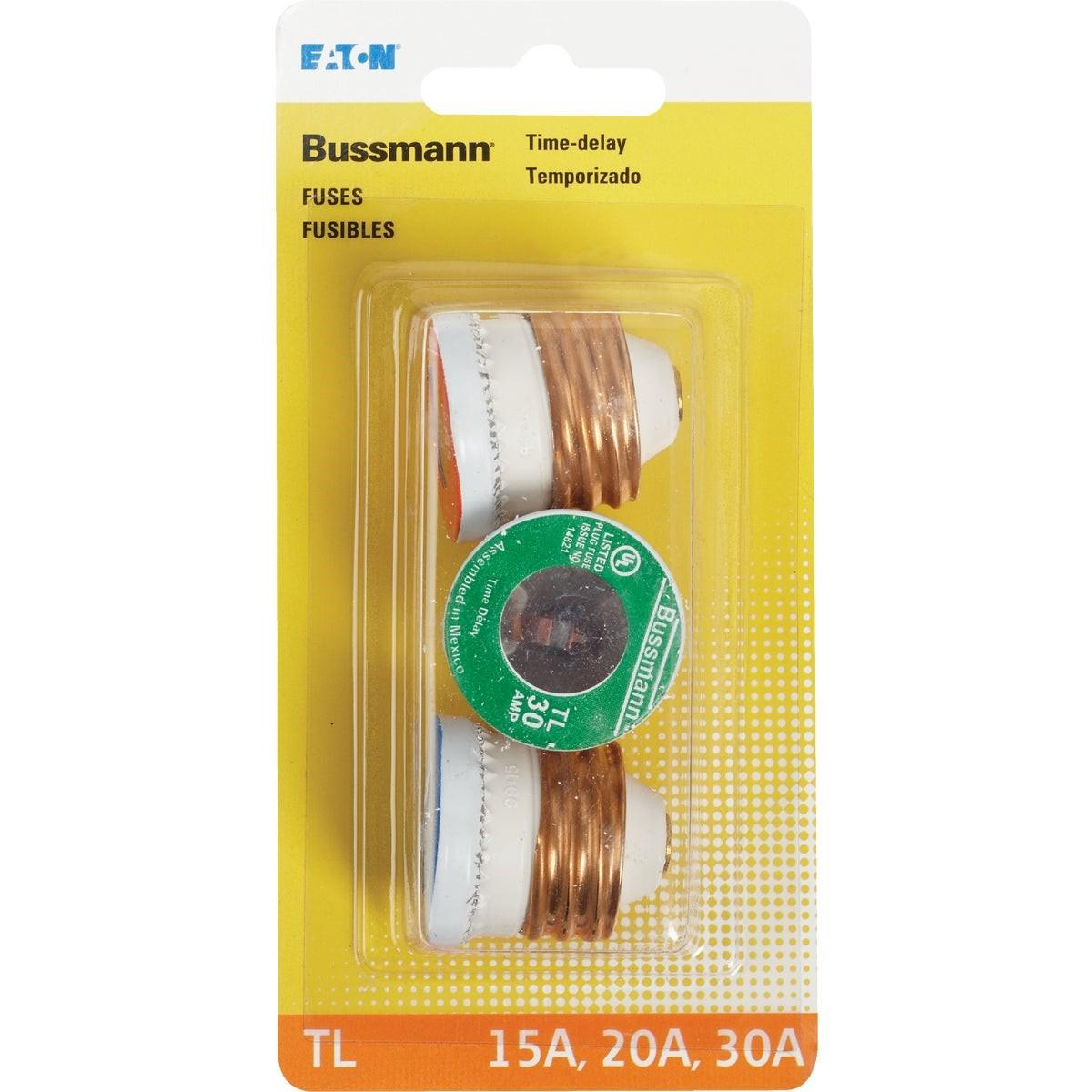

The EATON BP/TL-A is an assortment of medium-duty, time-delay loaded-link TL plug fuses rated for 125 volts AC with a 10,000 ampere interrupting capacity (AIC). The pack includes 15A, 20A, and 30A fuses designed to protect residential branch circuits that power electric motors, relays, and solenoids. Each fuse features a brass Edison base that threads directly into standard fuse receptacles. An extra-large clear window allows for fast visual inspection to confirm whether the fuse has opened. UL listed for safety compliance.

These fuses are suited for residential electrical panels and sub-panels serving kitchen appliances, workshop equipment, garage circuits, and utility room loads. The time-delay characteristic allows motor inrush current to pass during startup without nuisance opening, then responds to sustained overloads or short-circuit faults. The assortment format makes these useful for service technicians stocking a range of common amperage ratings for residential service calls.

Key Features

• Time-delay design accommodates motor inrush current without nuisance tripping
• Loaded-link TL construction provides reliable overcurrent protection
• Brass Edison base threads into standard residential fuse receptacles
• Extra-large clear window for quick visual blown-fuse identification
• Rated 125 volts AC with 10,000 AIC interrupting capacity
• UL listed for residential branch-circuit protection

Compatibility

Designed for use in standard Edison-base fuse receptacles in residential electrical panels and load centers. Suitable for branch circuits protecting electric motors, relays, and solenoids in kitchens, workshops, garages, and utility rooms.

Installation Notes

Fuse replacement and panel work must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always shut off the main disconnect and verify the circuit is de-energized before removing or installing fuses. Do not substitute a higher-amperage fuse for the value required by the circuit. Confirm the panel is rated for Edison-base plug fuses before installation.

Technical Specifications

• Amperage Ratings Included: 15A, 20A, 30A
• Voltage Rating: 125 volts AC
• Interrupting Capacity: 10,000 AIC
• Fuse Type: Time-delay loaded-link TL plug fuse
• Base Type: Brass Edison base
• Certifications: UL Listed
• Package Weight: 0.178 pounds
• Unit of Measure: Pack

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/TL-A
