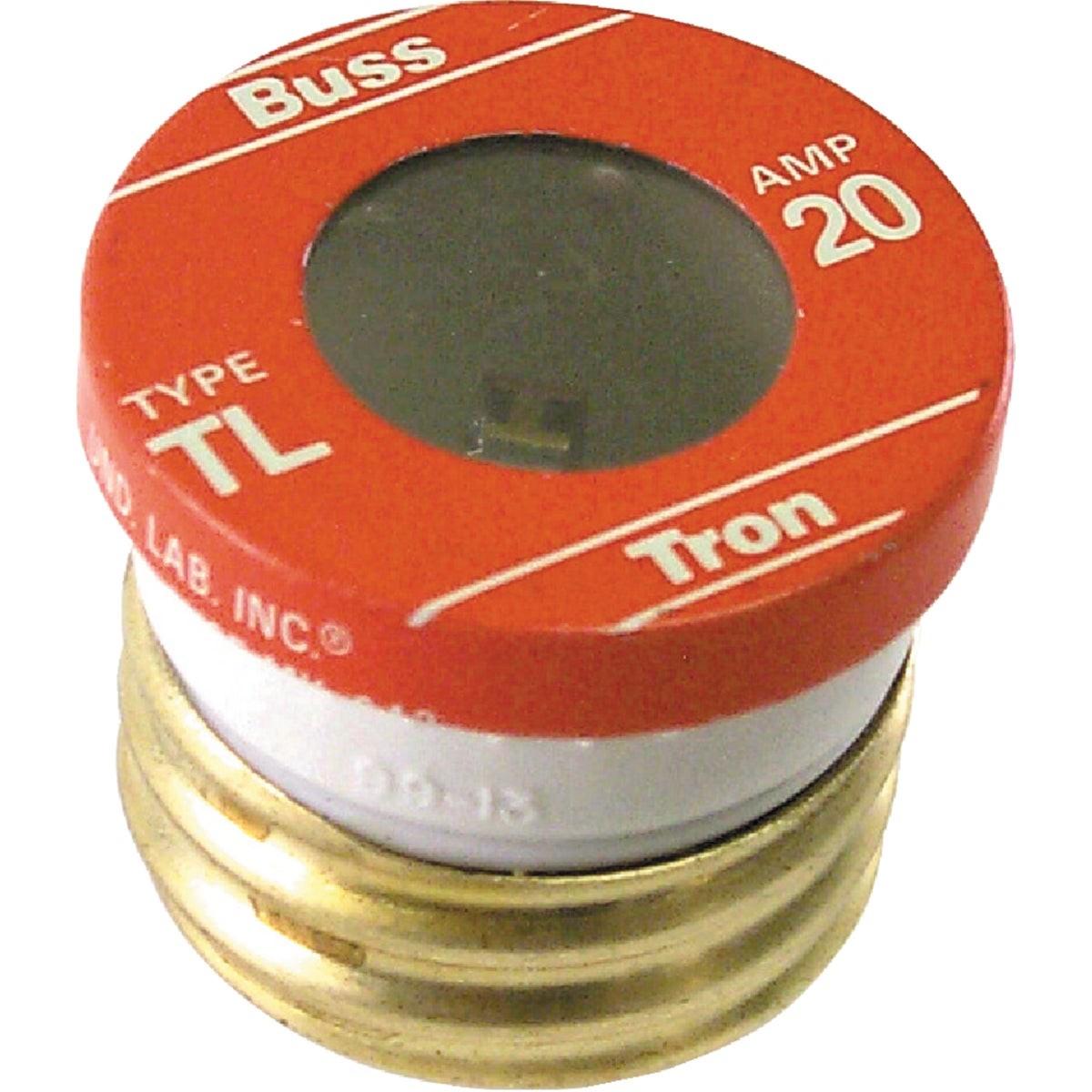

Eaton BP/TL-20 Time-delay Plug Fuse 20A 125V 3-pack

Product Description

The EATON BP/TL-20 is a medium-duty, time-delay plug fuse rated at 20 amps and 125 volts AC, sold in a 3-pack. It uses a loaded-link design that allows temporary current surges — common during motor startup — without nuisance tripping, while still providing reliable overcurrent protection. The Edison base (brass threads) fits standard residential fuse receptacles. An extra-large clear window lets technicians and installers quickly verify fuse condition without removal. This fuse is rated for 10,000 amperes interrupting capacity (AIC) and carries UL listing. It is installed by licensed electricians and qualified service technicians working on residential electrical systems.

The BP/TL-20 is suited for residential branch circuits that serve electric motors, relays, and solenoids. Typical applications include kitchen appliances, workshop equipment, garage circuits, and utility room circuits where motor loads create inrush current on startup. The time-delay characteristic prevents unnecessary fuse replacements caused by normal motor starting surges, making it a practical choice for circuits that cycle frequently.

Key Features

• Time-delay loaded-link design handles motor inrush current without nuisance tripping
• Rated 20 amps at 125 volts AC
• 10,000 AIC interrupting capacity for residential branch circuit protection
• Edison base with brass threads fits standard fuse receptacles
• Extra-large clear window allows fast visual inspection of fuse status
• UL listed for use in residential motor and appliance circuits
• Sold as a 3-pack for convenient on-hand spares

Compatibility

Designed as an OEM-style replacement for standard Edison base (Type TL) fuse holders used in residential load centers and fuse panels rated for 125-volt branch circuits.

Installation Notes

Installation and replacement should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off power to the circuit and verify the panel is de-energized before removing or installing fuses. Match the replacement fuse amperage exactly to the circuit rating — never upsize a fuse to resolve a tripping issue. Confirm the fuse holder is rated for Edison base Type TL fuses before installation.

Technical Specifications

• Amperage: 20 amps
• Voltage Rating: 125 volts AC
• Interrupting Capacity: 10,000 AIC
• Fuse Type: Time-delay loaded-link plug fuse
• Base Type: Edison base (brass threads)
• Quantity: 3-pack
• Weight: 0.17 pounds
• Certifications: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/TL-20
