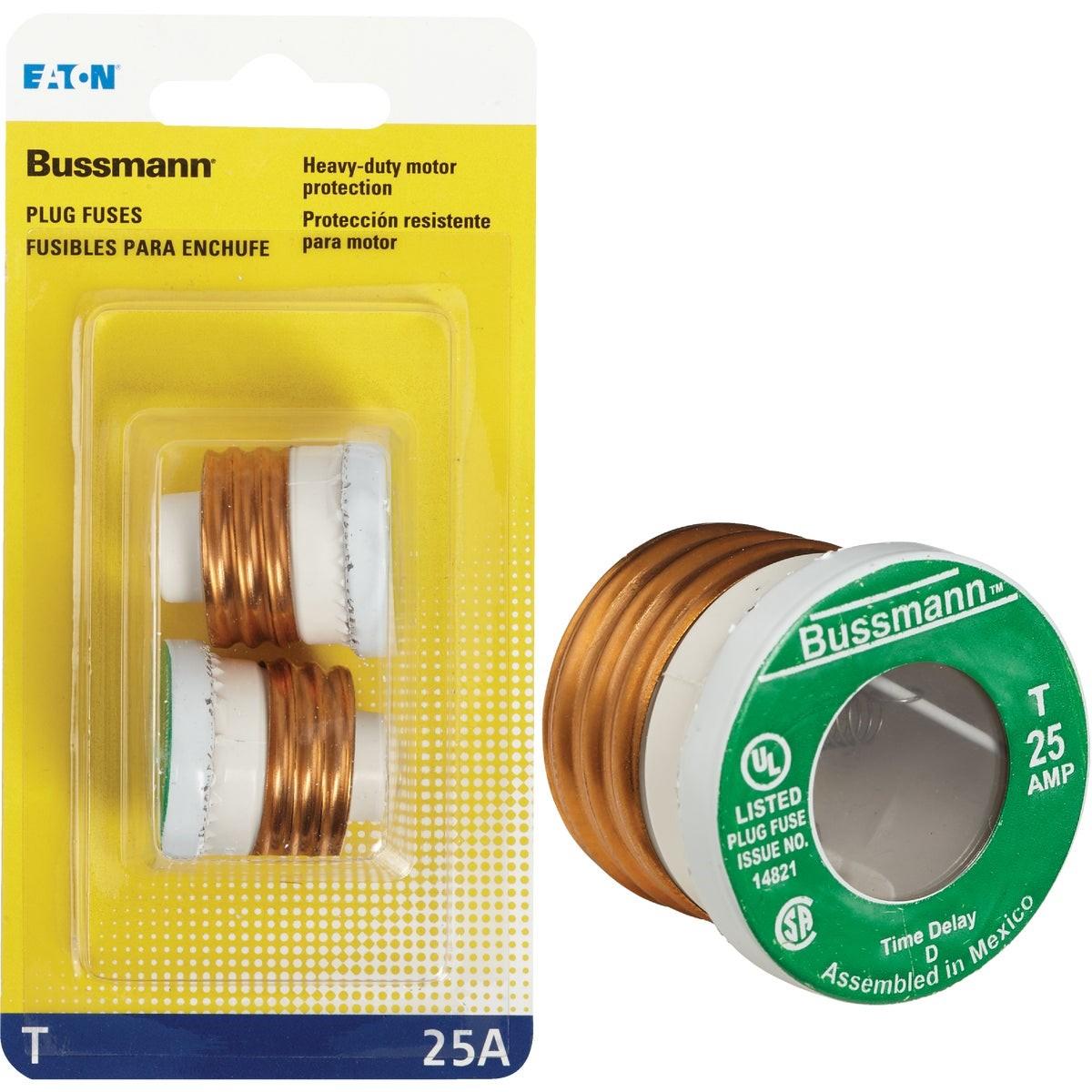

Eaton BP/T-25 25A Time-delay Plug Fuse 2-pack

Product Description

The EATON BP/T-25 is a Fusetron Type-T dual-element, time-delay plug fuse rated at 25 amps and 125 volts AC. It is designed for circuits that experience repeated motor startups, where a standard fuse would open prematurely under the initial inrush current. The dual-element construction separates the overload and short-circuit protection functions, allowing the fuse to hold through normal motor startup while still clearing true faults quickly. An extra-large clear window makes it easy to inspect the fuse condition without removal. This 2-pack is sold as a unit. Installation is handled by licensed electricians or qualified HVAC and pool service technicians.

The BP/T-25 is suited for residential and light commercial applications where motor-driven equipment is protected by Edison-base fuse panels. Typical applications include swamp coolers, air conditioners, furnace blowers, swimming pool pumps, and deep freezers. It is the appropriate choice for any circuit where motors cycle on and off frequently and nuisance tripping of standard plug fuses is a known issue. The brass-threaded Edison base fits standard residential fuse receptacles.

Key Features

• Dual-element, time-delay design tolerates motor inrush current without nuisance opening
• Rated 25 amps at 125 volts AC
• 10,000 AIC interrupting capacity for reliable fault clearing
• Brass-threaded Edison base fits standard fuse receptacles
• Extra-large clear window allows fast visual inspection without removal
• UL listed for Type-T plug fuse applications

Compatibility

Designed as an OEM-style replacement for standard Edison-base fuse holders requiring a Type-T time-delay plug fuse. Suitable for motor circuits in residential and light commercial equipment including swamp coolers, air conditioners, furnace blowers, swimming pool pumps, and deep freezers.

Installation Notes

Installation should be performed by a licensed electrician or qualified trade technician in accordance with NEC requirements for overcurrent protection. Always disconnect power at the main panel and verify the circuit is de-energized before removing or installing a plug fuse. Confirm the fuse receptacle is rated for the Edison base and that the 25-amp, 125-volt rating matches the circuit requirements. Do not substitute a higher-amperage fuse to address nuisance openings without first diagnosing the underlying fault.

Technical Specifications

• Amperage Rating: 25 amps
• Voltage Rating: 125 volts AC
• Interrupting Capacity: 10,000 AIC
• Fuse Type: Type-T Dual-Element Time-Delay Plug Fuse
• Base Type: Edison Base (brass threads)
• Package Quantity: 2-Pack
• Weight: 0.209 pounds
• Certifications: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/T-25
