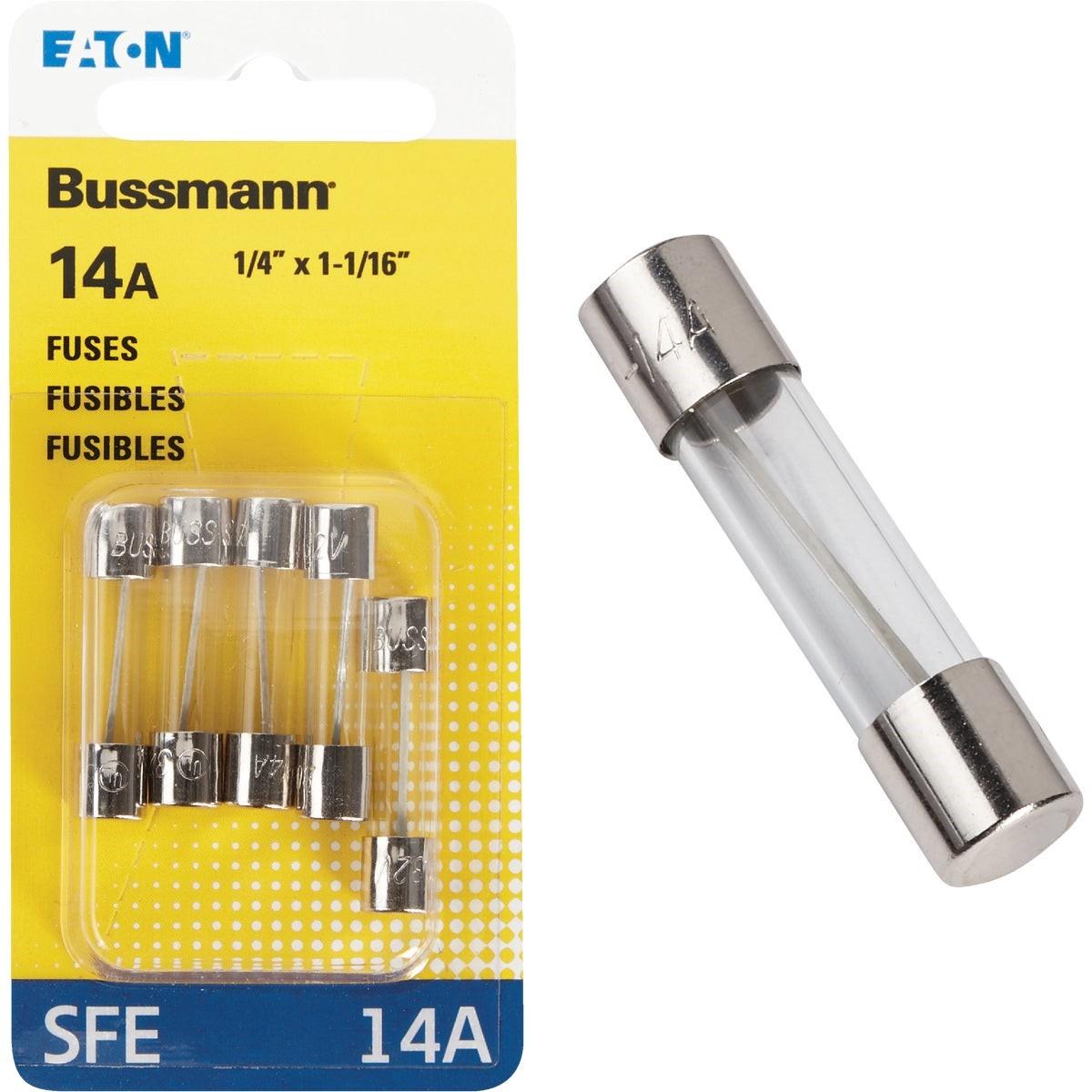

Eaton BP/SFE-14-RP Sfe Glass Tube Automotive Fuse 5 Pack

Product Description

The EATON BP/SFE-14-RP is a 14-amp, 32-volt SFE-style glass tube automotive fuse sold in a 5-pack. SFE fuses are a standard blade-free format used widely in automotive electrical systems for circuit protection. Each fuse features a clear glass tube body with a 0.25-inch diameter, allowing quick visual inspection of the element without removal. At 14 amps and 32 volts, this fuse is suited for protecting low-current automotive circuits where SFE-type fuse holders are already installed. Automotive electricians, fleet technicians, and experienced DIYers install this type as a direct replacement when a fuse fails or during scheduled electrical maintenance.

This fuse is used in passenger vehicles, light trucks, and other 12-volt or 24-volt DC automotive applications that call for SFE-format fuse protection. The SFE glass tube style was common in older domestic vehicle platforms and remains in service across a wide range of fleet and classic vehicles. The 5-pack card format keeps spares on hand for service vans and shop toolboxes, reducing downtime when a replacement is needed during a call or in the field.

Key Features

• 14-amp rating for protection of low-current automotive circuits
• 32-volt DC rating compatible with standard automotive electrical systems
• Glass tube body allows visual element inspection without tools
• 0.25-inch diameter matches standard SFE fuse holder dimensions
• 5-pack card format provides on-hand spares for field service use

Compatibility

Designed as a direct replacement for SFE-14 rated glass tube automotive fuses in vehicles and equipment specifying SFE-format fuse holders at 14 amps and 32 volts.

Installation Notes

Automotive fuse replacement should be performed with the vehicle ignition off and, where possible, the negative battery terminal disconnected to reduce arc risk. Always replace a fuse with one of the same amperage rating — installing a higher-rated fuse can damage wiring and create a fire hazard. Use a fuse puller or needle-nose pliers to remove the spent fuse from its holder. If a replacement fuse fails immediately after installation, the underlying circuit fault must be diagnosed before installing another fuse.

Technical Specifications

• Amperage: 14 amps
• Voltage: 32 volts
• Fuse Type: SFE Glass Tube
• Diameter: 0.25 inches
• Quantity: 5 per pack
• Weight: 0.035 pounds
• UPC: 00051712178440

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/SFE-14-RP
