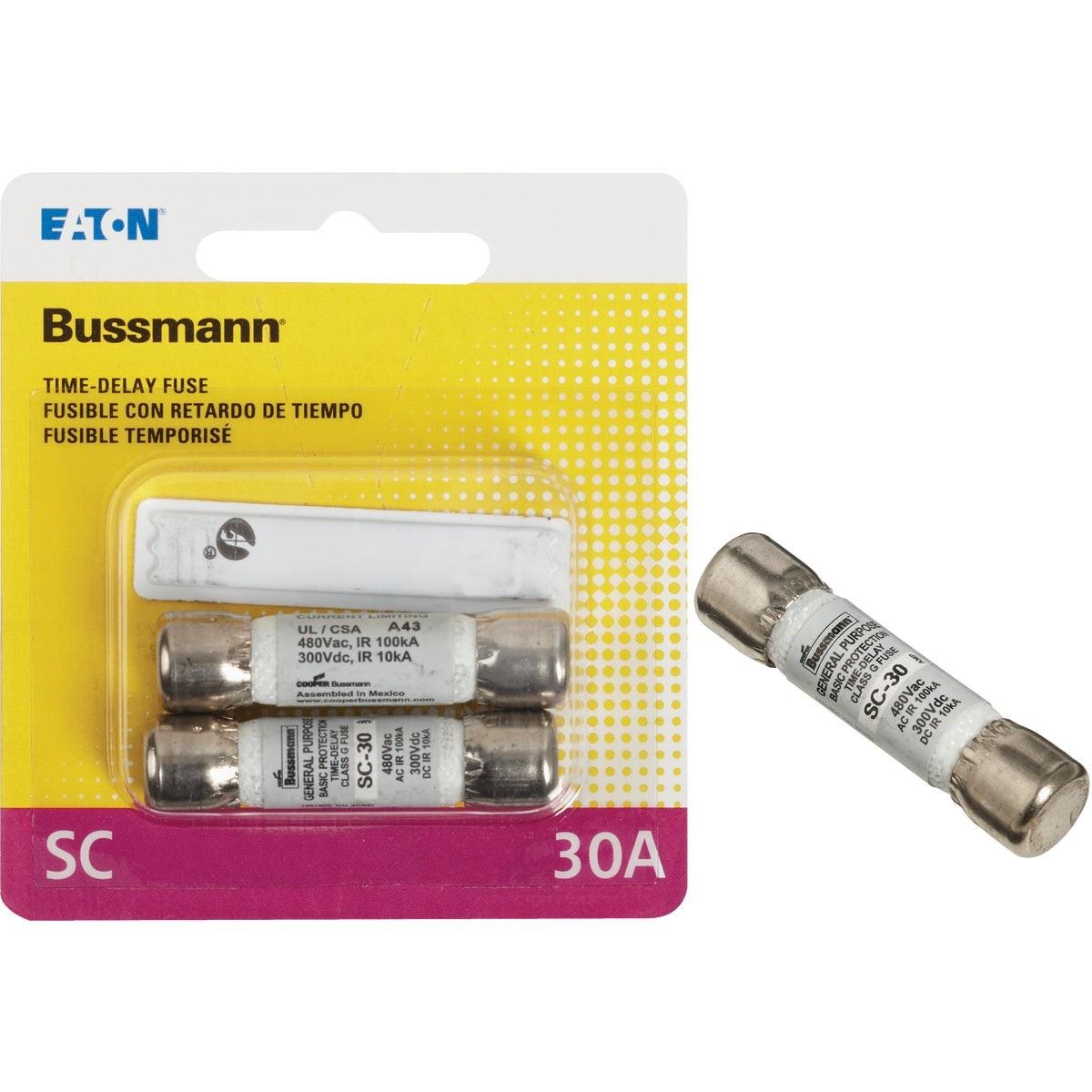

Eaton BP/SC-30 Time Delay Midget Cartridge Fuse 30A

Product Description

The EATON BP/SC-30 is a time delay midget cartridge fuse rated at 30 amps, designed for Class G current-limiting protection in branch-circuit applications. Built with a melamine tube body and nickel-plated brass end caps, it delivers reliable overcurrent protection in a compact midget form factor. The time delay characteristic allows temporary inrush currents to pass without nuisance tripping, making it well-suited for motor loads and transformer primaries commonly found in commercial and light industrial electrical systems. Licensed electricians and MRO technicians handle installation in appropriate midget fuse holders and panelboards.

This fuse is intended for branch-circuit applications requiring Class G current-limiting protection. The 2-pack configuration is practical for service calls and small panel work where having a spare on hand reduces downtime. Typical install scenarios include control panels, machine tools, HVAC equipment disconnect blocks, and other branch-circuit protection points that require a midget-style fuse with time delay action.

Key Features

• 30-amp time delay rating allows motor inrush without nuisance tripping
• Class G current-limiting design for branch-circuit overcurrent protection
• Melamine tube construction provides durability and thermal resistance
• Nickel-plated brass end caps resist corrosion and ensure solid contact
• UL Listed and CSA Listed for use in North American electrical installations
• Sold as a 2-pack for convenient on-site spare availability

Compatibility

Designed as an OEM-style replacement for midget cartridge fuse holders rated for Class G time delay fuses in branch-circuit applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always de-energize and lock out the circuit before removing or installing a fuse. Confirm the fuse holder is rated for midget-style Class G fuses and that the circuit voltage and amperage do not exceed the fuse rating. Do not substitute a fuse of a different class or higher amperage rating.

Technical Specifications

• Amperage: 30 amps
• Fuse Class: Class G Current Limiting
• Fuse Type: Time Delay Midget Cartridge
• Body Material: Melamine Tube
• End Cap Material: Nickel-Plated Brass
• Application: Branch Circuit
• Package Quantity: 2
• Weight: 0.04 pounds
• Certifications: UL Listed, CSA Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/SC-30
