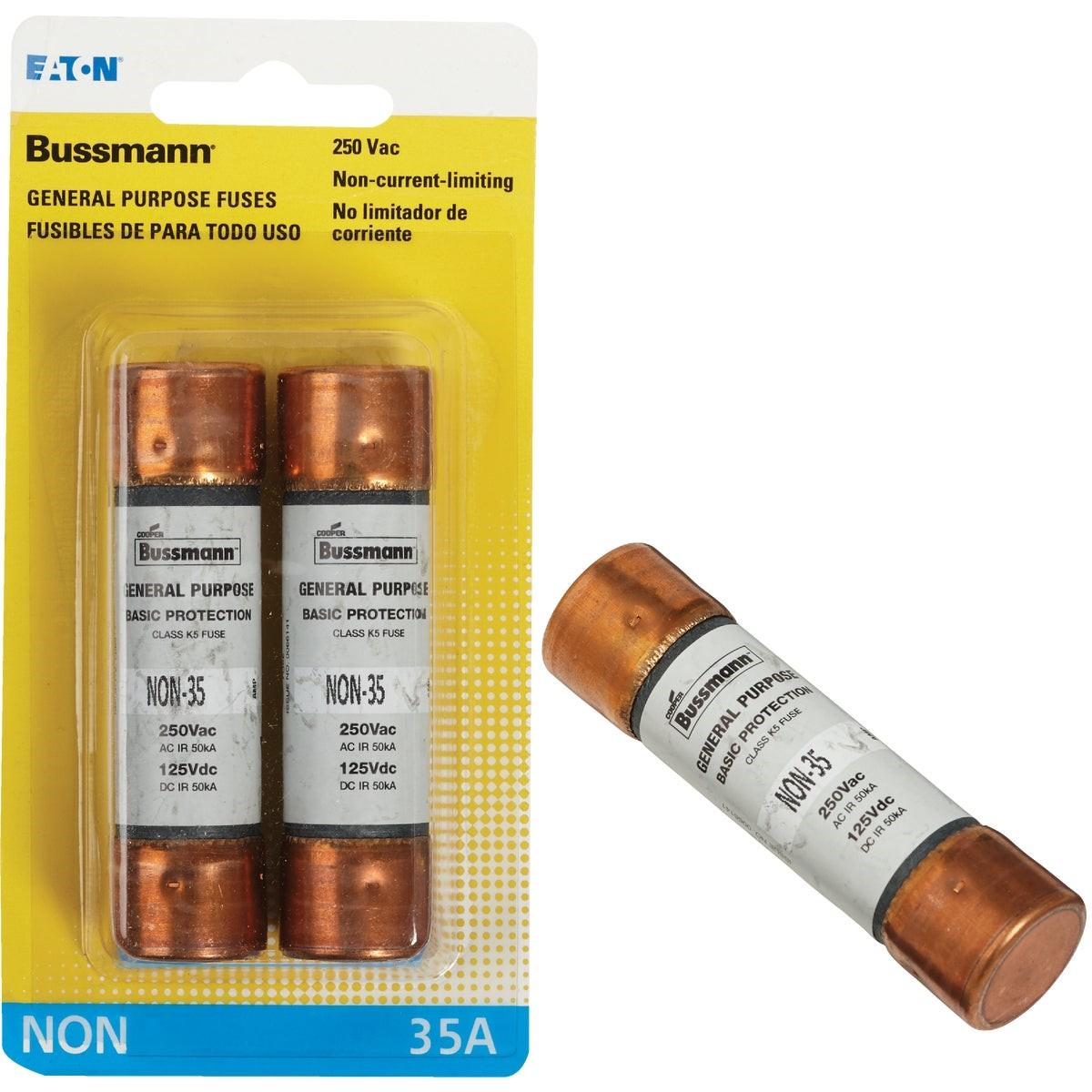

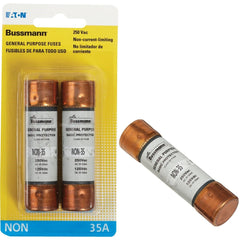

Eaton BP/NON-35 Cartridge Fuse 35A 250V 2-pack

Product Description

The EATON BP/NON-35 is a general-purpose, one-time cartridge fuse rated at 35 amps and 250 volts. It provides overcurrent protection in non-current-limiting applications without a time delay, meaning it opens the circuit immediately upon a fault. The ferrule-end construction is standard for this fuse class and seats securely in compatible fuse holders. This 2-pack is stocked by licensed electricians and maintenance technicians who service lighting circuits and distribution panels. UL Listed Class K5 with a 50,000 ampere interrupting rating (AIR), it meets the interrupting capacity required for most commercial and residential branch-circuit protection work.

The BP/NON-35 is suited for non-current-limiting lighting circuits and main panel protection. It is not intended for circuits with large electric motors, which require time-delay fuses to handle inrush current. Typical installations include lighting branch circuits, feeder protection in load centers, and general-purpose distribution equipment where a fast-acting, non-time-delay fuse is the correct specification. The 2-pack format supports service calls and panel work where having a spare on hand reduces downtime.

Key Features

• 35A continuous current rating at 250 volts AC
• No time delay — fast-acting response to overcurrent faults
• UL Listed Class K5 with 50,000A interrupting rating (AIR)
• Ferrule-end construction for secure seating in standard fuse holders
• Non-current-limiting design for lighting and general branch-circuit use
• Sold as a 2-pack for service and maintenance applications

Compatibility

Designed for use in standard ferrule-type fuse holders and fused disconnects rated for Class K5 cartridge fuses up to 250 volts and 35 amps. Not suitable for motor-circuit or time-delay applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC. De-energize and lock out the circuit before replacing any fuse. Confirm the replacement fuse matches the circuit's ampere rating, voltage rating, and fuse class before installation. Do not substitute a higher-amperage fuse for a blown one.

Technical Specifications

• Ampere Rating: 35 amps
• Voltage Rating: 250 volts
• Fuse Class: Class K5
• Interrupting Rating: 50,000 AIR
• Time Delay: None (fast-acting)
• Terminal Type: Ferrule ends
• Listing: UL Listed
• Package Quantity: 2
• Weight: 0.238 pounds

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/NON-35
