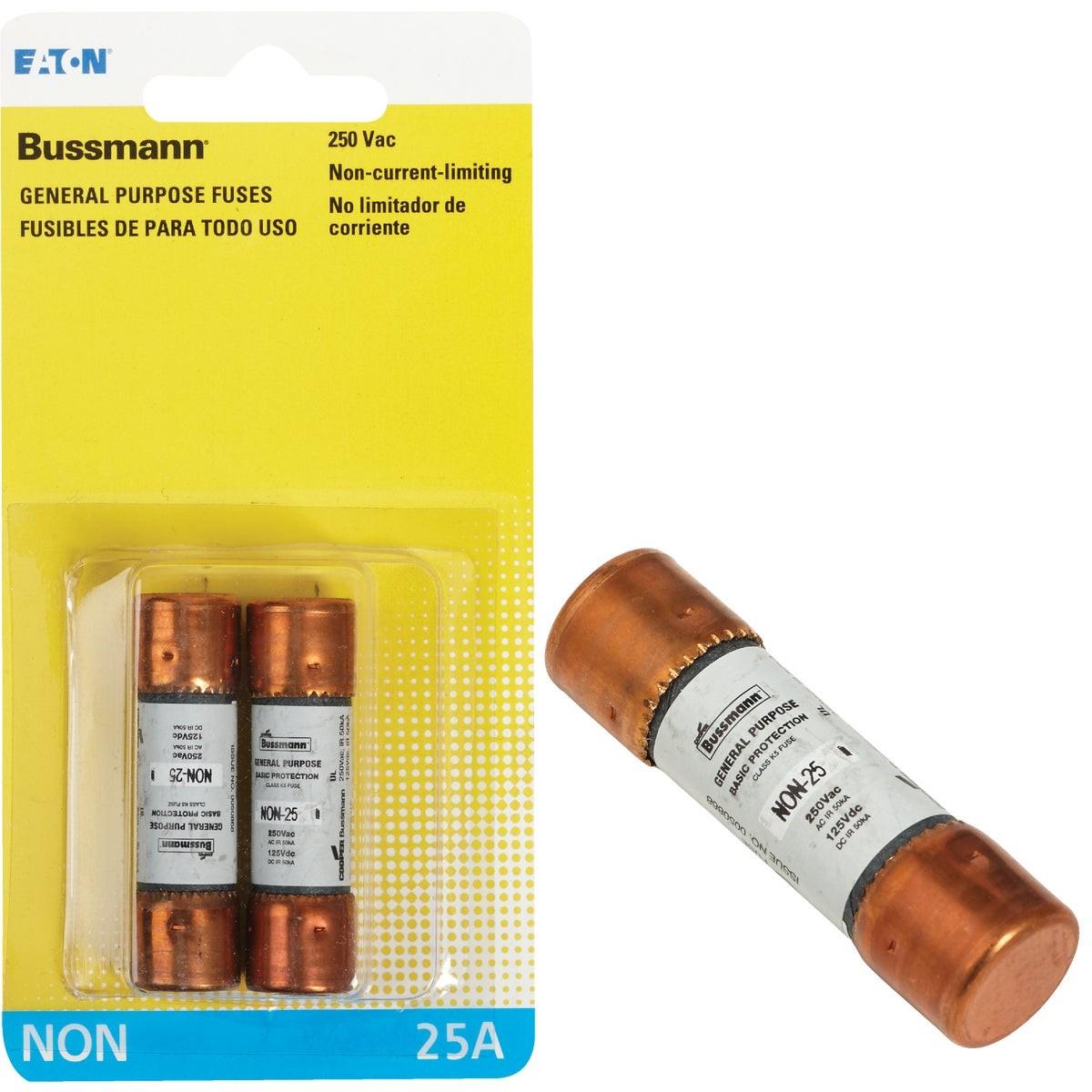

Eaton BP/NON-25 Cartridge Fuse 25A 250V 2-pack

Product Description

The EATON BP/NON-25 is a one-time, non-current-limiting cartridge fuse rated at 25 amps and 250 volts. It carries a UL Class K5 listing with a 50,000 ampere interrupting rating (AIR) and features ferrule ends for secure fuse holder engagement. This fuse provides no time delay, meaning it opens immediately on an overcurrent condition. Electricians and maintenance technicians install it in branch circuit and main panel applications where motor loads are absent and straightforward overcurrent protection is required. The BP/NON-25 is sold as a 2-pack.

This fuse is suited for residential and light commercial electrical systems. Typical applications include non-motor lighting circuits, feeder protection, and general branch circuit protection in load centers and disconnect switches. Because it carries no time delay, it is not appropriate for circuits with large inductive motor loads that produce high inrush currents at startup. It is a direct-replacement fuse for standard NON-style ferrule fuse holders rated for Class K5 fuses.

Key Features

• 25-amp rating with no time delay for immediate overcurrent response
• 250-volt AC rating suitable for standard branch circuit applications
• UL Listed Class K5 with 50,000 AIR for reliable fault interruption
• Ferrule end construction for secure seating in compatible fuse holders
• One-time fuse design — replace after any overcurrent event
• Sold as a 2-pack for convenient on-hand backup

Compatibility

Designed as an OEM-style replacement for standard NON-series ferrule cartridge fuse holders rated for 250-volt, Class K5 fuses. Not suitable for circuits containing large electric motors or requiring time-delay protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect and lock out power to the circuit before removing or inserting any fuse. Use an appropriate fuse puller rated for the holder size — do not handle ferrule fuses bare-handed while the circuit is energized. Verify the replacement fuse amperage and voltage rating match the circuit requirements before installation.

Technical Specifications

• Amperage Rating: 25 amps
• Voltage Rating: 250 volts
• Interrupting Rating (AIR): 50,000 amps
• Fuse Class: UL Class K5
• Time Delay: None
• Terminal Type: Ferrule ends
• Quantity: 2-Pack
• Weight: 0.101 pounds
• UL Listed: Yes

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/NON-25
