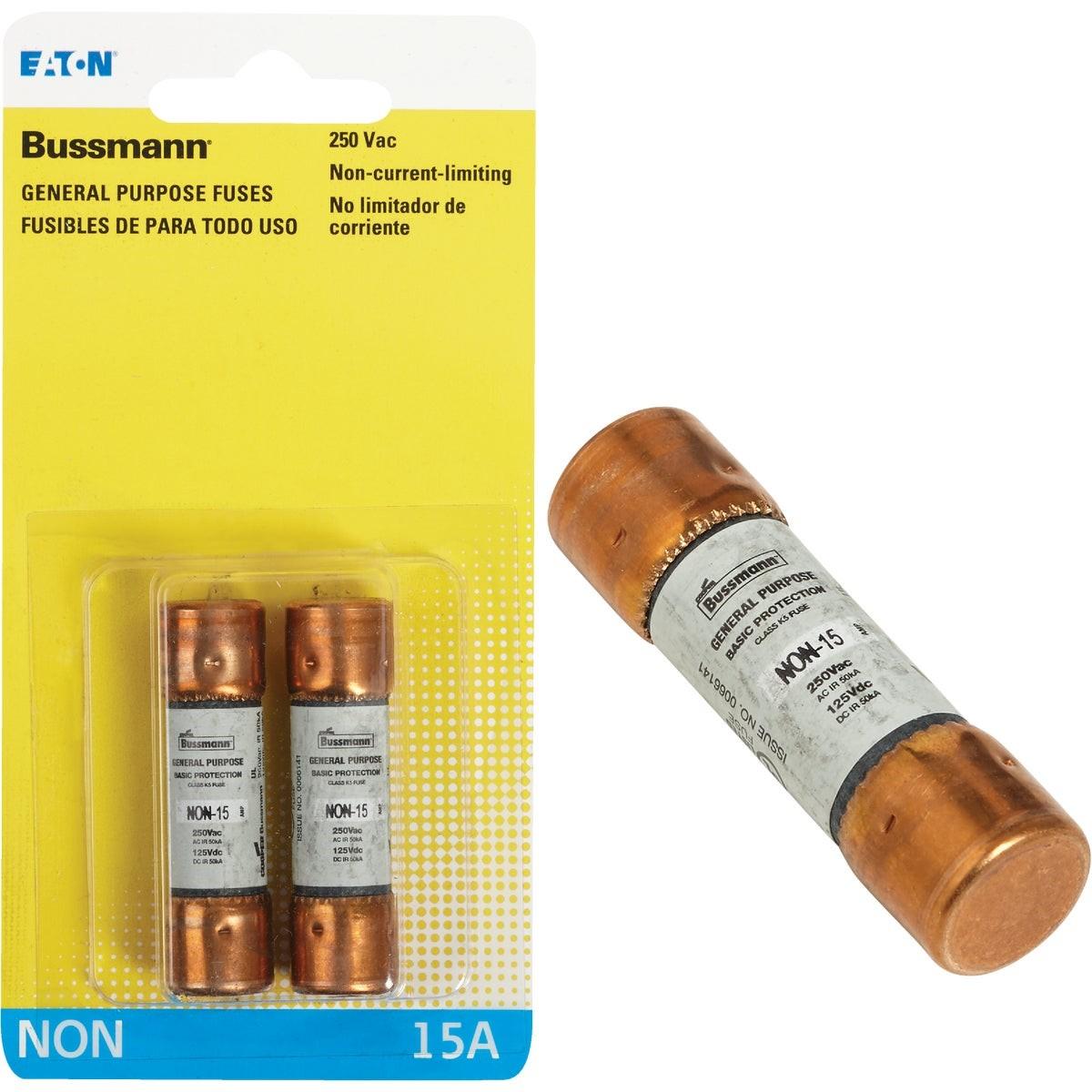

Eaton BP/NON-15 Cartridge Fuse 15A 250V 2-pack

Product Description

The EATON BP/NON-15 is a one-time, non-current-limiting cartridge fuse rated at 15 amps and 250 volts. It is a Class K5 fuse with an interrupting rating of 50,000 amperes (AIR) and features ferrule ends for secure contact in standard fuse holders. Sold as a 2-pack, this fuse carries no time delay, meaning it responds immediately to an overcurrent condition. Licensed electricians and maintenance technicians install this fuse in branch circuits, lighting panels, and service equipment where a straightforward, non-delay overcurrent protective device is required. It is UL listed for reliable code compliance.

This fuse is intended for use in non-current-limiting applications such as lighting circuits, main panel protection, and general branch circuits that do not include large electric motor loads. Motor-start circuits require a time-delay fuse to handle inrush current, making the BP/NON-15 unsuitable for those applications. It is well-suited for residential and light commercial electrical panels where a dependable, fast-acting fuse is needed to protect conductors and equipment from sustained overcurrent conditions.

Key Features

• One-time cartridge fuse with no time delay for immediate overcurrent response
• Rated 15 amps at 250 volts
• Class K5 rating with 50,000 AIR for high fault-current interrupting capacity
• Ferrule ends for compatibility with standard cartridge fuse holders
• UL listed for use in lighting circuits and general-purpose branch circuits
• Sold as a 2-pack for convenient on-hand replacement

Compatibility

Designed for use in non-current-limiting lighting circuits, main panel protection, and general branch circuits that do not serve large electric motor loads. Not suitable for motor-circuit or time-delay fuse applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) requirements. Always de-energize and lock out the circuit or panel before replacing a fuse. Verify that the replacement fuse rating matches the circuit ampacity and voltage requirements before installation. Do not substitute a higher-amperage fuse than the circuit is rated for.

Technical Specifications

• Amperage: 15 amps
• Voltage Rating: 250 volts
• Fuse Class: Class K5
• Interrupting Rating: 50,000 AIR
• Fuse Type: One-time, no time delay
• End Type: Ferrule
• Quantity: 2-pack
• Weight: 0.101 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/NON-15
