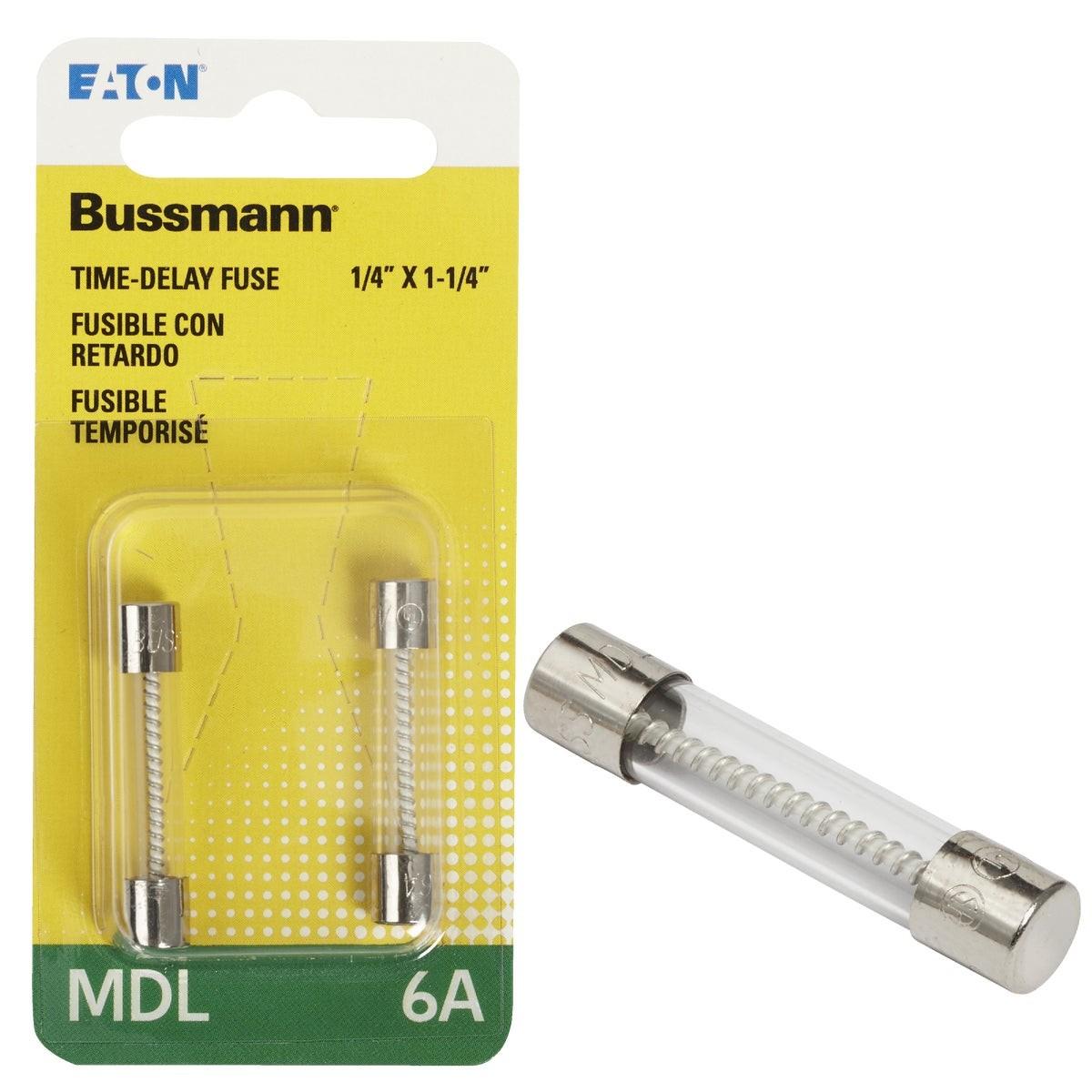

Eaton BP/MDL-6 Mdl Glass Tube Time-delay Fuse 6A 2-pack

Product Description

The EATON BP/MDL-6 is a time-delay (slow-blow) MDL-style glass tube fuse rated at 6 amps, sold in a 2-pack. Time-delay fuses are designed to tolerate brief inrush currents without nuisance blowing, making them the correct choice for loads that draw a surge at startup before settling to steady-state current draw. The fuse body measures 1.25 inches in length and 0.25 inches in diameter, conforming to the standard MDL form factor. This fuse is UL Listed, confirming it has been evaluated to applicable safety standards for use in electronic equipment circuits.

The BP/MDL-6 is commonly used in computers, satellite dishes, and office equipment where a slow-blow fuse is required to handle momentary inrush without opening the circuit prematurely. It is appropriate for low-voltage electronic control circuits found in residential and light commercial applications. Electricians and electronics technicians install this fuse as a direct replacement in equipment fuse holders that accept the standard 1.25-inch by 0.25-inch MDL glass tube format.

Key Features

• Time-delay (slow-blow) design tolerates startup inrush current without nuisance tripping
• 6-amp rating for low-current electronic equipment protection
• Standard MDL glass tube form factor: 1.25 inches long by 0.25 inches in diameter
• UL Listed for compliance with recognized safety standards
• Sold as a 2-pack for convenient on-hand replacement stock

Compatibility

Designed as a direct replacement for standard MDL-style glass tube fuse holders accepting a 1.25-inch by 0.25-inch fuse body, as commonly found in computers, satellite dish equipment, and general office electronics.

Installation Notes

This fuse should be installed by a qualified electrician or electronics technician following applicable NEC guidelines. Always de-energize and unplug the equipment before replacing any fuse. Verify that the replacement fuse matches the original amperage rating and time-delay characteristic specified on the equipment nameplate or service documentation. Never substitute a higher-rated fuse or a fast-blow fuse where a time-delay type is specified.

Technical Specifications

• Amperage Rating: 6 amps
• Fuse Type: Time-Delay (Slow-Blow) MDL Glass Tube
• Length: 1.25 inches
• Diameter: 0.25 inches
• Pack Quantity: 2
• Weight: 0.035 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/MDL-6
