Eaton BP/MDL-15 Time-delay Glass Tube Fuse 15A 2-pack

Product Description

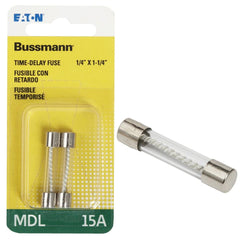

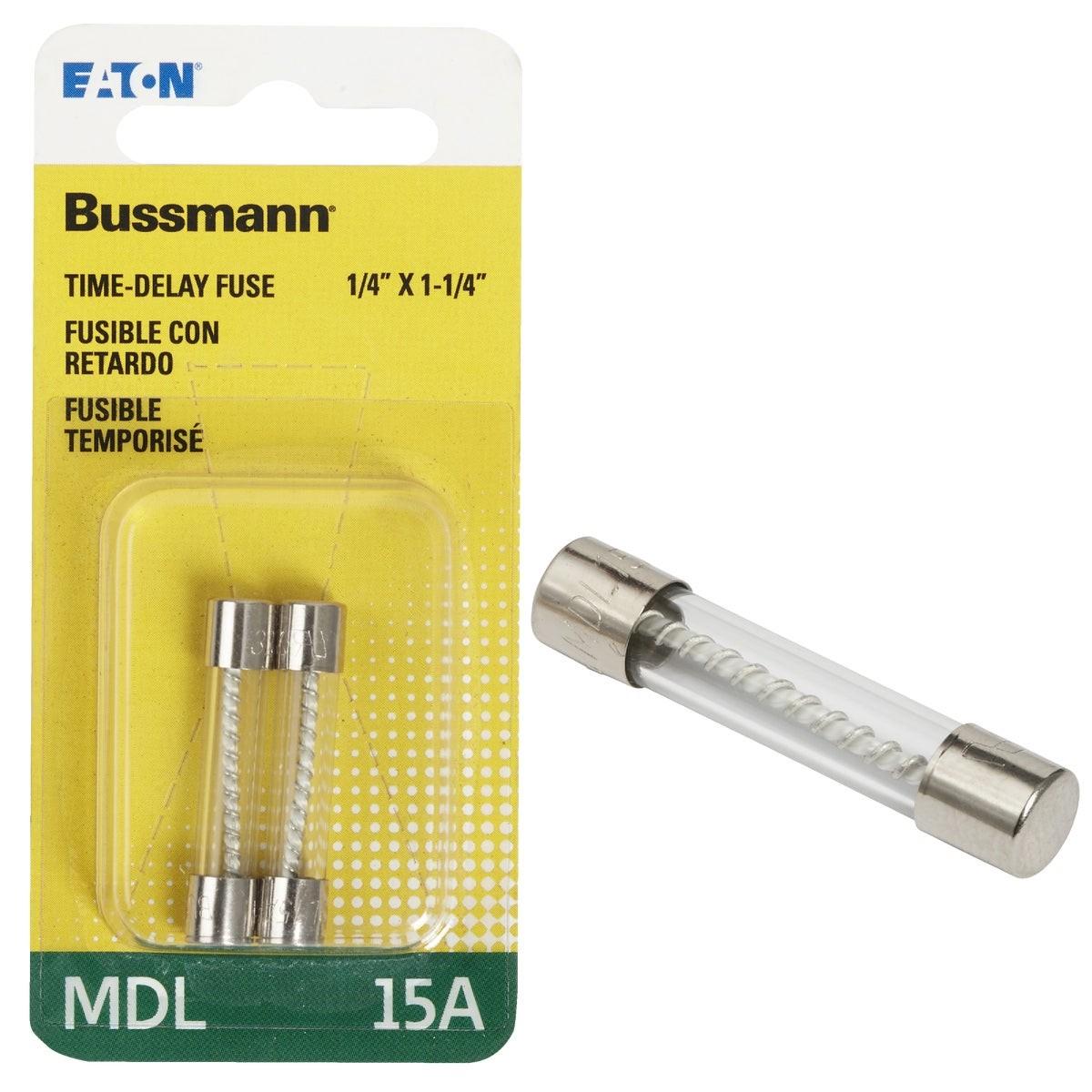

The EATON BP/MDL-15 is a time-delay (slow-blow) MDL-series glass tube fuse rated at 15 amps, sold in a 2-pack. Time-delay fuses are designed to tolerate brief inrush currents without opening, making them the correct choice where equipment draws a momentary surge at startup. The glass tube body measures 1.25 inches in length and 0.25 inches in diameter, conforming to the standard MDL form factor. The BP/MDL-15 carries a UL listing, confirming it meets recognized safety standards for overcurrent protection. Electricians and electronics technicians install this fuse as a protective element in low-current circuits across a range of electronic and commercial equipment.

This fuse is suited for use in computers, satellite dishes, and office equipment where a standard fast-blow fuse would cause nuisance trips during normal startup inrush. The MDL glass tube format is widely used in panel-mount and inline fuseholders that accept the 1.25 inch by 0.25 inch body size. The 2-pack format supports stocking a spare on the job or in the service kit.

Key Features

• Time-delay (slow-blow) characteristic tolerates startup inrush without nuisance opening
• 15-amp rating for low-current electronic circuit protection
• Standard MDL glass tube body: 1.25 inches long by 0.25 inches diameter
• UL listed for recognized overcurrent protection performance
• 2-pack format provides an immediate spare for service calls

Compatibility

Designed as a direct-replacement MDL-series glass tube fuse for computers, satellite dishes, and office equipment fuseholders that accept a 1.25 inch by 0.25 inch time-delay fuse.

Installation Notes

Always de-energize and unplug the equipment before replacing a fuse. Confirm the replacement fuse rating matches the equipment nameplate or schematic before installation. Use an appropriately rated fuseholder designed for the MDL glass tube form factor. Never substitute a higher-amperage fuse or bypass the fuseholder to restore power.

Technical Specifications

• Amperage Rating: 15 amps
• Fuse Type: Time-Delay (Slow-Blow) MDL Glass Tube
• Length: 1.25 inches
• Diameter: 0.25 inches
• Pack Quantity: 2
• Weight: 0.035 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/MDL-15
