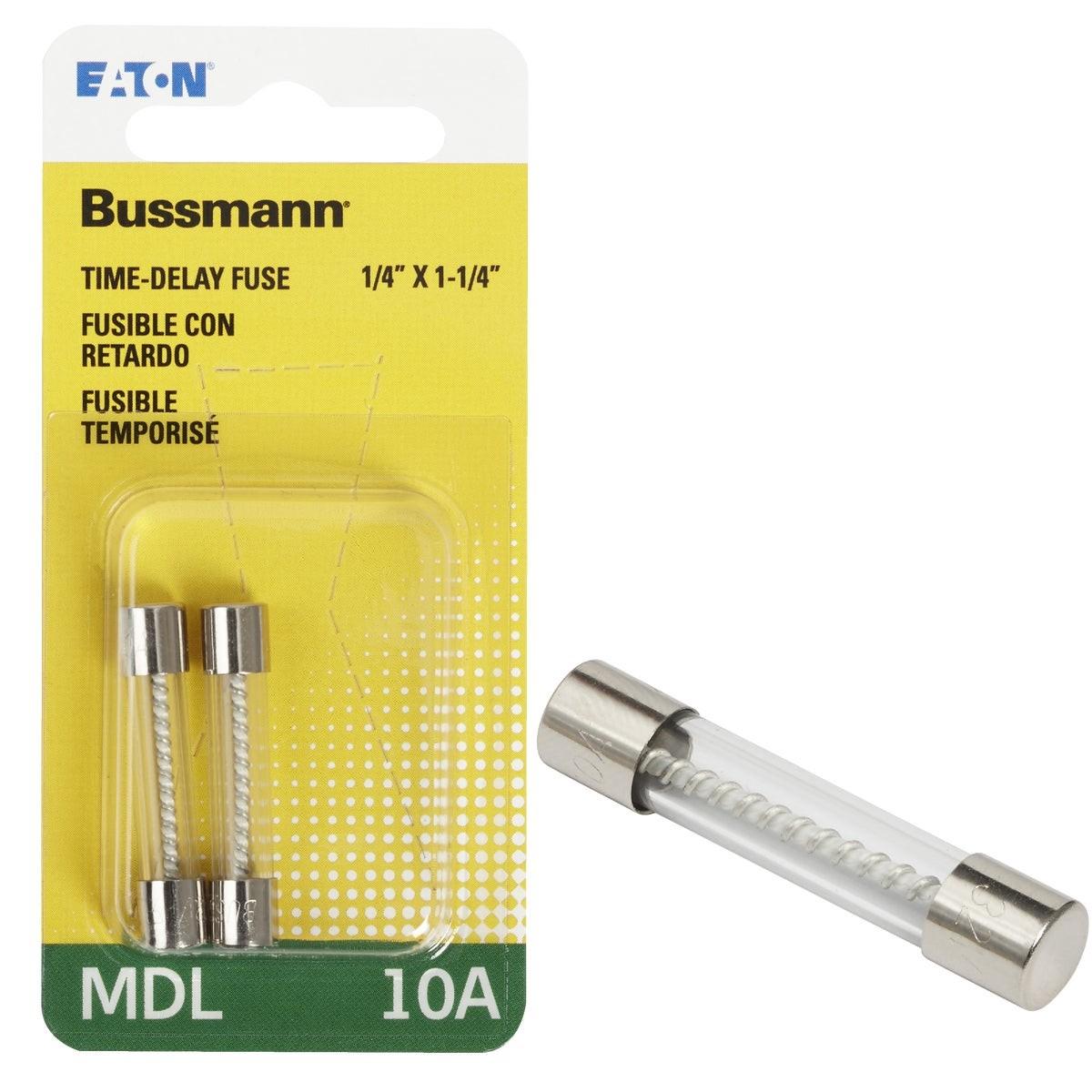

Eaton BP/MDL-10 Time-delay Glass Tube Fuse 10A 2-pack

Product Description

The EATON BP/MDL-10 is a time-delay (slow-blow) MDL-series glass tube fuse rated at 10 amps. Designed for low-voltage electronic circuits, the MDL construction features a glass body measuring 1.25 inches in length and 0.25 inches in diameter. The slow-blow characteristic allows brief inrush currents to pass without nuisance tripping, while still protecting sensitive electronics from sustained overcurrent conditions. This two-pack format is well suited for service calls and bench stock where quick replacements are needed. UL listed for use in electronic equipment applications.

This fuse is intended for use in computers, satellite dish systems, office equipment, and similar low-voltage electronic devices that draw brief startup surge currents. Electricians and electronics service technicians install MDL fuses in fuse holders and fuse blocks found inside control panels, power supplies, and consumer or commercial electronics. The 10A rating covers a broad range of common equipment protection scenarios in both residential and light commercial settings.

Key Features

• Time-delay (slow-blow) action tolerates inrush current without nuisance blowing
• Standard MDL glass tube form factor: 1.25 inches x 0.25 inches
• 10-amp rating for low-voltage electronic circuit protection
• UL listed for electronic equipment applications
• Sold as a 2-pack for convenient field or bench stock replacement

Compatibility

Designed as an OEM-style replacement MDL glass tube fuse for computers, satellite dish systems, and general office equipment requiring a 10A slow-blow fuse in the standard 1.25-inch x 0.25-inch MDL form factor.

Installation Notes

MDL fuses are installed by electricians or qualified electronics service technicians. Always de-energize and disconnect power to the equipment before replacing a fuse. Confirm the replacement fuse amp rating matches the equipment manufacturer specification exactly — substituting a higher-rated fuse can damage equipment and create a fire hazard. NEC guidelines apply to fuse replacement within listed equipment; follow the equipment manufacturer's service documentation.

Technical Specifications

• Amperage: 10 amps
• Fuse Type: Time-Delay (Slow-Blow) MDL Glass Tube
• Length: 1.25 inches
• Diameter: 0.25 inches
• Quantity: 2-Pack
• Weight: 0.023 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/MDL-10
